Page 3

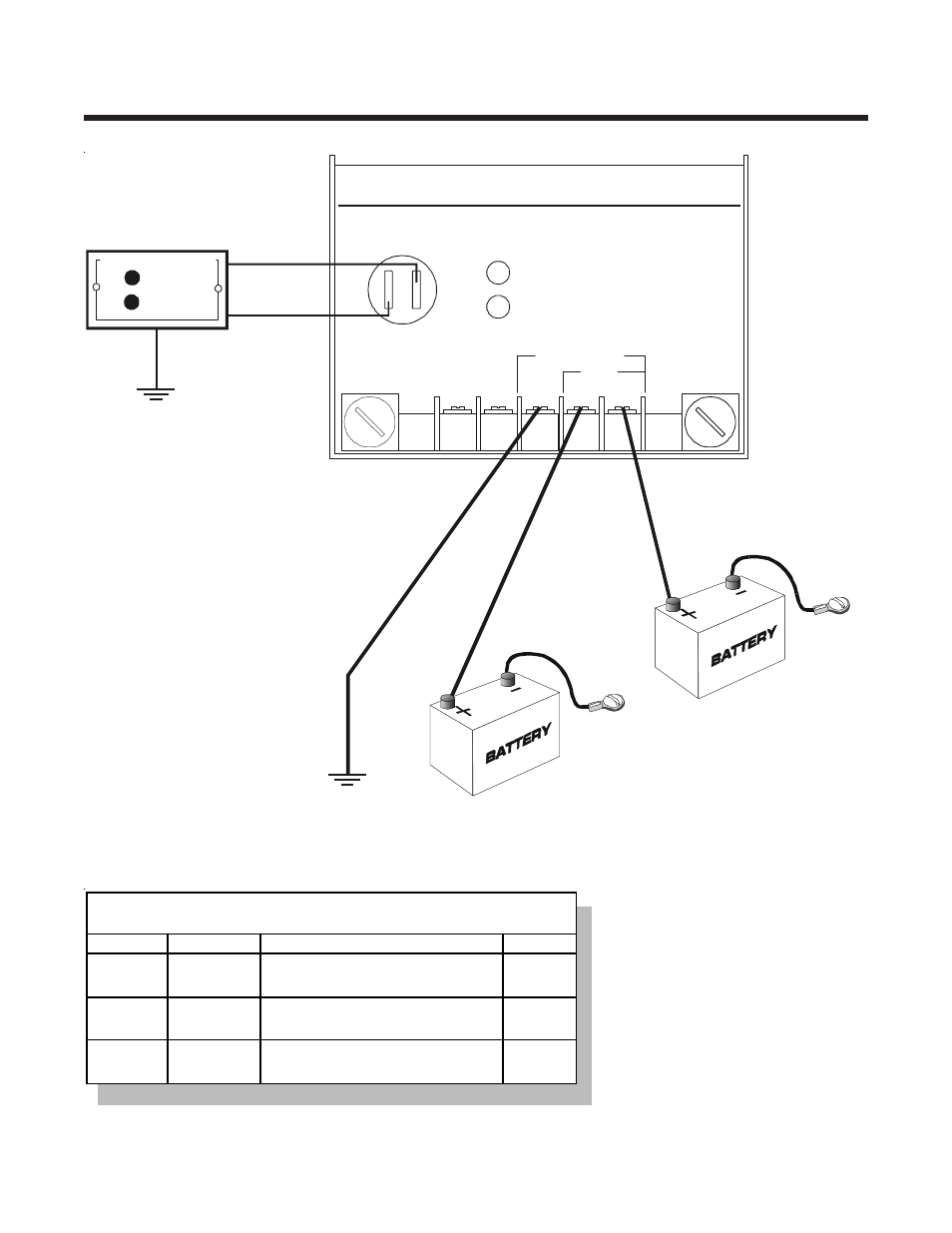

INSTALLATION WIRING DIAGRAM
WIRE SIZE CHART
CONNECTION
ITEM
DEFINITION
WIRE SIZE
COM
BATTERY
COMMON
NEGATIVE CHARGING LEAD
FOR BATTERIES
14 AWG
1
BATTERY
NO.1
POSITIVE CHARGING LEAD
FOR BATTERY # 1
14 AWG
2
BATTERY
NO.2
POSITIVE CHARGING LEAD
FOR BATTERY # 2
14 AWG
IMPORTANT: Wire size is for a
maximum length of 40 feet. If wiring
is to be longer, larger wiring is re-
quired. Additional information is
available on request.
Auto Charge 3
DUAL BATTERY CONDITIONER
REMOTE
Ready
Charge
BATTERIES
POS
COM
1
2
OUTPUT
FUSE 8A
INPUT
FUSE 1A
Chassis
Ground
Chassis
Ground
Ready
Charge
Auto Charge
B
la
c
k
Green
Red
D.C. Output
Fuse to
Batteries
120 VAC
Input Power
Line Fuse
®
