INSTALLATION INSTRUCTIONS
1. Locate a convenient place on the vehicle to mount the AUTO EJECT. A minimum
clearance of 3" behind the mounting panel is required.
2. Place the template in position and center punch in 5 places.
3. Drill 4 mounting holes, 3/16" diameter and one, 1 3/4" clearance hole for the
AUTO EJECT.
4. On the 2 conductor cable the black wire is Connected to the vehicle's ground and the
white wire to the vehicle's brake light system or alternate source of momentary +12VDC.
5. On the 3 conductor cable connect the Green, Black and White power wires to the
accessories on the vehicle.
6. Test installation by installing mating connector into the AUTO EJECT. Apply a brake light
signal command or a momentary source of +12VDC to the white wire of the Auto Eject
Solenoid Power cable and connector will eject from the Auto Eject.
7. Keep connector and contacts of the AUTO EJECT clean. Clean contacts with WD-40
solvent as required. Make certain that WD-40 is dry before returning to service
NOTE THAT WD-40 SOLVENT IS FLAMMABLE AND MAY BE IGNITED BY A SPARK
Lubricate contacts monthly with "vaseline" to insure free operation.
Note: USE ONLY CORD CONNECTOR (PLUG) SUPPLIED WITH THE AUTO EJECT
All connectors are not identical, using a substitute may result in unreliable
operations or failure of the AUTO EJECT to operate.
1234454
6789
1
79 3
1234567
8965796
726
9669
327
788 187
!" # $ $%&'
3 (3
7)
Wiring Diagram SUPER AUTO EJECT
123456278
948
48 63
*3

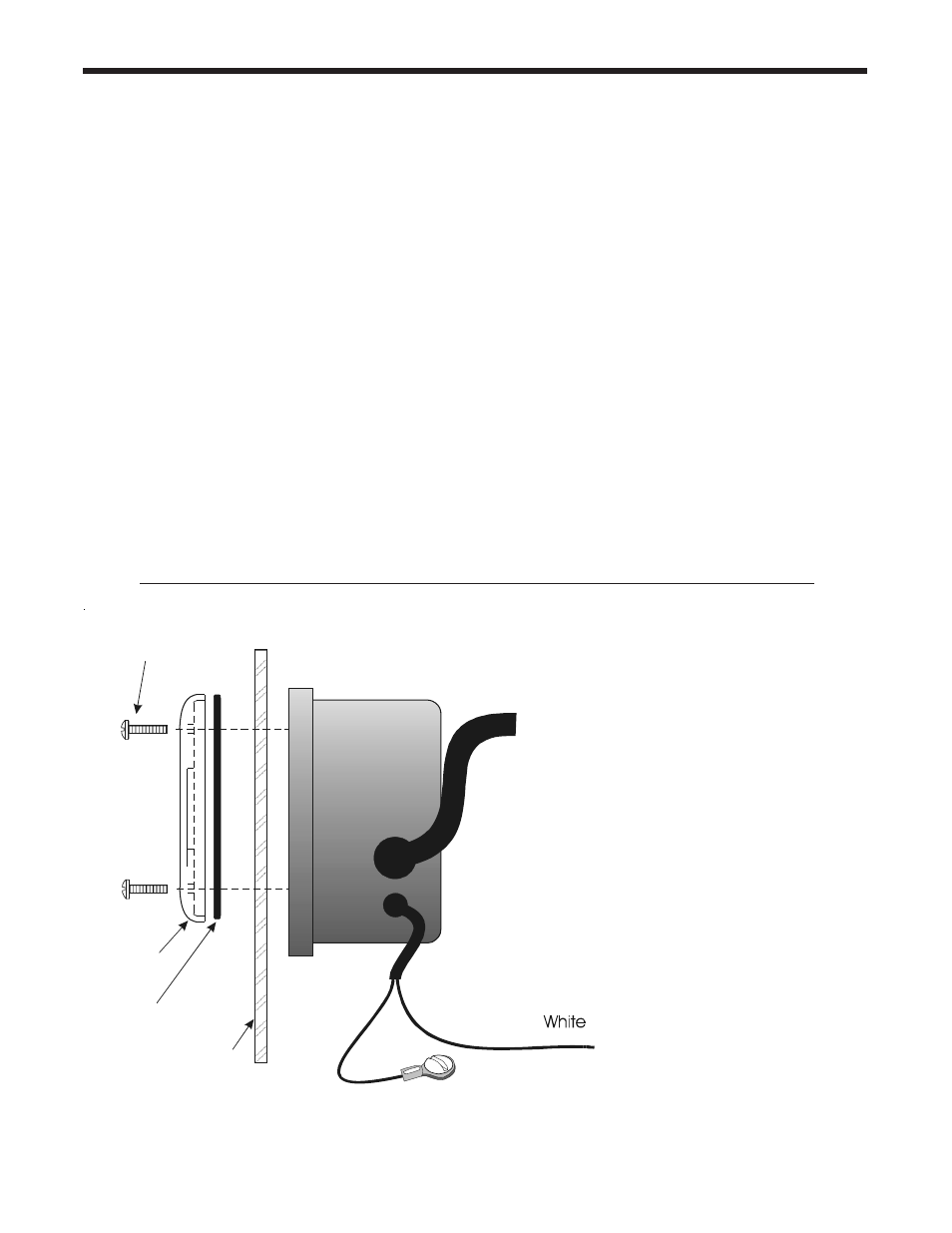

Note: Place the gasket
with the notch at the
bottom when installing
4863
8
67
8
584
452
86
