Page 8

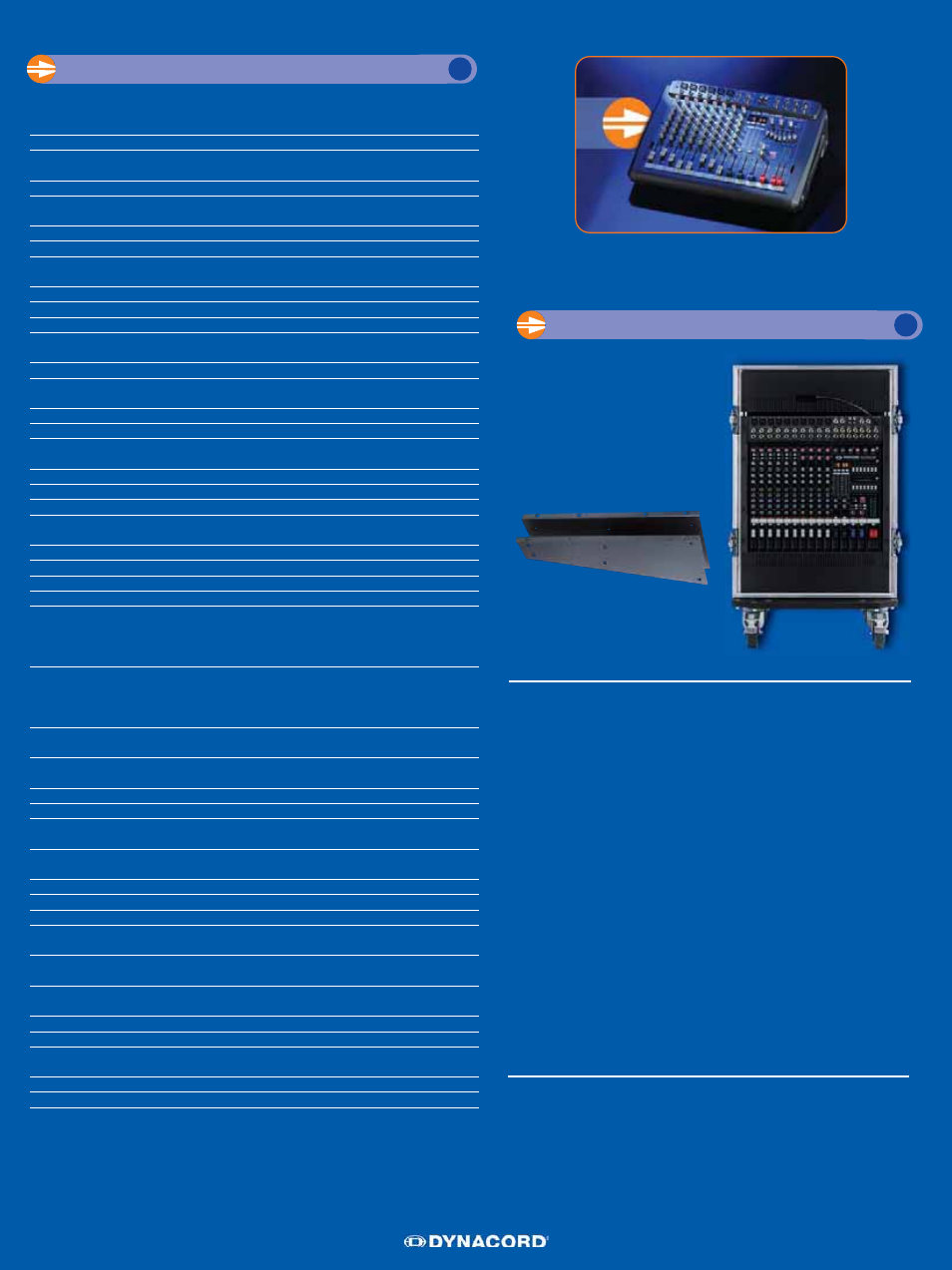

The optional kit RMK-600
(# 112 741) is available for
mounting the PowerMate 600
in a 19” rack. (PowerMate1000
shown in picture)
specs powermate 600
6 MIC/LINE + 2 STEREO LINE
PowerMate600-2 230V #112959
RACK MOUNTING
© EVI Audio GmbH
EVI Audio GmbH
·
Hirschberger Ring 45
·
D-94315 Straubing
Phone: + 49 9421-706 0
·
Fax: + 49 9421-706 265
Art.Nr. 163077
·
Printed in Germany (DOPF/DR)
·
4000/06/08
Internet: http://www.dynacord.com
SUBJECT TO CHANGE WITHOUT PRIOR NOTICE!
Americas
Telex Communications Inc. 12000 Portland Ave South, Burnsville, MN 55337, USA
USA:
Phone: 1-800-392-3497, Fax: 1-800-955-6831
Canada: Phone: 1-866-505-5551, Fax: 1-866-336-8467
Latin America: Phone: 1-952-887-5532, Fax: 1-952-736-4212
Europe, Africa and Middle-East
EVI Audio GmbH. Hirschberger Ring 45, D 94315 Straubing, Germany
Phone: +49 9421-706 0, Fax: +49 9421-706 265
France:
EVI Audio France S.A. Parc de Courcerin, Allée Lech Walesa, F 77185 Lognes,
France. Phone: +33 1-6480-0090, Fax: +33 1-6006-5103
Asia & Pacific Rim
Japan:
EVI Audio Japan Ltd. 5-3-8 Funabashi, Setagaya-Ku, Tokyo, Japan 156-0055
Phone: +81 3-5316-5020, Fax: +81 3-5316-5031
Australia:
EVI Audio (Aust) Pty Ltd. Slough Business Estate, Unit 23, Silverwater, N.S.W. 2128,
Australia. Phone: +61 2-9648-3455, Fax: +61 2-9648-5585
China:
EVI Audio (HK) Ltd. 7th Floor China Minmetals Tower, No. 79 Chatham Road South,
Tsim Sha Tsui, Kowloon, HK. Phone: +852 2351-3628, Fax: +852 2351-3329
Singapore: Telex Pte. Ltd. 3015A Ubi Road 1, 05-10 Kampong Ubi Industrial Estate,
Singapore 408705 Phone: +65 6746-8760, Fax: +65 6746-1206
Maximum Midband Output Power, 1 kHz, THD=1%, Dual Channel
into 4 Ohms
2 x 270 W
into 8 Ohms
2 x 180 W
Maximum Midband Output Power, 1 kHz, THD=1%, Single Channel
into 4 Ohms
2 x 340 W
into 8 Ohms
2 x 200 W
Rated Output Power, THD=0.1%, Single Channel
into 4 Ohms
2 x 300 W
into 8 Ohms
2 x 150 W
Maximum Output Voltage of power amplifier, no load
43 Vrms
THD at 1kHz, MBW=80kHz
MIC input to Main L/R output, +16 dBu, typical
< 0.006%
Power amplifier input to Speaker L/R output
< 0.08%
DIM 30, power amplifier
< 0.03%
IMD-SMPTE, power amplifier, 60Hz, 7 kHz
< 0.2%
Frequency Response, -3dB ref. 1kHz
Any input to any Mixer output
15Hz ... 60kHz
Any input to Speaker L/R output
30Hz ... 40kHz
Crosstalk, 1kHz
Fader and AUX-Send attenuation
> 80 dB
Channel to channel
> 70 dB
CMRR, MIC input, 1kHz
> 80 dB
Input Sensitivity, all level controls in max. position
MIC input
-74 dBu (155 ÌV)
LINE Input (Mono)
-54 dBu (1.55 mV)
LINE Input (Stereo)
-34 dBu (15.5 mV)
Power Amplifier Input
+6 dBu (1.55 V)
Maximum Level, mixing desk
MIC inputs
+ 11 dBu
Line inputs
+ 30 dBu
All other inputs
+ 20 dBu
Record Send output
+ 14 dBu
All other outputs
+ 20 dBu
Input Impedances
MIC
1.8 k
2 Track Return
10 k
All other inputs
> 15 k
Output Impedances
Record Send
1 k
Phones 47
All other outputs
75
Equivalent Input Noise,
MIC Input, A-weighted,150
-130 dBu
Noise, Channel inputs to Main L/R outputs, A-weighted
Master fader down
-90 dBu
Master fader 0 dB, Channel fader down
-89 dBu
Master fader 0 dB, Channel fader 0 dB, Channel gain unity
-83 dBu
Signal/Noise-Ratio,
power amplifier, A-weighted
105 dB
Equalization
LO Shelving
± 15 dB / 60 Hz
MID Peaking
± 15 dB / 2.4 kHz
HI Shelving
± 15 dB / 12 kHz
Master EQ, 7-band, Stereo
± 10 dB
Phantom Power
all MIC inputs
+24 Vdc
Power Requirements
Factory preset, 50 Hz ... 60 kHz
100V, 120V, 230V, 240V
Power Consumption
at 1/8 maximum output power, 4
450 W
Dimensions, (W x H x D), mm
455.5 x 175.8 x 340.6
Weight, including lid
13 kg
Optional
RMK-600 (Rack-Mounting-Kit PowerMate 600)
112 741
Gooseneck lamp, 12V/2.4W, 12”, XLR
112 700
FS11 (Footswitch with LED)
110 693
* Mixing desk in rated condition, Unity Gain (MIC Gain 20 dB), all faders position 0 dB,
all pots in mid position, Master fader + 6dB, amplifier rated output power into 8 ohms,
Dual channel, unless otherwise specified.
