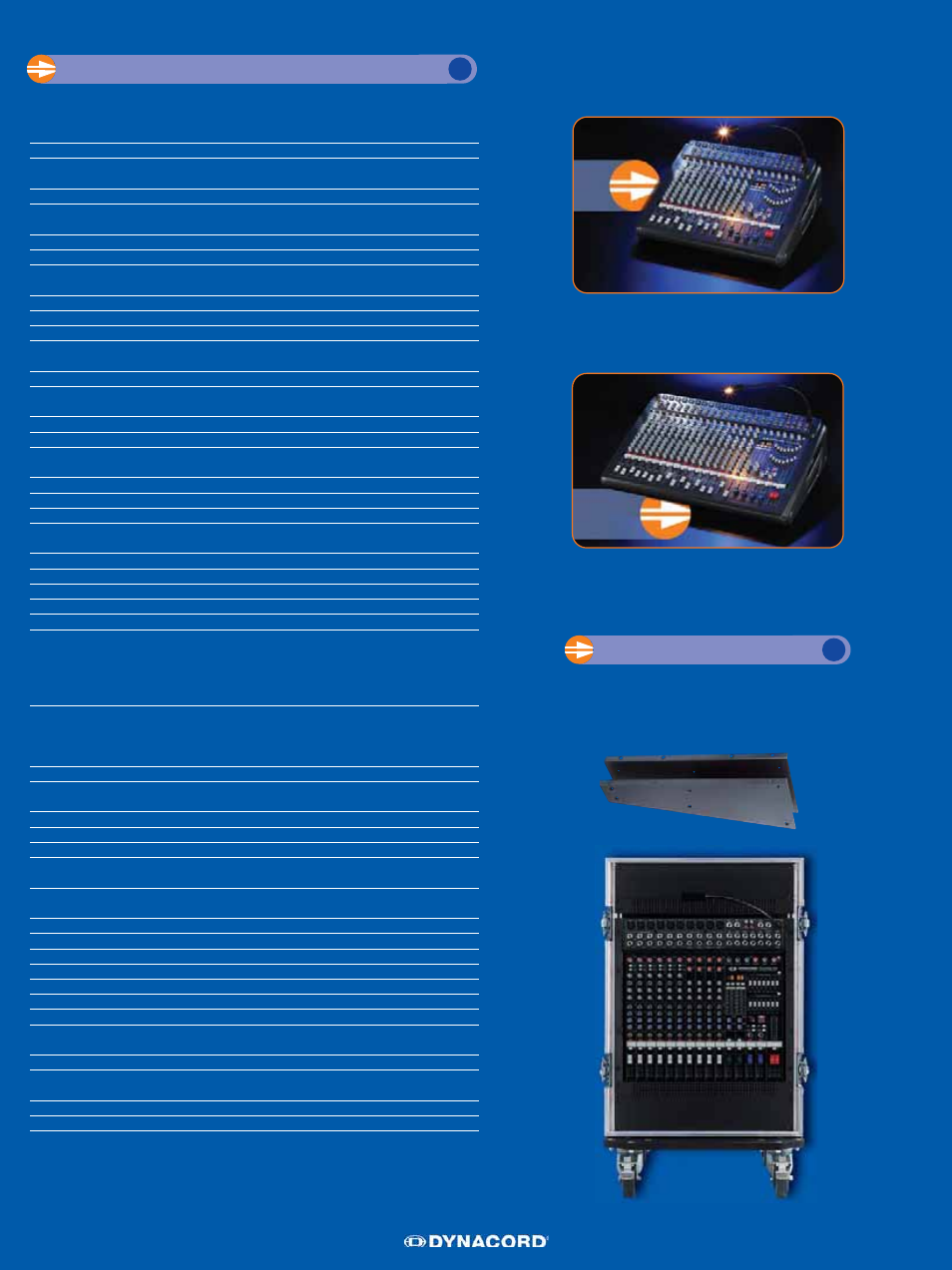

specs PowerMate 1000/1600
6 MIC/LINE+ 4 MIC/STEREO LINE
PowerMate 1000-2 230 V #112926
12 MIC/LINE+ 4 MIC/STEREO LINE
PowerMate 1600-2 230 V #112960
RACK MOUNTING
An optional kit is available for mounting
the PowerMate 1000 in a 19” rack
RMK-1000 (# 112 698)
Maximum Midband Output Power, 1 kHz, THD=1%, Dual Channel
into 4 Ohms
2 x 700 W
into 8 Ohms 2 x 430 W
Maximum Midband Output Power, 1 kHz, THD=1%, Single Channel
into 4 Ohms
2 x 870 W
into 8 Ohms 2 x 500 W
Rated Output Power, THD=0.1%, Single Channel
into 4 Ohms
2 x 700 W
into 8 Ohms 2 x 350 W
Maximum Output Voltage of power amplifier, no load 70 Vrms
THD at 1kHz, MBW=80kHz
MIC input to Main L/R output, +16 dBu, typical
< 0.005%
Power amplifier input to Speaker L/R output < 0.01%
DIM 30, power amplifier < 0.01%
IMD-SMPTE, power amplifier, 60Hz, 7 kHz < 0.01%
Frequency Response, -3dB ref. 1kHz
Any input to any Mixer output
15Hz ... 80kHz
Any input to Speaker L/R output 20Hz ... 70kHz
Crosstalk, 1kHz
Fader and AUX-Send attenuation
> 85 dB
Channel to channel > 80 dB
CMRR, MIC input, 1kHz > 80 dB
Input Sensitivity, all level controls in max. position
MIC input
-74 dBu (155 ÌV)
LINE Input (Mono) -54 dBu (1.55 mV)
LINE Input (Stereo) -34 dBu (15.5 mV)
Power Amplifier Input +6 dBu (1.55 V)
Maximum Level, mixing desk
MIC inputs
+ 21 dBu
Mono Line inputs + 41 dBu
Stereo Line inputs + 30 dBu
All other inputs + 22 dBu
Record Send output + 14 dBu
All other outputs + 22 dBu
Input Impedances
MIC
2 k Ÿ
Insert Return 2.2 k Ÿ
EQ Input and 2 Track Return 8 k Ÿ
All other inputs > 15 k Ÿ
Output Impedances
Record Send
1 k Ÿ
Phones 47 Ÿ
All other outputs 75 Ÿ
Equivalent Input Noise, MIC Input, A-weighted,150 Ÿ -130 dBu
Noise, Channel inputs to Main L/R outputs, A-weighted 1000 1600
Master fader down
-95 dBu -95 dBu
Master fader 0 dB, Channel fader down -90 dBu -88 dBu
Master fader 0 dB, Channel fader 0 dB, Channel gain unity -83 dBu -82 dBu
Signal/Noise-Ratio, power amplifier, A-weighted 105 dB
Equalization
LO Shelving
± 15 dB / 60 Hz
MID Peaking, mono inputs ± 15 dB /
100 Hz .. .8 kHz
MID Peaking, stereo inputs ± 12 dB / 2.4 kHz
HI Shelving ± 15 dB / 12 kHz
Master EQ, 2x7-band, 63, 125, 400, 1k, 2k5, 6k, 12k Hz ± 10 dB / Q=2.0
Power Consumption at 1/8 maximum output power, 4 Ÿ 640 W
Dimensions, (W x H x D), mm
PM1000
514.5 x 210.3 x 478.7
PM1600 673.5 x 210.3 x 478.7
Weight, without lid / including lid
PM1000
20 kg / 21 kg
PM1600 23.5 kg / 25 kg
Optional
RMK-1000 (Rack-Mounting-Kit PowerMate 1000)
112 698
Gooseneck lamp, 12V/2.4W, 12”, XLR 112 700
FS11 (Footswitch with LED) 110 693
* Mixing desk in rated condition, Unity Gain (MIC Gain 20 dB), all faders position 0 dB,
all pots in mid position, Master fader + 6dB, amplifier rated output power into 8 ohms,
Dual channel, unless otherwise specified.
