5. CONTROLS AND INDICATORS
5.1 CONTROLS AND SWITCHES
NOTE
This section defines each control of the transceiver. For detailed oper-
ating instructions, refer to section “ 6 BASIC OPERATION”. Refer to

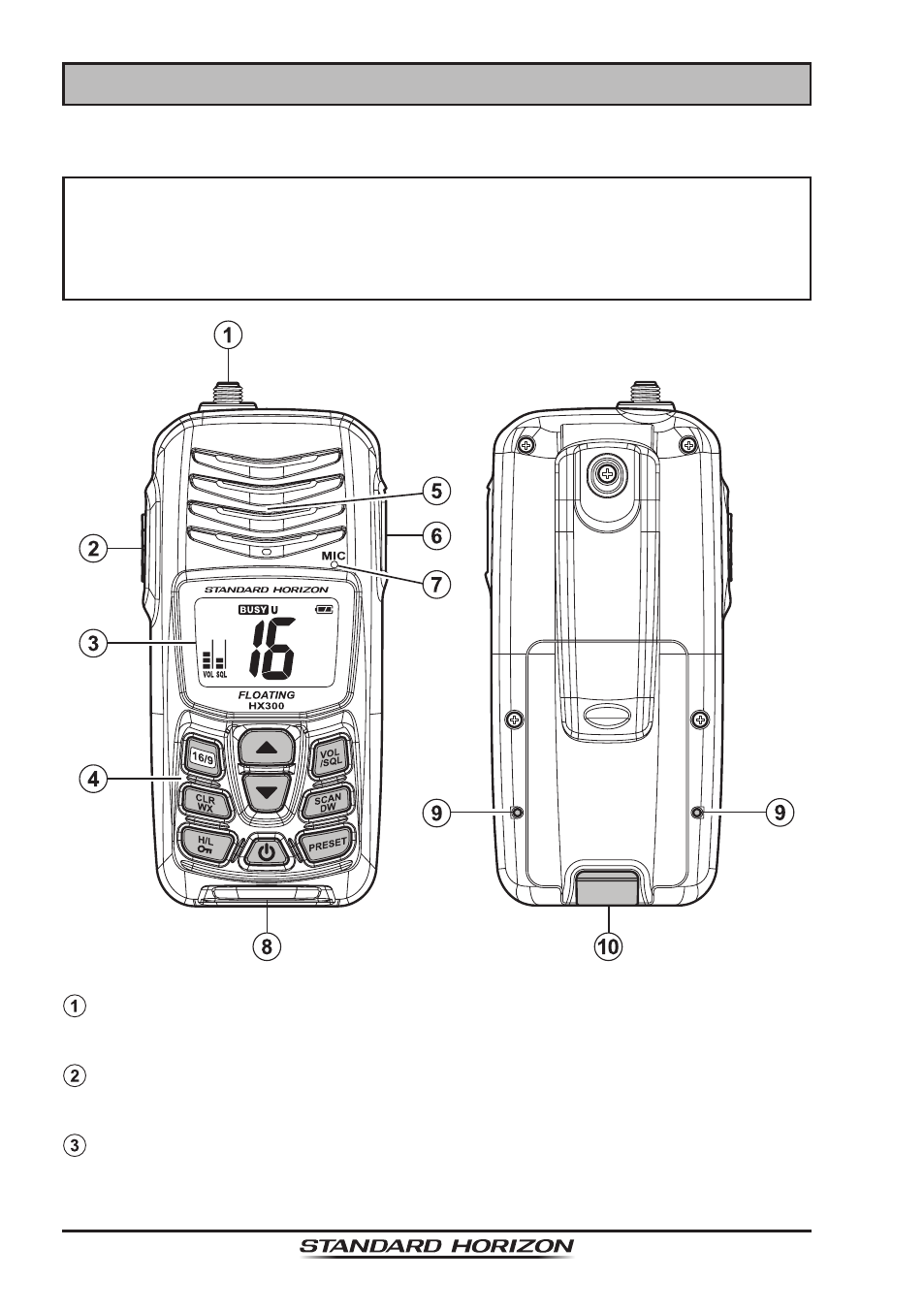

illustrations for the location of the following controls, switches, and
connections.
ANT Jack (Top Panel)
The supplied CAT460 flexible antenna is attached here.
PTT (PUSH-TO-TALK) Switch (Left Side Panel)
When pushed activates the transmitter.
LCD Display
This display shows current operating conditions, as indicated on the
page 21.
