INTO THE WORKTOP

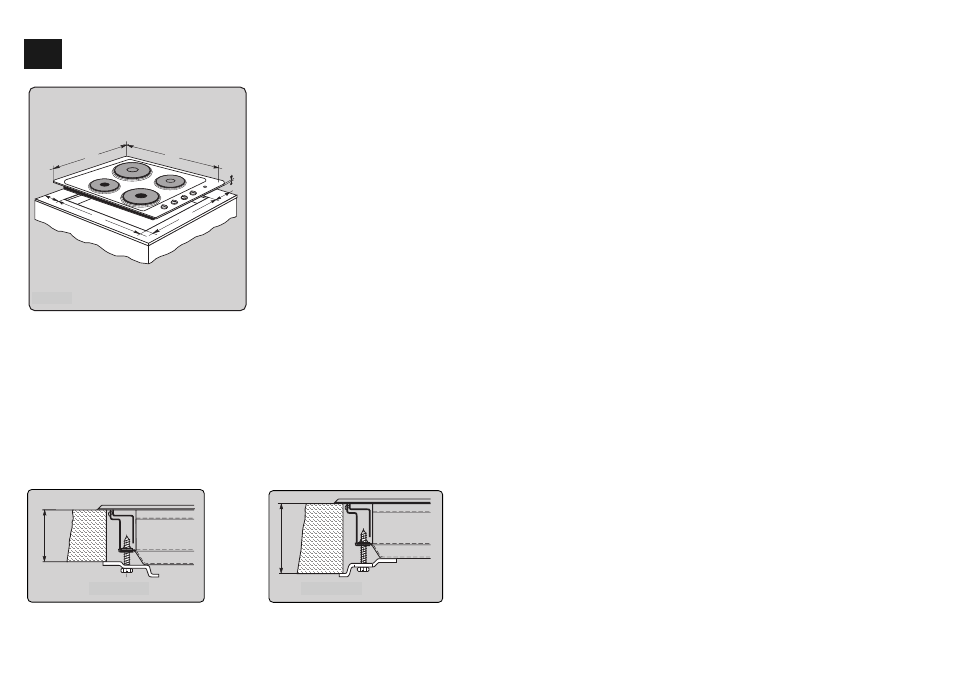

All our cooking hobs are designed to be
fitted into worktops, whether made of
wood or laminated plastic, provided it is
of a heat resistant surface. For building
in it is sufficient to make a hole in the
worktop as shown in Fig. 1 (560 mm x
490 mm) keeping a minimum distance
of 40/50 mm from the rear and from the
right wall and 40 mm from the side
walls to avoid damage by heat.
It is necessary to place a shelt beneath
the hob top, at a distance of at least
90 mm below that of the work surface.
Installation:
If there is a false floor under the hob, it has to be removable for installation purposes.
Insert hob into the worktop opening from above. Make sure that the hob connection cable is
directed to the rear.
Using 4 brackets, tension hob against the worktop in such a way that the entire seal fits tightly
to the worktop.
DB00642-00-
1
560 490
510 580
35
min 60 50
DB00662-00-1
30
DB00663-00-1
40
Figure 2 a Figure 2 b
FOR THE INSTALLER
POSITION OF TENSIONING BRACKETS
2
GB
Figure 1
