Delta 50-851 User Manual
Page 6
6

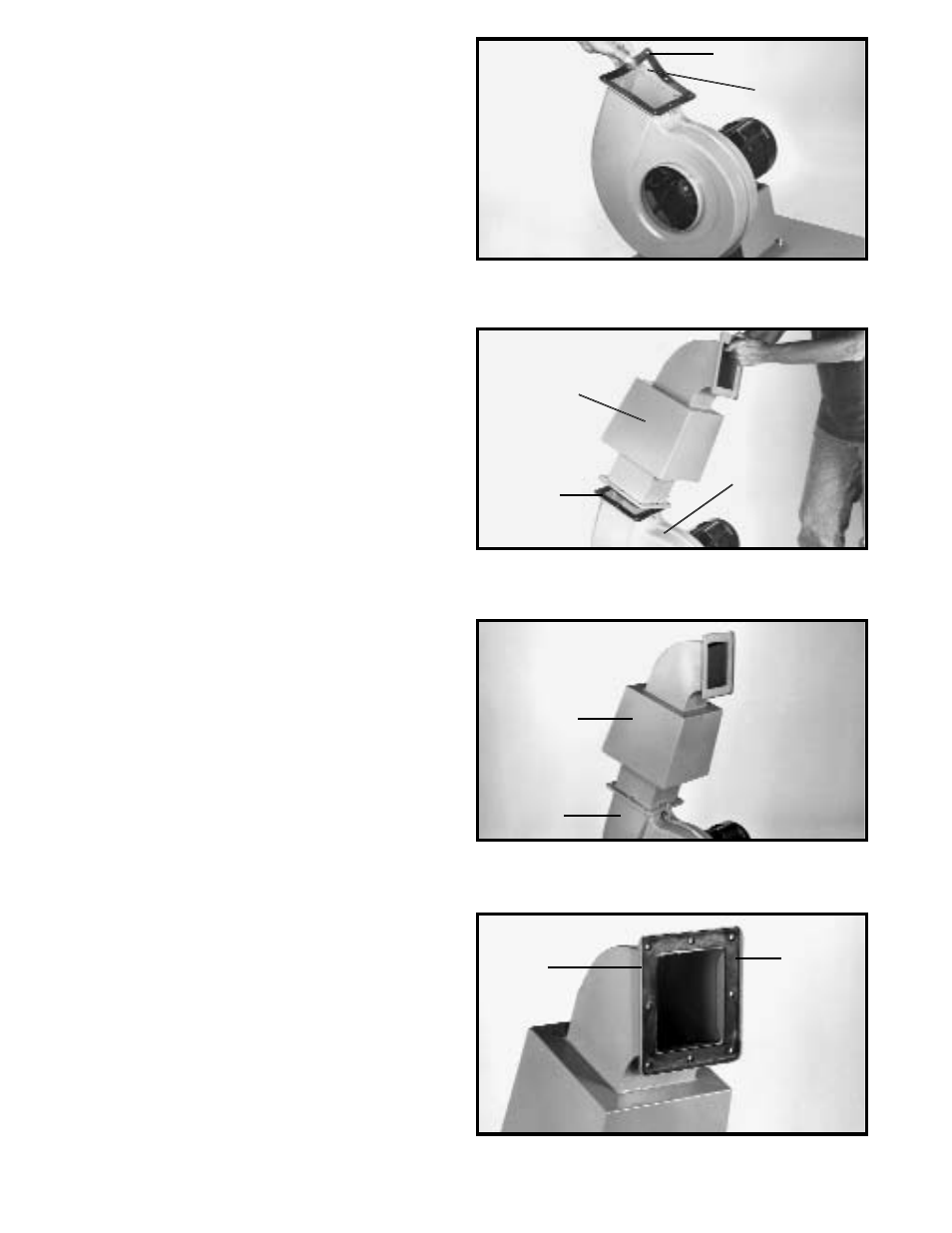

Fig. 8
Fig. 9
Fig. 10
Fig. 11
5.
Place ten-hole rubber gasket (J) Fig. 8, on blower
flange (H). Align holes in gasket with mounting holes in
blower flange and press gasket onto flange as shown.
6.
Align mounting holes in chute (K) Fig. 9, with holes
in gasket (J), which was assembled in STEP 5. Place a
5/16" lockwasher onto a 5/16-18x5/8" hex head screw,
insert screw through the chute and gasket, thread the
screw into the motor assembly, and tighten securely.
Repeat this process for the 9 remaining holes.
7.
Apply a bead of silicone sealant around flange of
chute (K) Fig. 11. Align holes in eight-hole gasket (M)
Fig. 11, with mounting holes in chute (K) and press gasket
into place as shown.
H
J
K
J
A
K
A
K
M
