Page 3
3
FUSE
When replacing the fuse,
make sure new fuse is the
correct type and amperage.
Using an incorrect fuse
could damage the radio.
The XDMA6355 uses one
10 amp ATM fuse located
beside the wiring connector.
XDMA6355
INSTALLATION

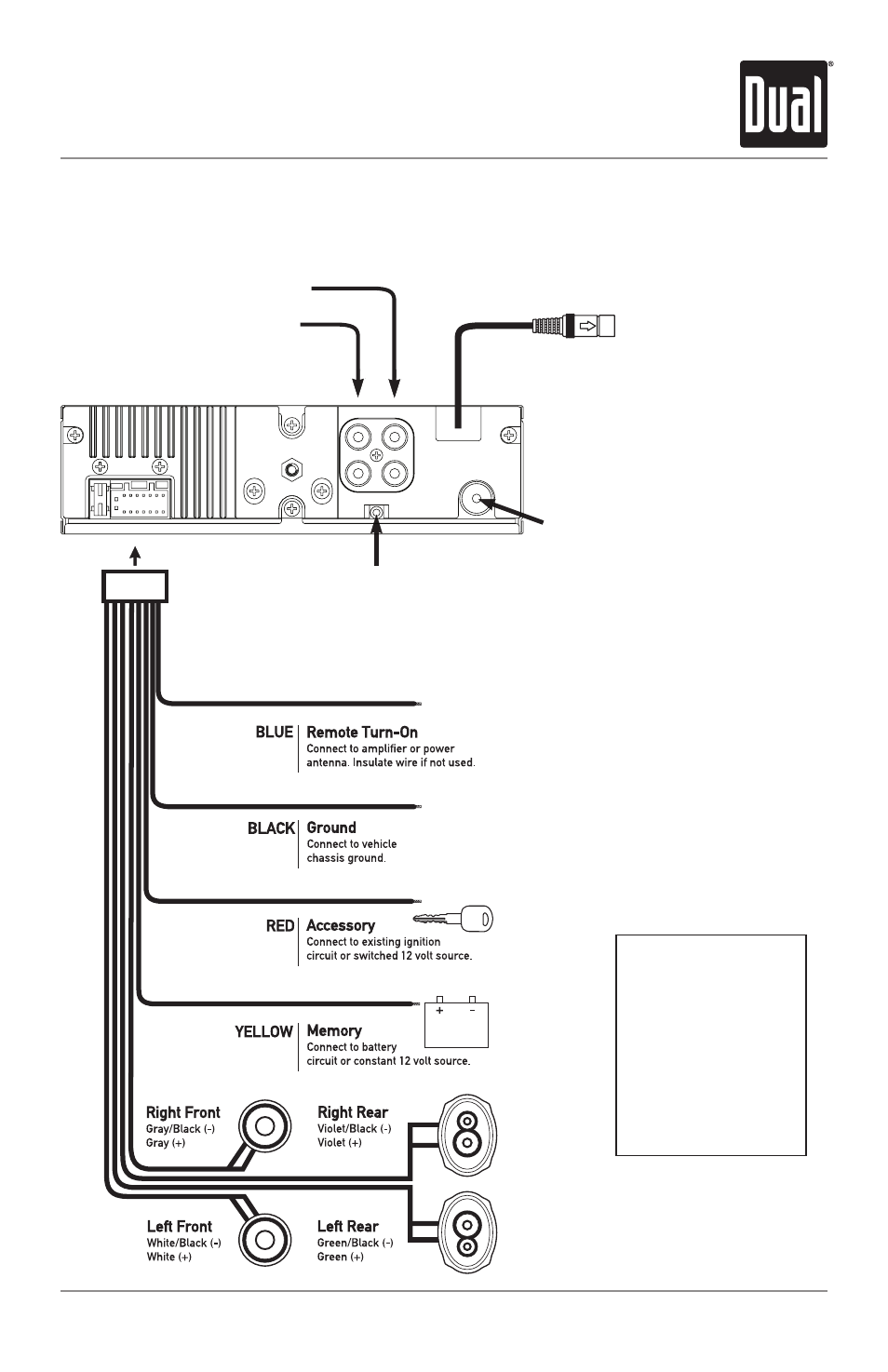

Wiring Diagram
Antenna
Connector
Steering Wheel Interface Input
(PAC SWI-PS required)
FRONT
R/SUB
L-CH
R-CH
REMOTE IN
BLACK 8-pin Female Mini-DIN
BTM60 Connection
REAR/SUB
(selectable)
RCA Preamp Output
Connections
FRONT
