CARE AND MAINTENANCE - MODEL ZTR 2301
HOT oil may cause burns.
Allow engine to cool before draining oil.

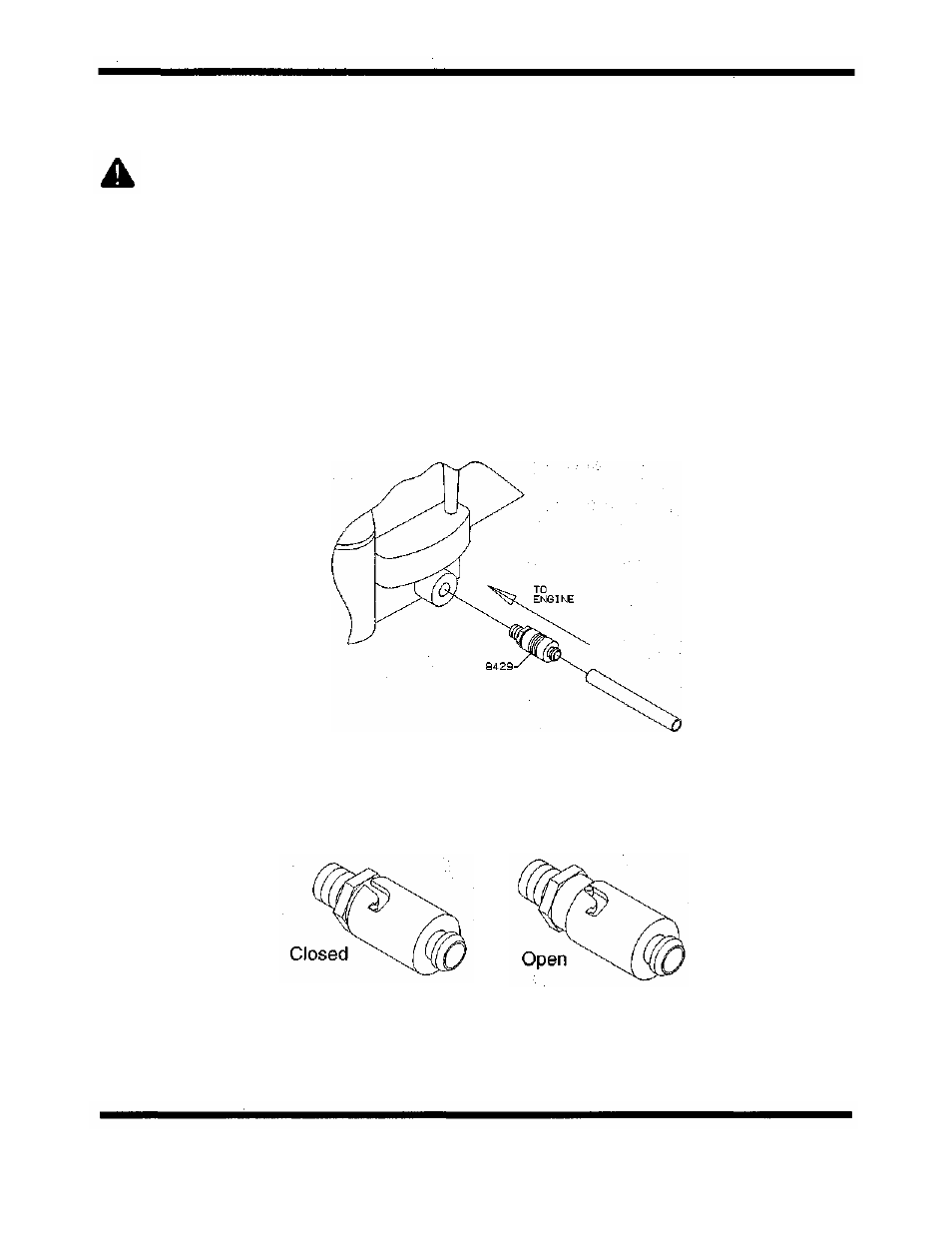

CHANGING THE ENGINE OIL:
1. The "snap lock" oil drain valve is located on the left side of the engine crank-case.
2. Place a suitable container under the drain valve. The fitting of a short piece of hose to
the valve will help direct the oil.
3. Push the valve body in and twist to clear the detent notch.
4. Pulling the valve body outward will start the flow of oil.
NOTE: Refer to engine manufacturers recommendations for frequency of oil changes.
1. Push the valve body in and twist into the detent notch.
2. Clean any spilled oil from engine and chassis.
3. Refill engine with type, and quantity of oil recommended by the engine
manufacturer in engine literature.
PLEASE DISPOSE OF USED OILS AT PROPER COLLECTION CENTERS
PROTECT YOUR ENVIRONMENT
CAUTION
OIL FILL:
