Jetway Computer NF81 User Manual
Page 14
9

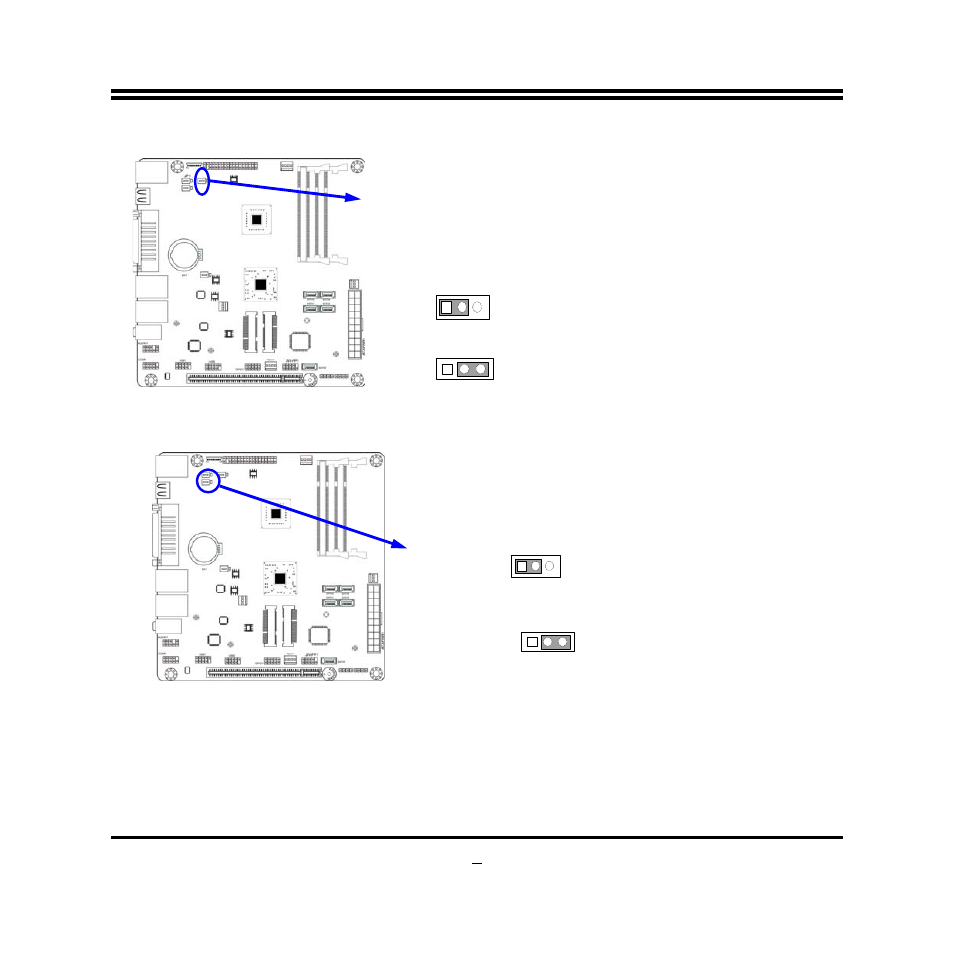

(3) LVDS PVCC 5V / 3.3V Function setting (3-pin): JP2
JP2
JP2
1-2 Closed：
LVDS PVCC 5V Selected
2-3 Closed：
LVDS PVCC 3.3V Selected
1
3
1
3
(4) KB/MS/USB Power on Function Enabled/Disabled (3-pin): JP3
2-3 closed: KB/MS/ USB POWER-ON Enabled
JP3
JP3
1-2 Closed: KB/MS/USB POWER-ON Disacled(default)
1
3
1
3
