5

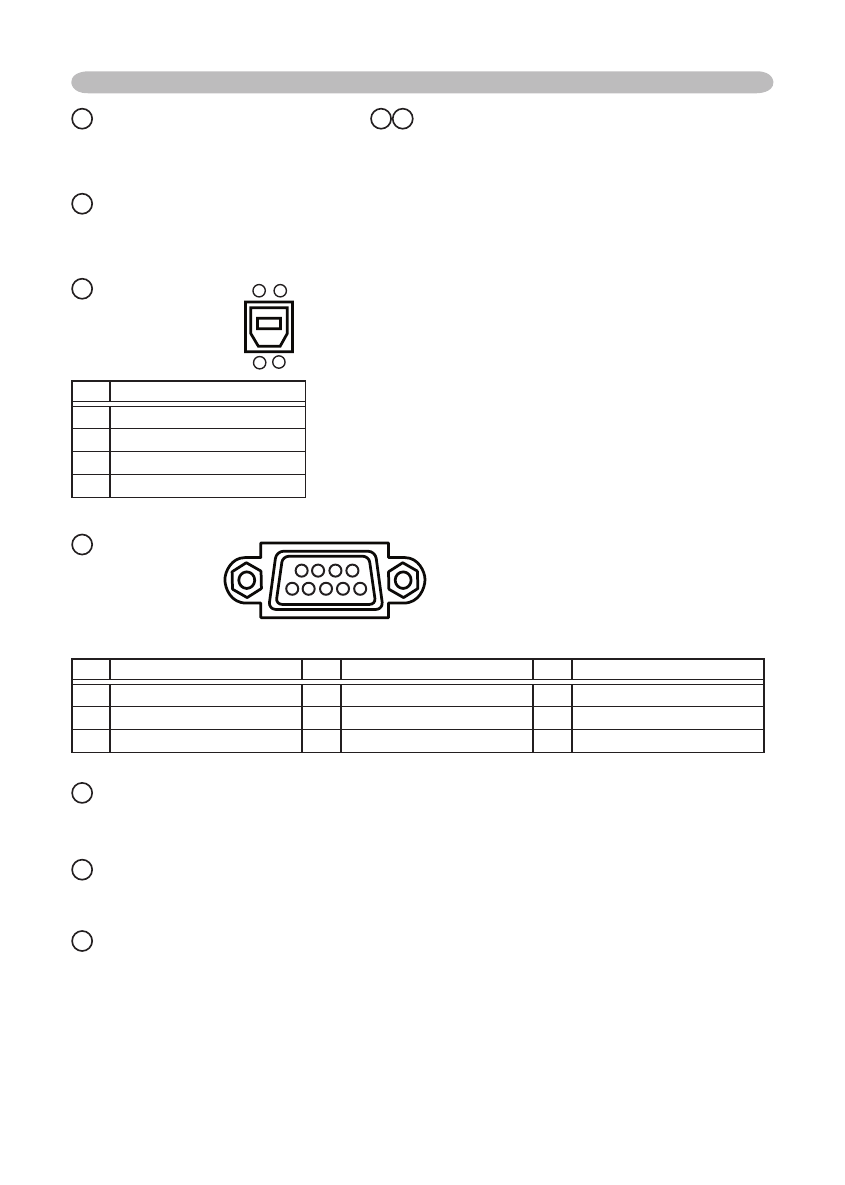

Connection to the ports
L AUDIO IN ( Ø3.5 stereo mini jack), J K AUDIO INL/R (RCA jack)
• 200mVrms(max.) 50kΩ termination
M AUDIO OUT ( Ø3.5 stereo mini jack)
• 200mVrms(max.) 1kΩ output impedance
O USB
USB B type jack
Pin Signal
1 +5V
2 - Data
3 + Data
4 Ground
N CONTROL
D-sub 9pin plug
• About the details of RS-232C communication, please refer to the following page.
Pin Signal Pin Signal Pin Signal
1 (No connection) 4 (No connection) 7 RTS
2 RD 5 Ground 8 CTS
3 TD 6 (No connection) 9 (No connection)
P L AN
RJ45 jack
Q DC OUT
DC5V/1.5A(max.)
R WIRED REMOTE
Ø3 .5mm Stereo Mini jack
• To be connected with the remote control that came with the projector.
9 8 7 6
5 4 3 2 1
2 1
3 4
