Sw3: system reset button – IBASE MRS-801-RE User Manual
Page 31
Copyright © 2013 IBASE Technology Inc. All Rights Reserved.
23
IBASE Technology Inc.

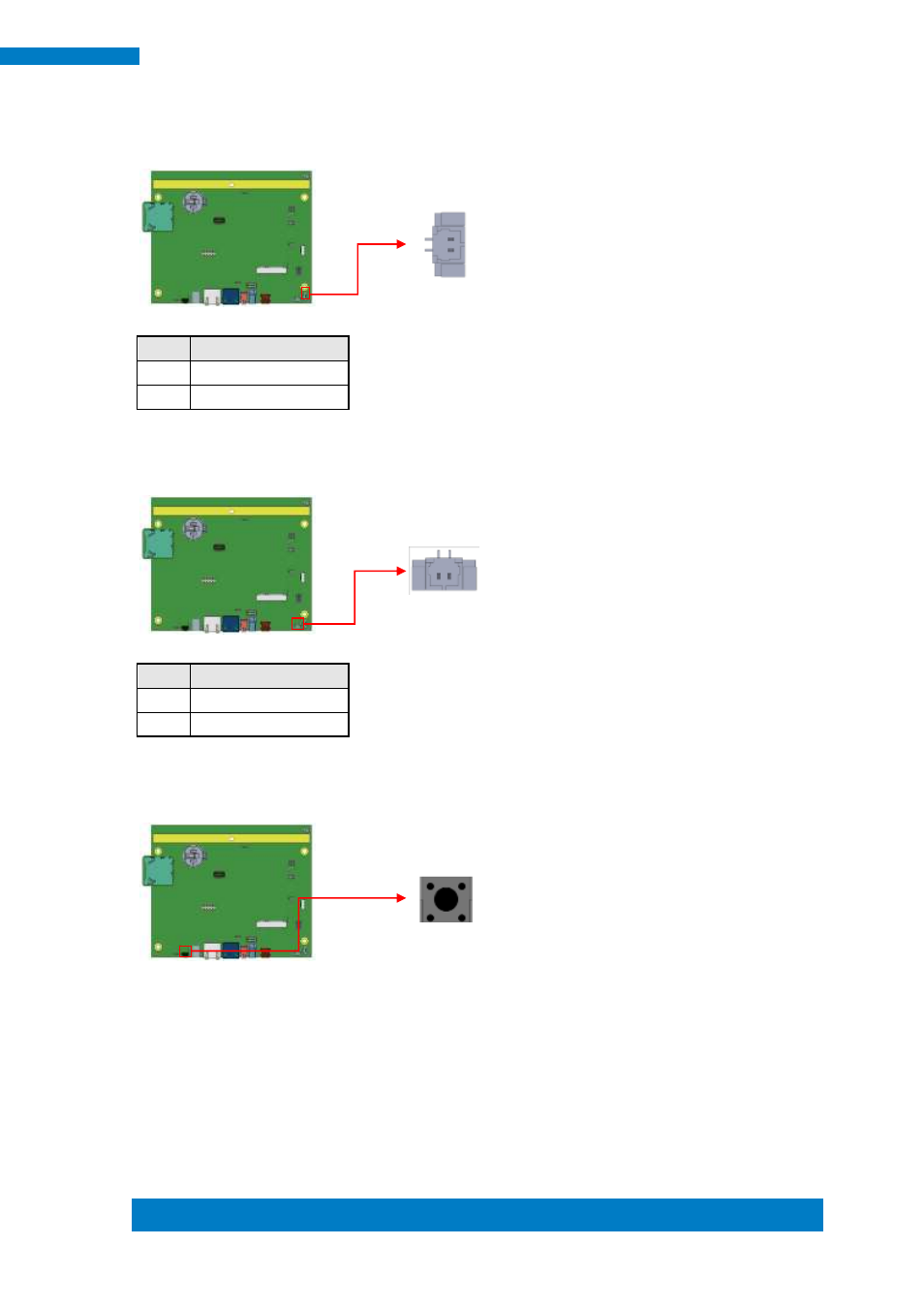

J12: Speaker Right-Out Connector (WT04M-30003-02032)
Pin #
Signal Name
1
SPEAKER_RIGHT+
2
SPEAKER_RIGHT-
J13: Speaker Left-Out Connector (WT04M-30003-02032)
Pin #
Signal Name
1
SPEAKER_LEFT-
2
SPEAKER_LEFT+
SW3: System Reset Button
1
2
2
1
