HUBER+SUHNER disclaims any liability resulting from incorrect installation and use, including any damages resulting from the use of
tools and accessories other than the ones recommended herein. Any installation performed by unqualified personnel voids the product
warranty provided by HUBER+SUHNER. All due care and attention must be exercised when performing the installation of these pro-
ducts. For advice concerning the general handling of these products please contact HUBER+SUHNER. 2.
1

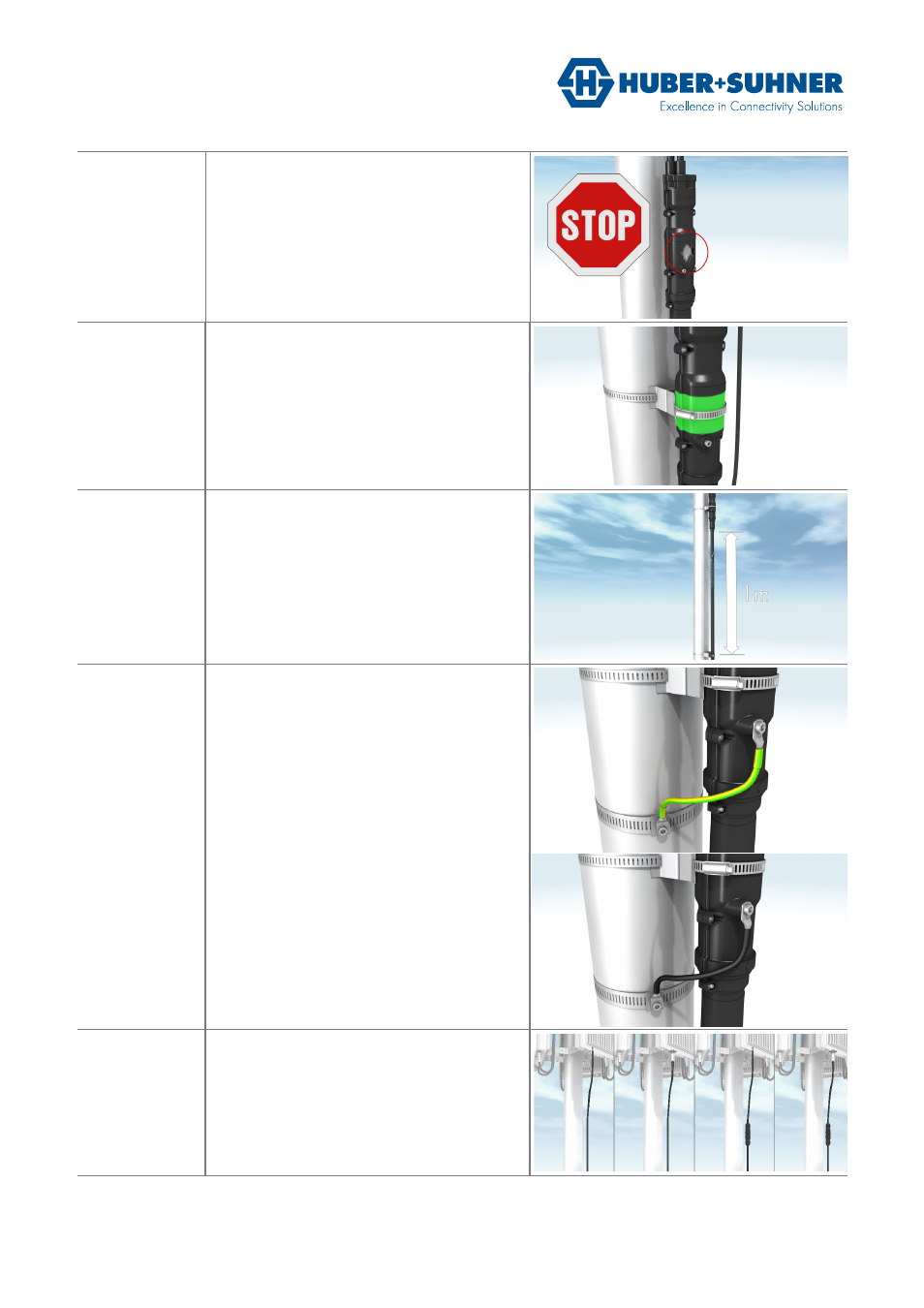

Step 4 Inspect condition of assembly especially the housing.
If any damage is detected do not install.
Step 5 Fix housing to mast using mounting adapter.
Be careful not to damage it by over-tightening the
clamp.
Only fix with tube clamps, as indicated in picture. For
6/7 configuration it is ideal to locate the band under
the molded lip on the enclosure.
Step 6 Fix cable to the mast using suitable clamps.
Recommended spacing between clamps is 1m.
Clamps should be applied to hybrid cable starting
from a point 1m below the housing proceeding down
to the bottom of the mast.
Step 7 Earth assembly to the mast using an earth link.
Recommendation is 16mm 2 / 6 AWG with M8 lugs.
NOTE: the earthing cable can also come in black.
Step 8 Connect DC tails to relevant RRH as specified by the
RRH manufacturer.
FO and DC tails are numbered to aid identification.
Images 3 and 4 show pre-terminated DC jumpers
connected to the MLEH DC tails.
