16
English
Installation

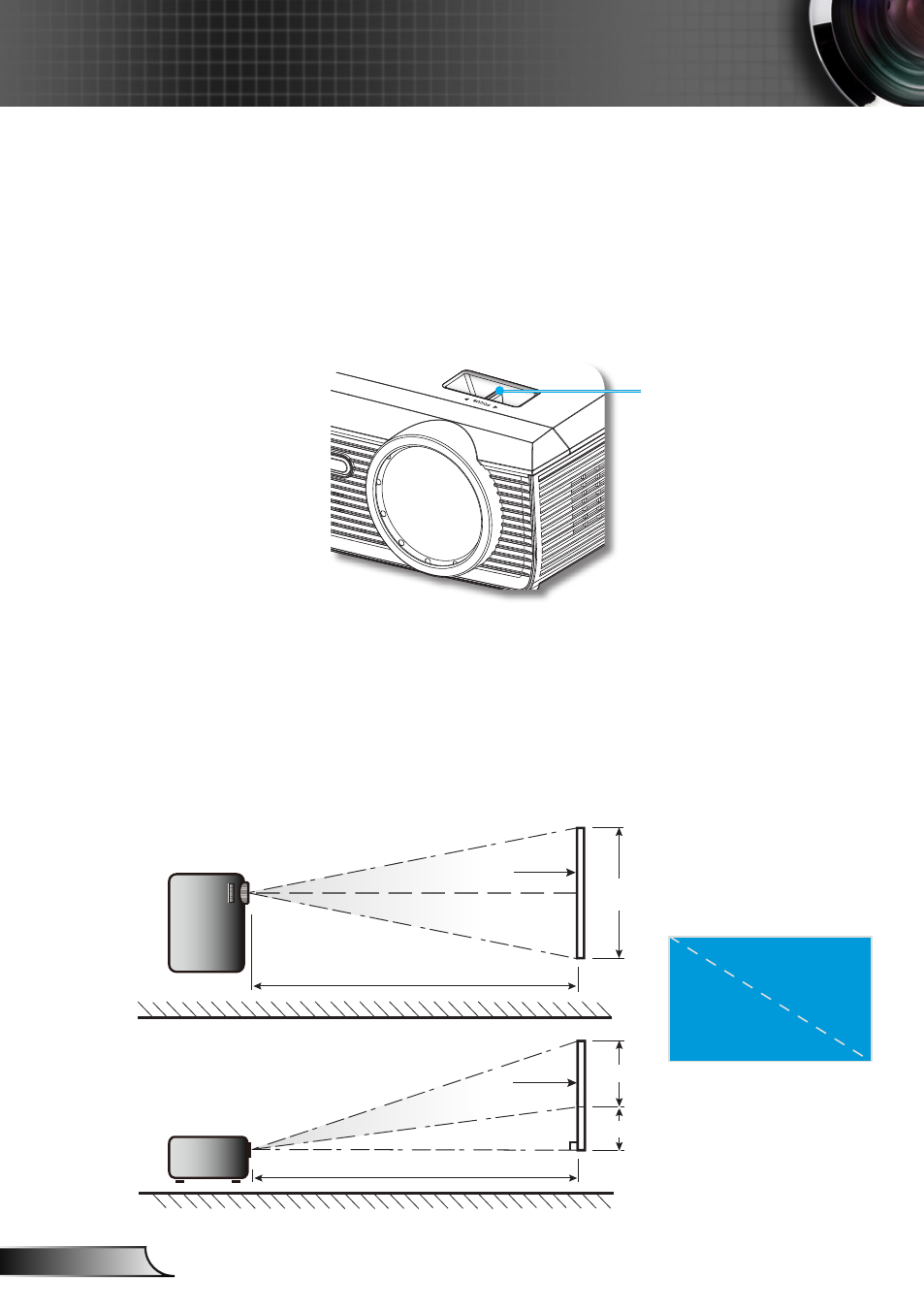

Adjusting the Projector’s Focus
To focus the image, rotate the focus ring until the image is clear.
 XGA series: The projector will focus at distances from 1.64
to 12.46 feet (0.5 to 3.8 meters).
 WXGA series: The projector will focus at distances from 1.64
to 11.15 feet (0.5 to 3.4 meters).
Focus Ring
Adjusting Projection Image Size
 XGA series: Projection Image Size from 41.0” to 312.0” (1.0
to 7.9 meters).
 WXGA series: Projection Image Size from 44.6” to 303.0”
(1.1 to 7.7 meters).
Width
Height
Diagonal
Top View
Side View
Projection Distance (D)
Projection Distance (D)
Screen
Screen
Screen (W)
Screen (H)
Offset (Hd)
