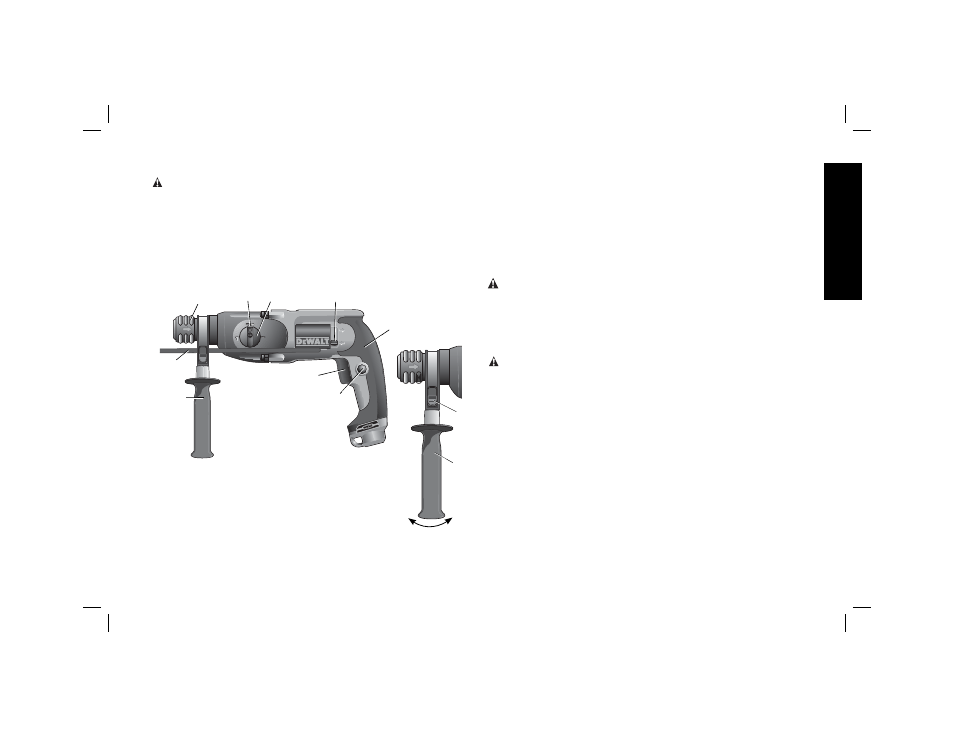

COMPONENTS (Fig. 1)
WARNING: Never modify the power tool or any part of it. Damage
or personal injury could result.
A. Variable speed
F. Mode selector button
trigger switch G. Mode selector
B. Main handle H. Reversing lever
C. Side handle I. Lock-on button
D. Depth rod J. Depth rod release button
E. SDS Plus ® chuck
C
J
FIG. 1 H
A
D
G
I
E
F
B
C
INTENDED USE
This heavy-duty rotary hammer has been designed for professional
drilling and hammerdrilling, screwdriving and light chipping at
various work sites (i.e., construction sites). DO NOT use under wet
conditions or in presence of flammable liquids or gases.
This heavy-duty rotary hammer is a professional power tool. DO
NOT let children come into contact with the tool. Supervision is
required when inexperienced operators use this tool.
ASSEMBLY AND ADJUSTMENTS
WARNING: To reduce the risk of injury, turn unit off and
disconnect machine from power source before installing and
removing accessories, before adjusting or changing set-ups or
when making repairs. Be sure the trigger switch is in the OFF
position. An accidental start-up can cause injury.
Side Handle (Fig. 1)
WARNING: To reduce the risk of personal injury, ALWAYS
operate the tool with the side handle properly installed and securely
tightened. Failure to do so may result in the side handle slipping
during tool operation and subsequent loss of control. Hold tool with
both hands to maximize control.
A side handle comes assembled with this rotary hammer. The
side handle (C) can be fitted to suit both right-hand and left-hand
users.
TO ADJUST THE SIDE HANDLE
1. Loosen the side handle (C) by turning it counterclockwise.
2. Rotate the side handle to the desired position.
3. Tighten the side handle by turning it clockwise.
TO CHANGE SIDES
For right-hand users: slide the side handle clamp over the
chuck, handle at the left.
For left-hand users: slide the side handle clamp over the chuck,
handle at the right.
