Page 3
3
FUSE
When replacing the fuse,
make sure new fuse is the
correct type and amperage.
Using an incorrect fuse
could damage the radio.
The XDMA6700 uses one
10 amp ATM fuse located
beside the wiring connector.
XDMA6700
INSTALLATION

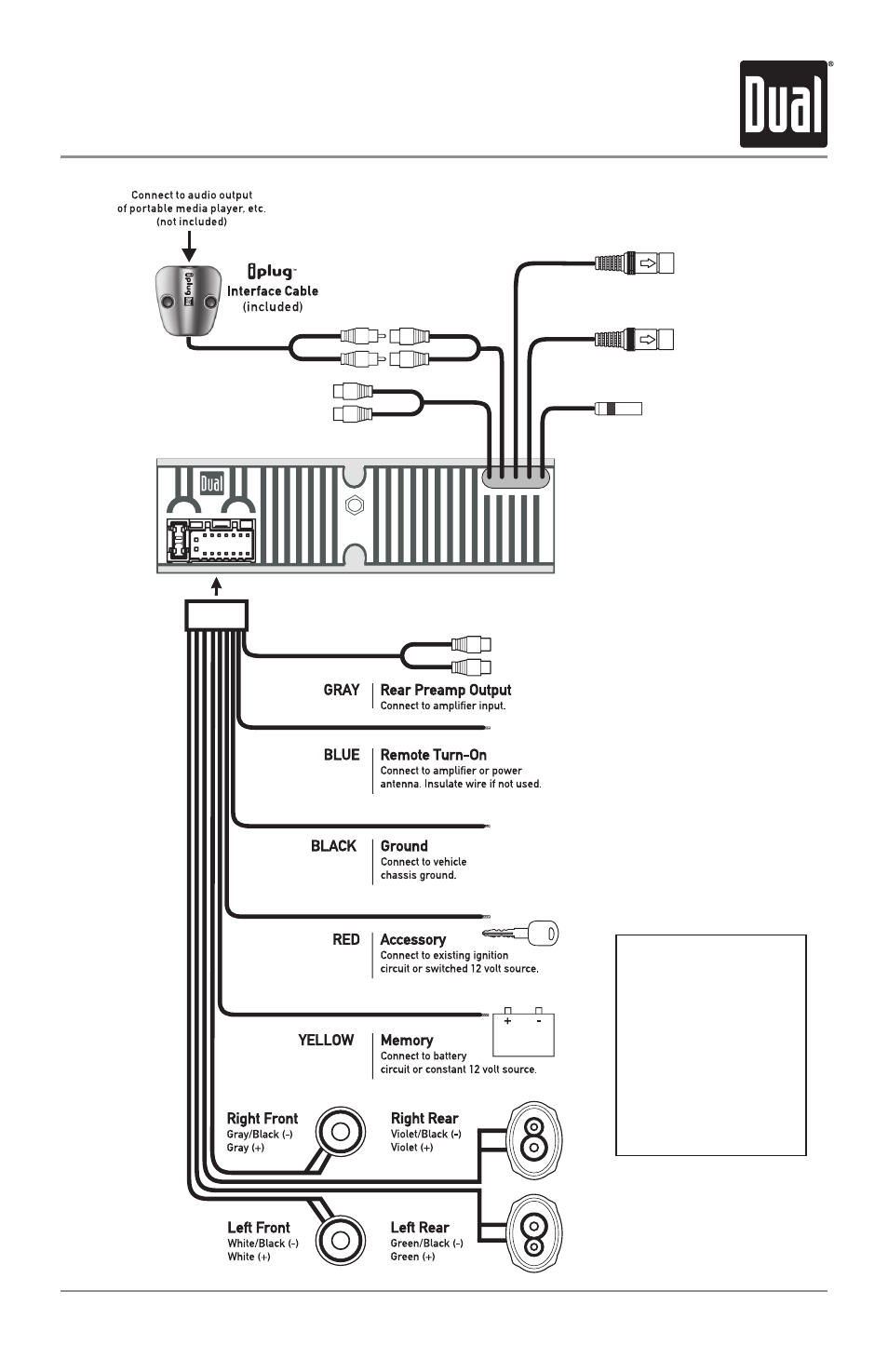

Wiring Diagram
BLACK
Front Preamp Outpu
t
WHITE 10-pin Female Mini-DIN
IPC2M Connection (sold separately)
BLACK 8-pin Female Mini-DIN
BTM60 Connection (sold separately)
Yellow
Auxiliary Input
Antenna Connector
