Note: Clearances are the
same if using optional
cabinet mantel or built-in
installation.

MINIMUM CLEARANCE
Side Wall - 16 " Cabinet and

Face Mantel

Ceiling - 42" Corner Mantel
Floor - 0"

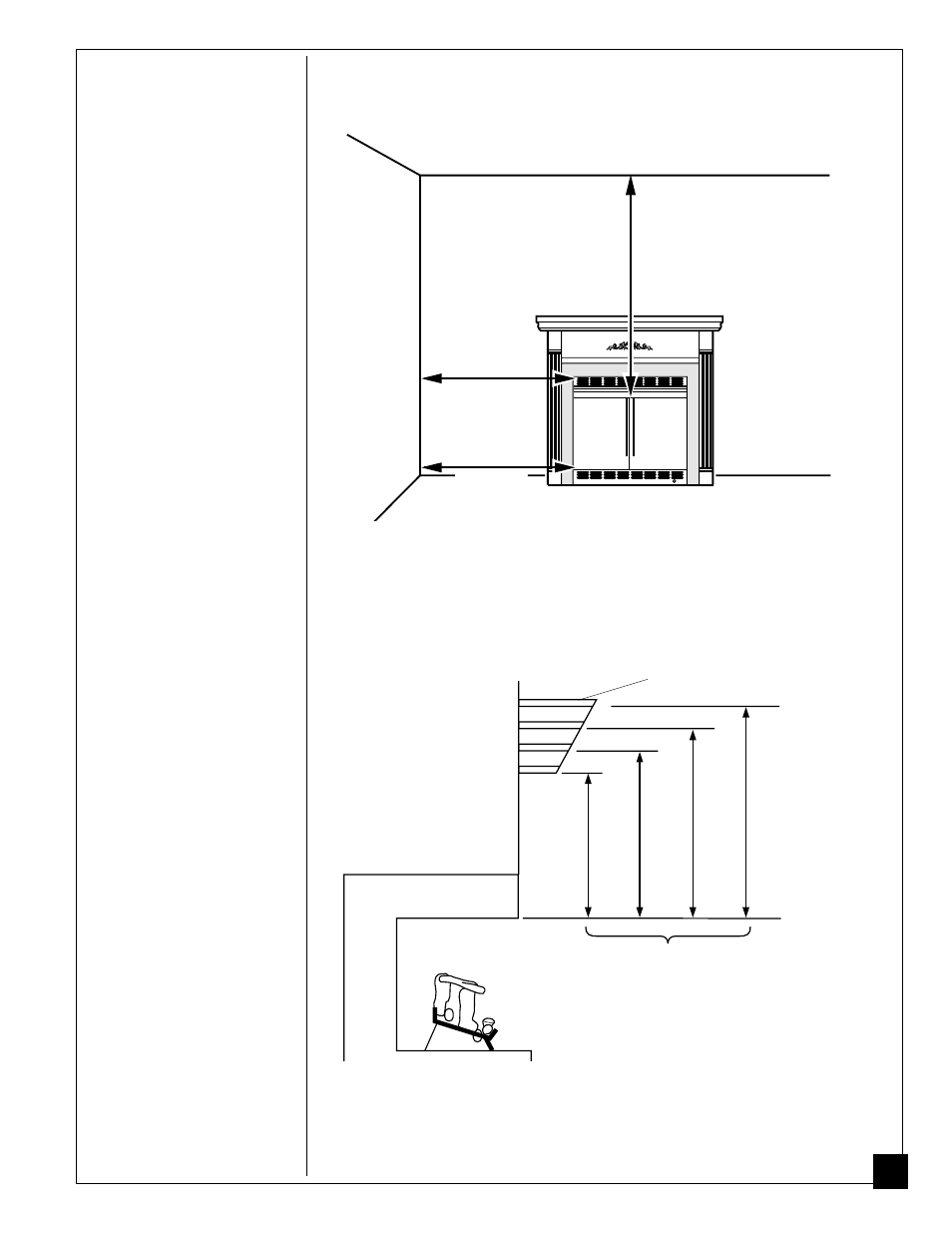

Figure 6 - Minimum Clearance to Wall and Ceiling

,,,,,,

QQQQQQ

,,,,,,,

42"

16"

Face or

Cabinet

Mantel

Corner

Mantel

12"

INSTALLING

Continued

Mantel Clearances for Built-In Installation

If placing custom mantel above built-in firebox, you must meet minimum clearance
between mantel shelf and top of firebox opening.

If your installation does not meet the above minimum clearances, you must:
• raise the mantel to an acceptable height, OR
• remove the mantel.

Distances to
Underside of
Mantel

Underside of
Mantel Shelf

20"

1/2

30"

All minimum
distances are
in inches

Top of
Fireplace
Opening

10"

Figure 7 - Minimum Mantel Clearances for Built-In Installation

Mantel Shelf

Mantel Clearances for Conventional Installation
