Stop, Important, Frame assembly – Hoist Fitness RS-1401 User Manual
Page 18: Owner's manual
REMOVED FOR CLARITY.
- WRENCH TIGHTEN HARDWARE.
- SOME PARTS MAY HAVE BEEN

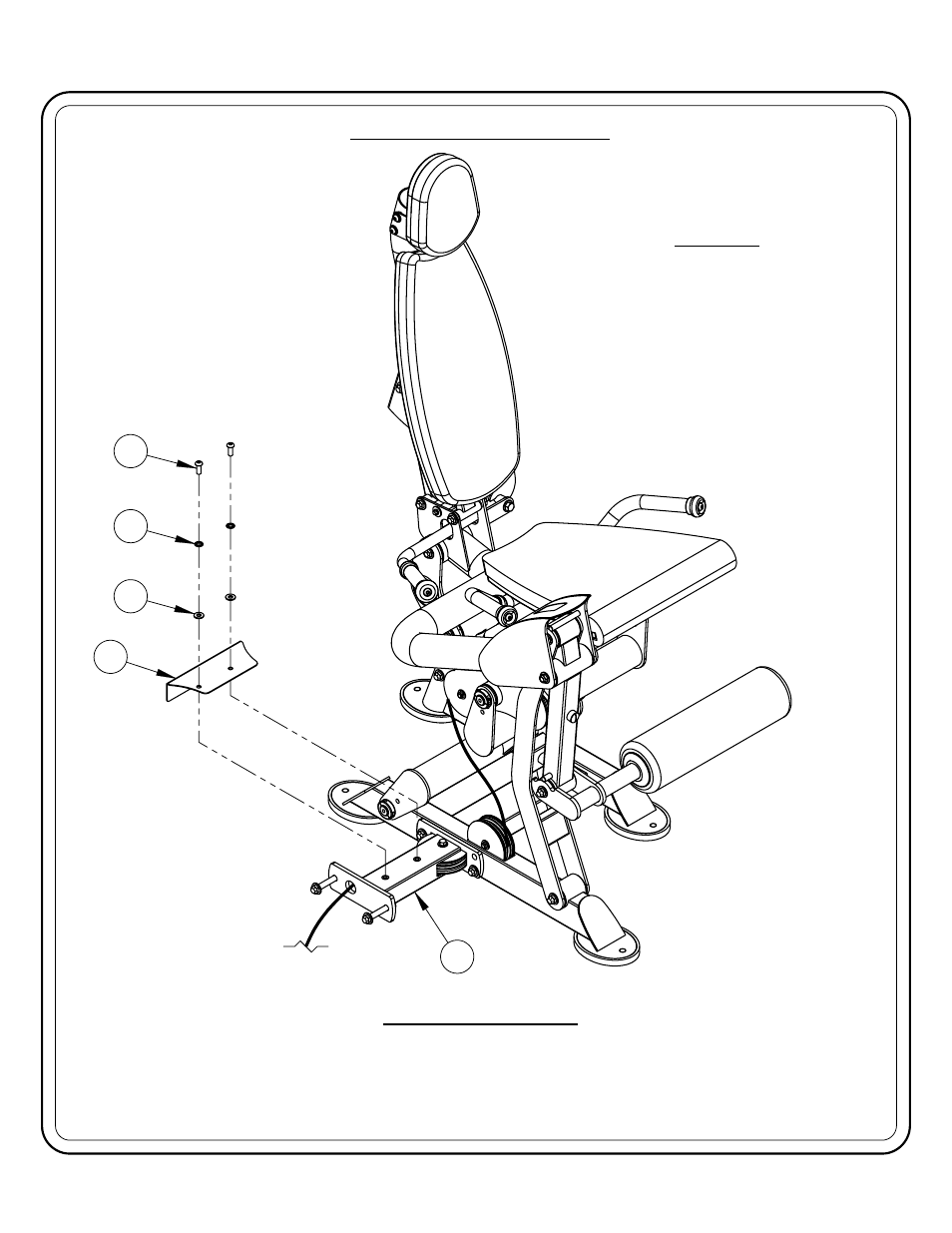

FRAME ASSEMBLY
STOP
NOTES:
WHEN FINISHED WITH THIS STEP,
PLEASE SEE ROC-IT WEIGHT CAGE
MANUAL FOR FINAL ASSEMBLY.
OWNER'S MANUAL
PAGE 17
RS-1401 ASSEMBLY
55
80
82
67
3
ASSURE THAT YOUR UNIT IS ASSEMBLED SQUARE AND PERPENDICULAR. USE A LEVEL
NOW THAT THE RS-1401 IS COMPLETELY ASSEMBLED TAKE TIME TO
IF THEY ARE NOT PERPENDICULAR IN BOTH DIRECTIONS, IT WILL BE NECESSARY TO
*IMPORTANT*
TO CHECK THAT THE GUIDE RODS ARE PERPENDICULAR IN BOTH DIRECTIONS.
LOOSEN SOME FRAME HARDWARE TO RE-ALIGN THE FRAME AND RETIGHTEN BOLTS.
