Page 2
(w/ RUBBER FOOT)
41 7/16"
41 3/16"
(w/ OUT RUBBER FOOT)
OWNER'S MANUAL
PAGE 28
RPL-5501 ASSEMBLY

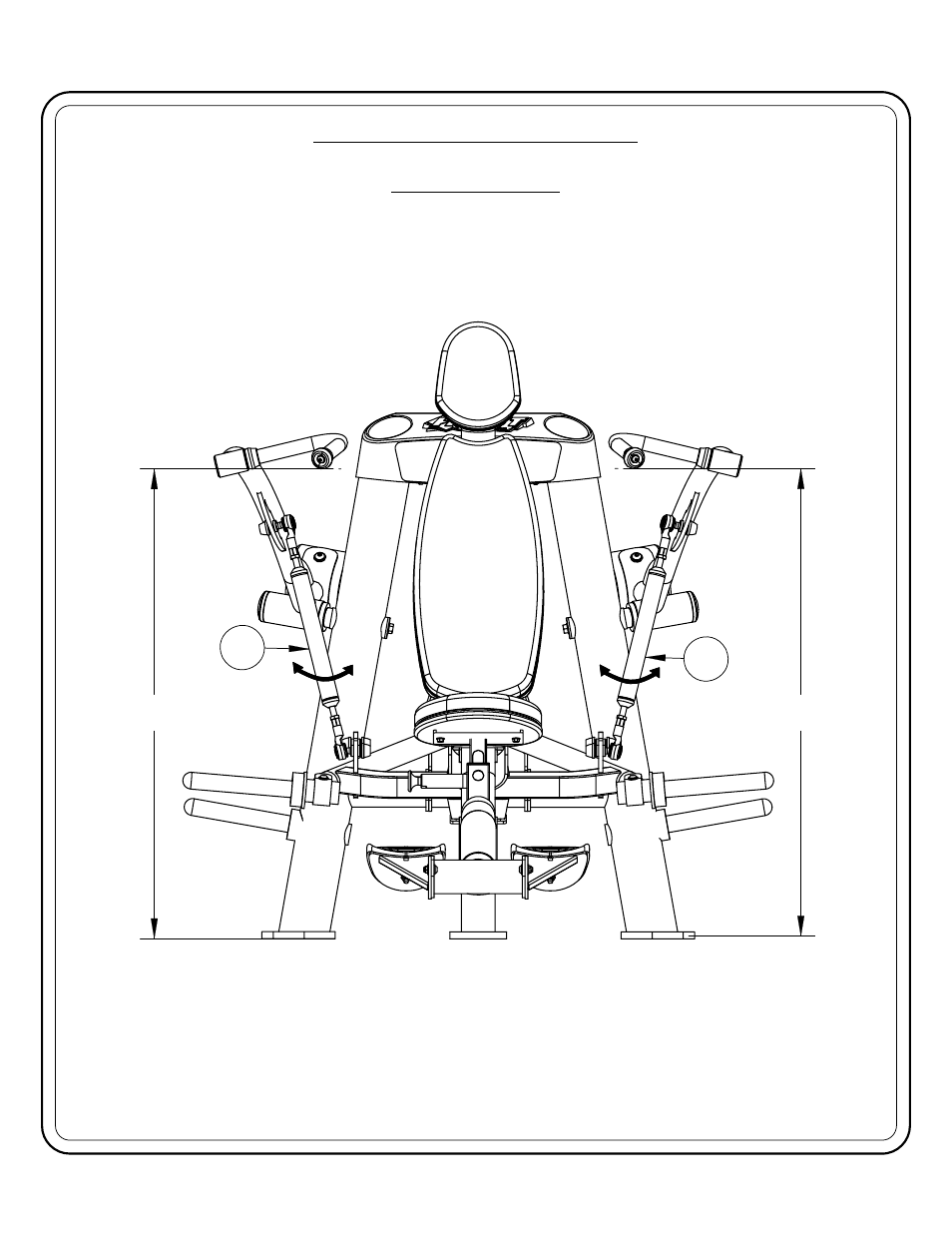

MACHINE ADJUSTMENT
LOOSEN JAM NUT AND TWIST TIE RODS (12) IN/OUT TO
ADJUST THE PRESS ARMS TO THE PROPER HEIGHT.
ONCE THE PROPER HEIGHT IS REACHED AND THE
PRESS ARMS ARE OF EQUAL HEIGHT, BE SURE TO
RE-TIGHTEN JAM NUTS.
MAJOR ADJUSTMENT:
TWIST TIE RODS (12):
CLOCKWISE TO DECREASE PRESS ARM HEIGHT
OR
COUNTER-CLOCKWISE TO INCREASE PRESS ARM HEIGHT.
41
41
