CAST IRON STOVE AND B-VENT
BURNER SYSTEM ASSEMBLY
Continued

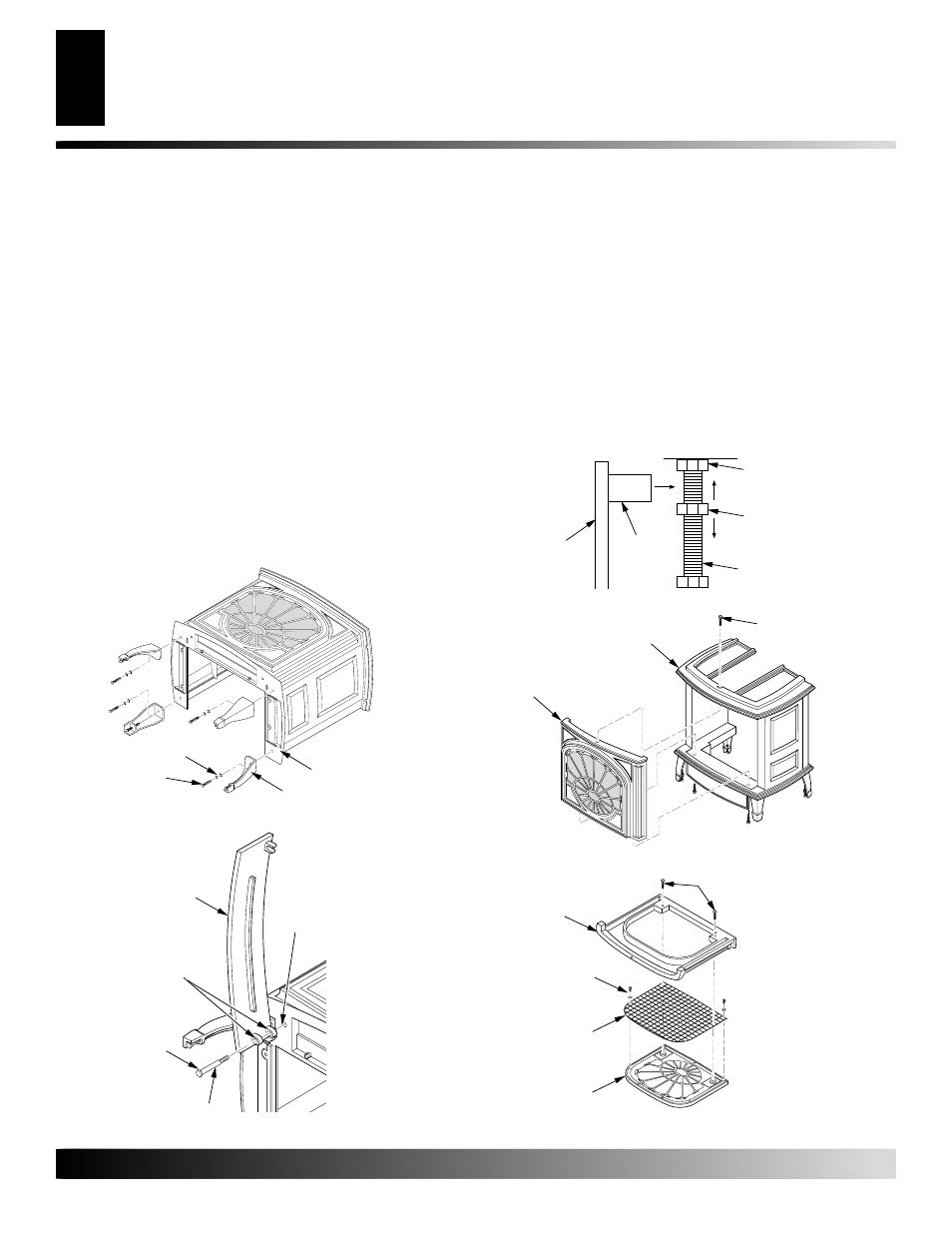

Figure 11 - Attaching Stove Door
Step Bolt
Door Hinge
Threaded Hole
Stove Door
Bolt Shoulder
Adjusting Nut
Bolt Stop
Catch Bolt
Door Claw
Door
Figure 12 - Catch Bolt and Door Claw Orientation
9.
Attach stove door by inserting step bolt through door hinge
pivot hole and into threaded hole in stove body (see Figure 11
and Figure 9 on page 5). Use an adjustable wrench or a 12mm
socket to fasten step bolt. Tighten step bolt until snug. Make
sure door moves freely.
10. Install door catch bolt (M8 x 1.25-55mm with two M8 hex
nuts) into threaded hole on stove body (see Figure 9, page 5).
Use an adjustable wrench or a 12mm socket. The catch bolt
has two hex nuts attached to it (see Figure 12). The top nut is a
bolt stop and the bottom nut is for door leveling adjustment.
11. Check general catch bolt alignment with door claw. Make fi-
nal adjustment and door leveling after stove is in normal stand-
ing position.
12. Carefully lift stove back up on its four attached legs.
13. Remove 2 bolts from bottom of stove and discard. Remove
bolt from the top of the stove to remove the front panel assem-
bly (see Figure 13).
Figure 10 - Attaching Stove Legs
Bottom Of
Stove Unit
Leg
Bolt
Washers
14. Lay the front panel assembly face down on a protected sur-
face. Remove the two screws that hold the front plate onto the
front surround plate (see Figure 14). Save these screws.
15. Remove the seven screws and washers that hold the screen
onto the front surround plate. Discard these screws, washers,
and screen. They are for vent-free use only (see Figure 14).
16. Replace the two screws from step 14 to reassemble the front
plate and the front surround plate. Set this assembly aside un-
til burner system has been installed, logs have been placed
inside of burner system, and glass door to burner system insert
has been replaced.
Figure 13 - Removing Front Assembly
Front
Assembly
Bolt
Stove Body
Figure 14 - Removing Screen from Front Assembly
Screws
Front Surround
Plate
Front Plate
Screen
Screw with
Washer
