I n s t a l l i n g y o u r p o r t a b l e
a i r - c o n d i t i o n e r

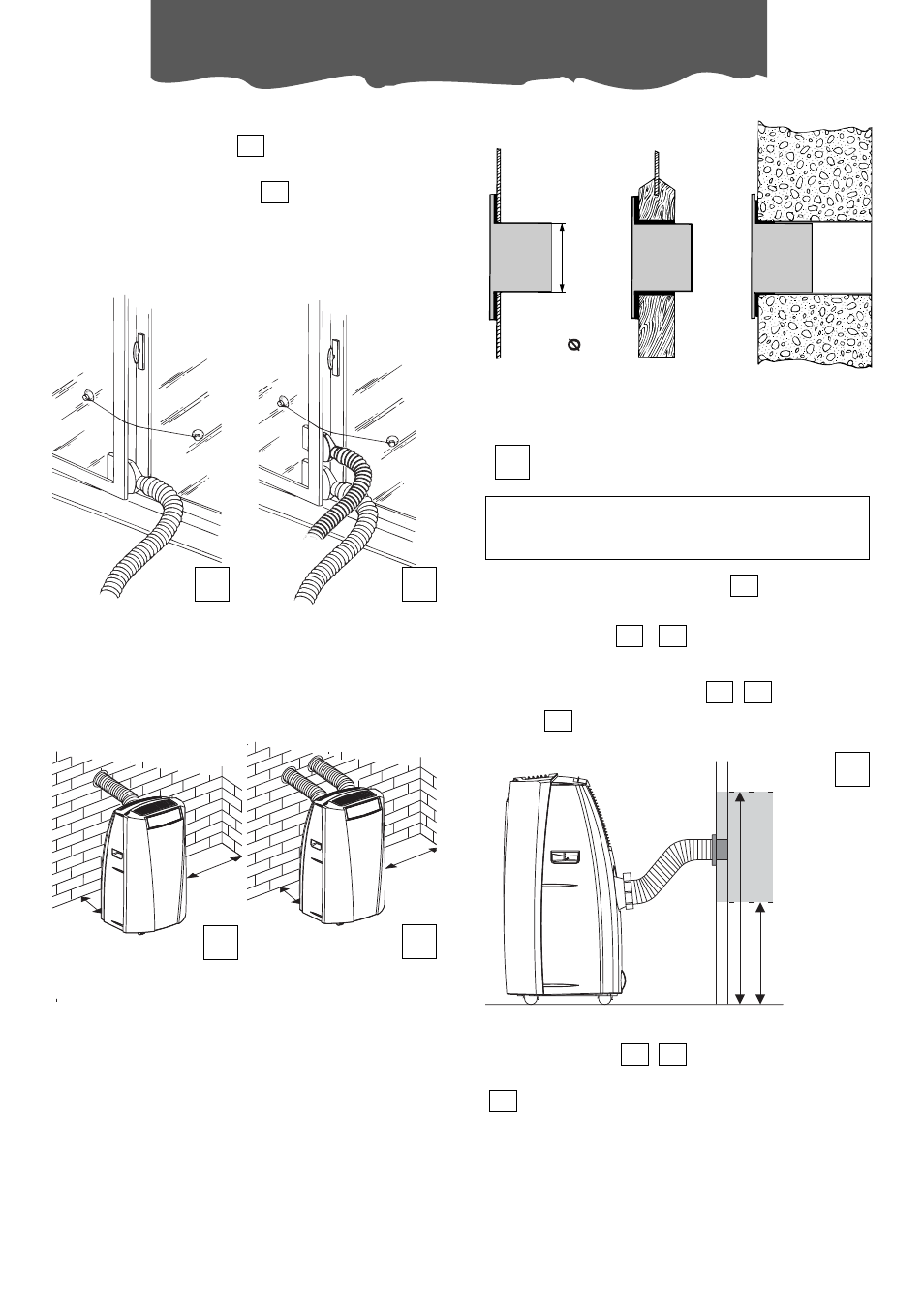

SEMI-PERMANENT INSTALLATION
If required, the Pinguino can also be installed
semi-permanently (Fig. E and E1).
• Fit the flange accessory provided in
the hole
• Fit the hose / in the housing at the
back of the appliance (fig. A / A1 page 5).
• Fit the end of the hose / to the flan-
ge as shown in fig. G. 10
18 11
18 11
10
Proceed as follows:
•
Drill a hole in an outside wall or through a
window pane.
Respect the height and dimensions of the
hole given in figure F.
30 cm
11.8 inc
hes
30
cm
11,8 inches
MAX100 cm
MIN 35 cm
MAX 39.37 inches
MIN 13.77 inches
When the hose / is not fitted, the dril-
led hole can be closed with the flange cap
.
NOTE.
When installing the air conditioning unit semi-
permanently, you should leave a door slightly
open (as little as 1/2 inches (1 cm) ) to gua-
rantee correct ventilation.
10
18 11
G
Keep the air hoses as short and free of
curves as possible to avoid constrictions.
4.17 inc
hes (106 mm)
in the window
pane in the wall: you are
recommended to
insulate the sec-
tion of wall using
suitable insulation. in the woo-
den kick-
board of a
French win-
dow
F
30 cm
11.8 inc
hes
30
cm
11,8 inches
E1 E
• Open the French window slightly and
position the outlet
as shown in figure C
and C1.
• Use the suction pads provided to hold
the two parts of the window together (fig.
D and D1).
