3

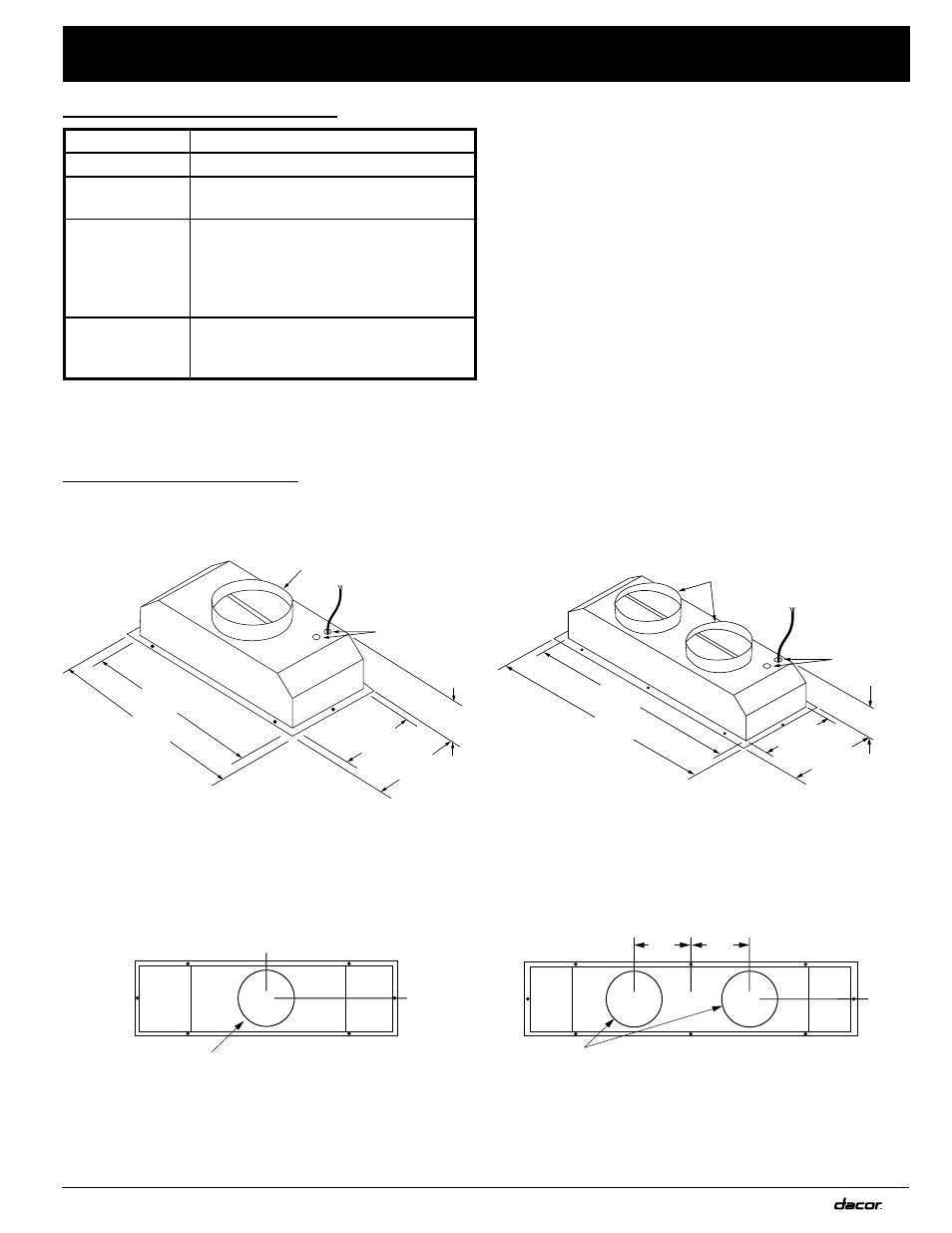

Product Dimensions
General Specifications
Filters Mesh type, dishwasher safe
Lights 120 Vac, 75 W halogen
Total Circuit
Requirements*
120 Vac, 60 Hz, 15 Amp Min.
grounded , dedicated circuit
Total Connected
Load*
IVS1: 0.2 kW (2 Amp)
IVS2: 0.4 kW (3 Amp)
IVSR1/IVSR2 0.2 kW (1.5 Amp) plus
the power requirements of the in-line
or remote blower connected.
Blower Rating
IVS1: 600 CFM, IVS2: 1200 CFM
IVSR1 and IVSR2: Dependant on
in-line or remote blower selected
* Electrical specifications provided for reference
only, consult product data label on the unit for exact
specifications.
p
roduct
s
pecIfIcatIons
All dimensional tolerances are + 1/16”, - 0” (+1.6mm, -0) unless otherwise stated.
8" Exhaust
CL CL CL
CL
6 1/2"
(165mm)
6 1/2"
(165mm)
IVS1, IVSR1
Exhaust Placement
Top View
IVS2, IVSR2
Exhaust Placement
Top View
8" Exhaust
CL
CL
The Dacor Integrated Ventilation System (IVS) is designed
for installation inside custom hood canopies. Proper
installation of the IVS requires proper selection of the
custom canopy materials and proper construction. Carefully
and closely follow all instructions and warnings concerning
the installation of the IVS within a combustible or non-
combustible hood canopy. Make sure that all construction
meets applicable local codes and regulations
21 1/4"
(540mm)
22 1/2"
(572mm)
6"
(152mm)
11 1/16"
(281mm)
12 1/4"
(311mm)
Electrical
Access
Holes
8" (203mm) round exhaust
with back draft damper
33 1/4"
(845mm)
34 1/2"
(876mm)
6" (152mm)
11 1/16"
(281mm)
12 1/4"
(311mm)
Electrical
Access
Holes
8" (203mm) round exhausts
with back draft damper
IVS2, IVSR2
Overall Dimensions
IVS1, IVSR1
Overall Dimensions
