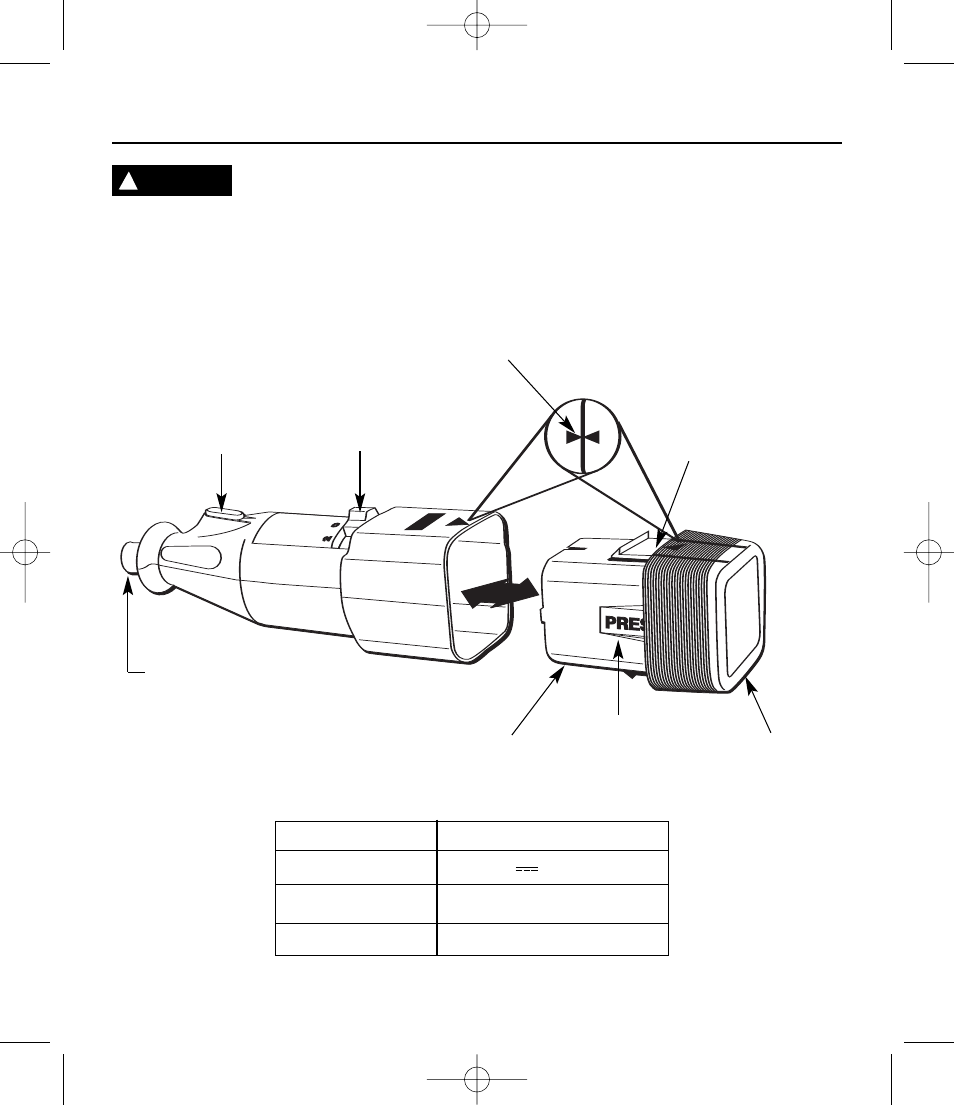

BATTERY PACK
RELEASE TAB
COLLET NUT
SWITCH
Functional Description & Specifications
Disconnect battery pack from tool or place the switch in the locked or off position
before making any assembly, adjustments or changing accessories. Such preven-
tive safety measures reduce the risk of starting the tool accidentally.
!
WARNING
Pumpkin Carving Tool
Model number
764
Voltage rating
6.0 V
No load speed
no 6,000-12,000/min
Collet Capacities
1/32”, 1/16”, 3/32”, 1/8”
BATTERY
HOLDER
BATTERY
PACK COVER
BATTERY PACK
COVER
RELEASE TAB
ALIGNMENT
MARKS
SHAFT
LOCK
BUTTON
