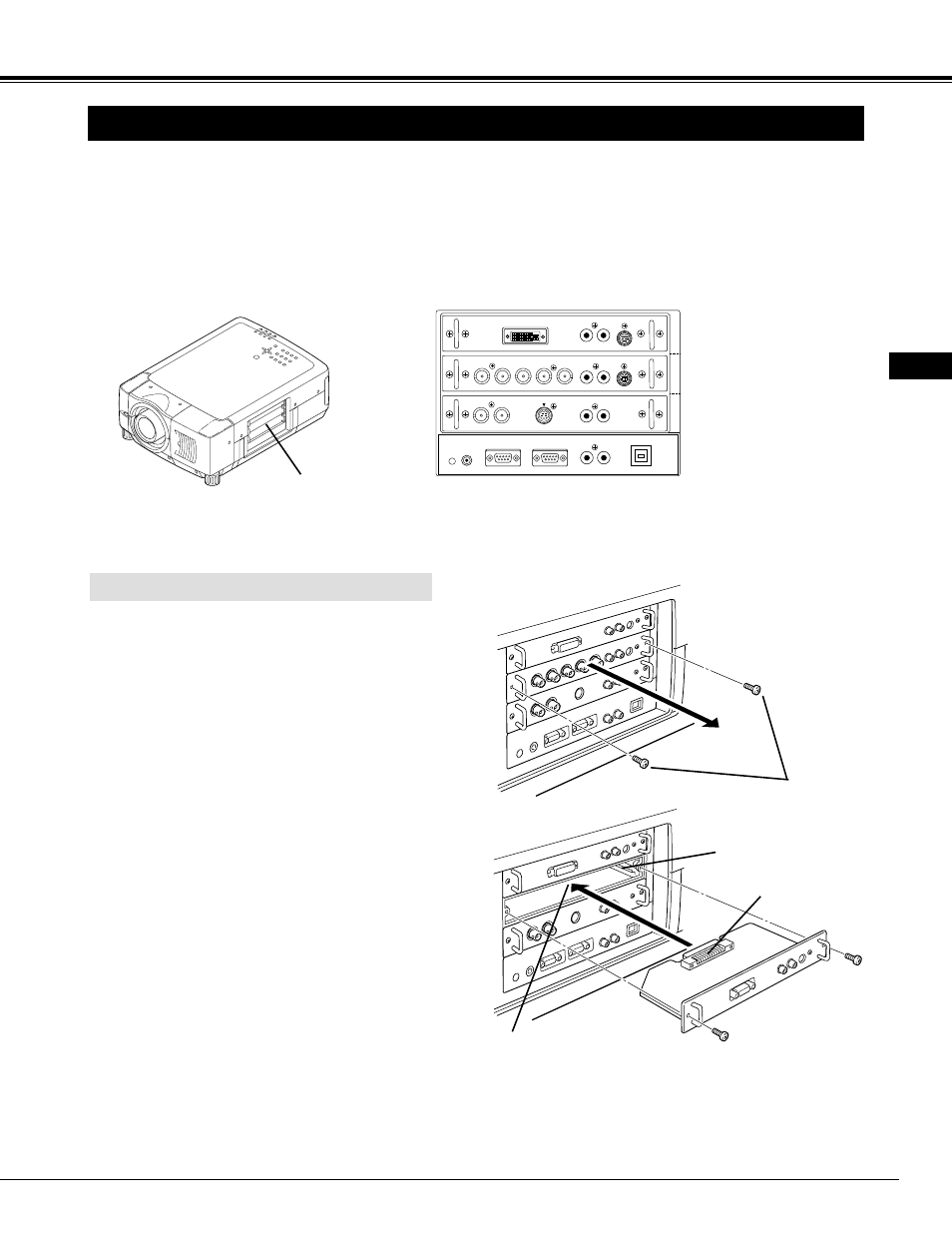

CONNECTING PROJECTOR
TERMINALS OF PROJECTOR
This projector applies various input/output terminals and 3 terminal slots for expansion to tune to diversity of signals from
computers and video equipment. 3-built-in Terminal Slots enable you to arrange desired combinations of input sources just
by changing Terminal Boards. For Terminal Boards, contact sales dealer where you purchased a projector.
Pull out terminal by holding handle.
Remove 2 Screws on terminal. 1
2
REPLACEMENT OF TERMINAL
Tighten screws to secure terminal.
Replace terminal. Insert terminal along Guide to fit Plug
into Socket. 3
4
R/Pr G/Y B/Pb H/HV V
PC control DVI
INPUT 1
R/C jack
USB
reset (mono)
(mono)
(mono)
(mono)
audio
PC control
S-video video/Y C
INPUT 2
INPUT 3
audio
audio
serial port IN serial port OUT audio OUT
R
R
R
R
L
L
L
L
INPUT/OUTPUT
TERMINALS
Screws
Guide
Socket
Plug
Figure shows HDB 15-PIN terminal (Optional parts).
DVI Terminal
5 BNC Terminal
AV Terminal
3 TERMINAL SLOTS (Factory set)
NOTE; DVI Terminal is unavailable for INPUT 3 slot.
E
NOTES ON ORDERING OR USING
OPTIONAL INTERFACE BOARD
When ordering or using Optional Interface Board
(Terminal Board), contact your sales dealer. When con-
tacting the sales dealer, tell the Optional Control
Number (Op.cont.No.) in the menu that is located under
Language Select Menu. (See page 39.)
