Page 3

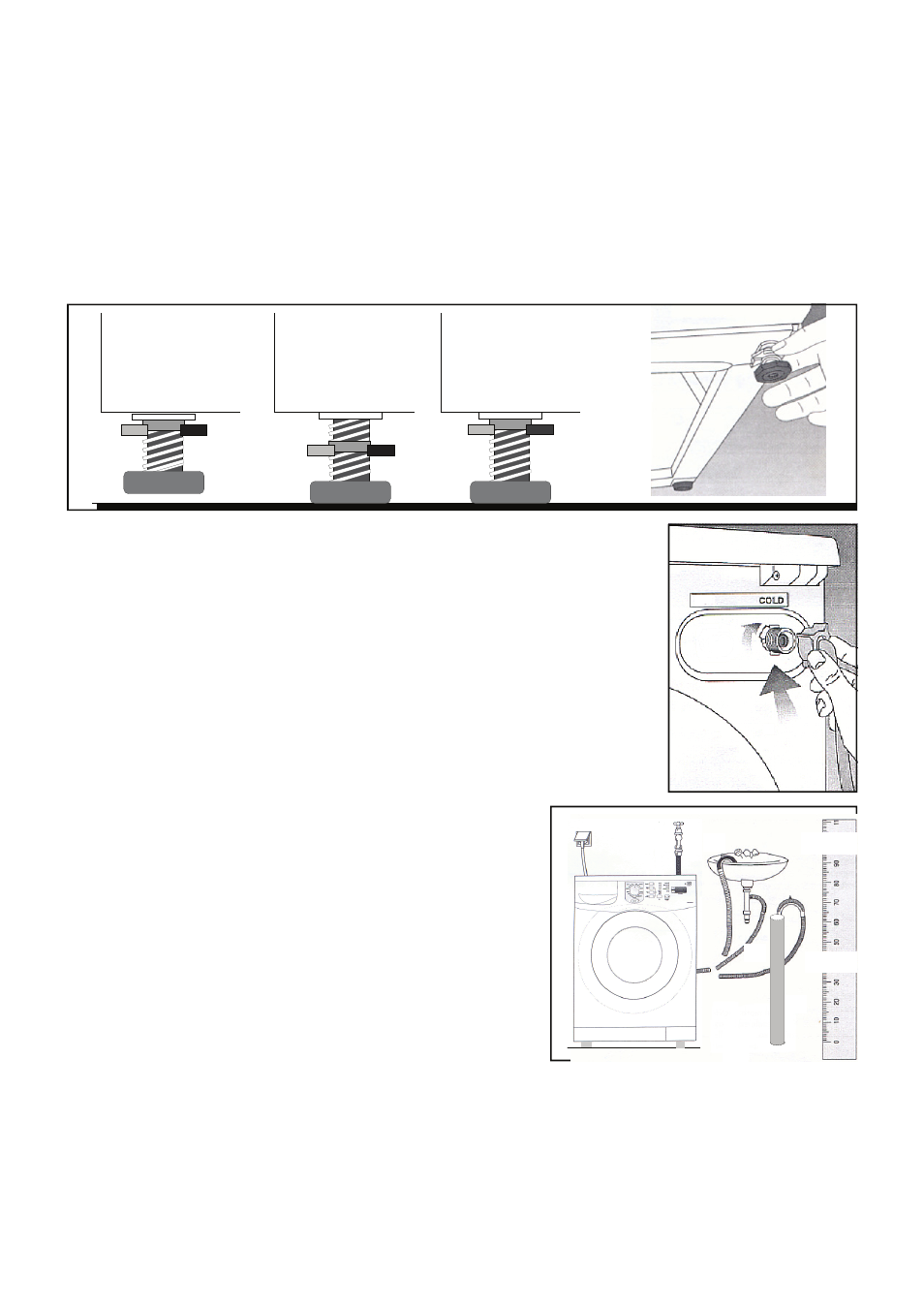

Levelling
1. The machine must stand firmly on the floor. Any instability will negatively affect
its performance.
2. The machine has two adjustable feet at the front.
3. To level the machine, loosen the plastic lock nuts on the adjustable feet.
4. Rotate the feet until the machine stands firm and level.
5. Tighten the lock nuts firmly.
6.
Caution : Never remove the lock nuts and feet from the machine.
Connecting to the cold water supply
1. The water supply should deliver 8 to 80 litres per minute.
2. Sealing washers are supplied and these should be fitted at
either end of the inlet hose.
3. Secure the angled end of the inlet hose to the water inlet at
the rear of the machine and the straight end to a 3/4 inch
BSP cold water tap.
4. Tighten both connections, open the tap and check for leaks.
5. We recommend that the tap be closed when the machine is
not in use.
Water drainage
Draining into a dedicated outlet pipe (A)
1. The outlet pipe must have an inside diameter
of at least 40 mm.
2. The end of the pipe must be positioned between
400 mm. and 1000 mm. above floor level.
3. Secure the hooked end of the drain hose into
the outlet pipe.
Draining into a sink or bath (B)
1. The drain hose may be hooked over the edge
of a sink or bath in such a way that the end can
not be immersed in the collected waste water.
2. The outlet end of the hose must be between 400 mm. and 1000 mm. above floor
level.
Please note: The outlet hose must be kept free of kinks or restrictions as these will hinder
the operation of the machine.
FLOOR
A
A
B
400
1000
NOT LEVELLED NOT LOCKED
LEVELLED
AND LOCKED
