7

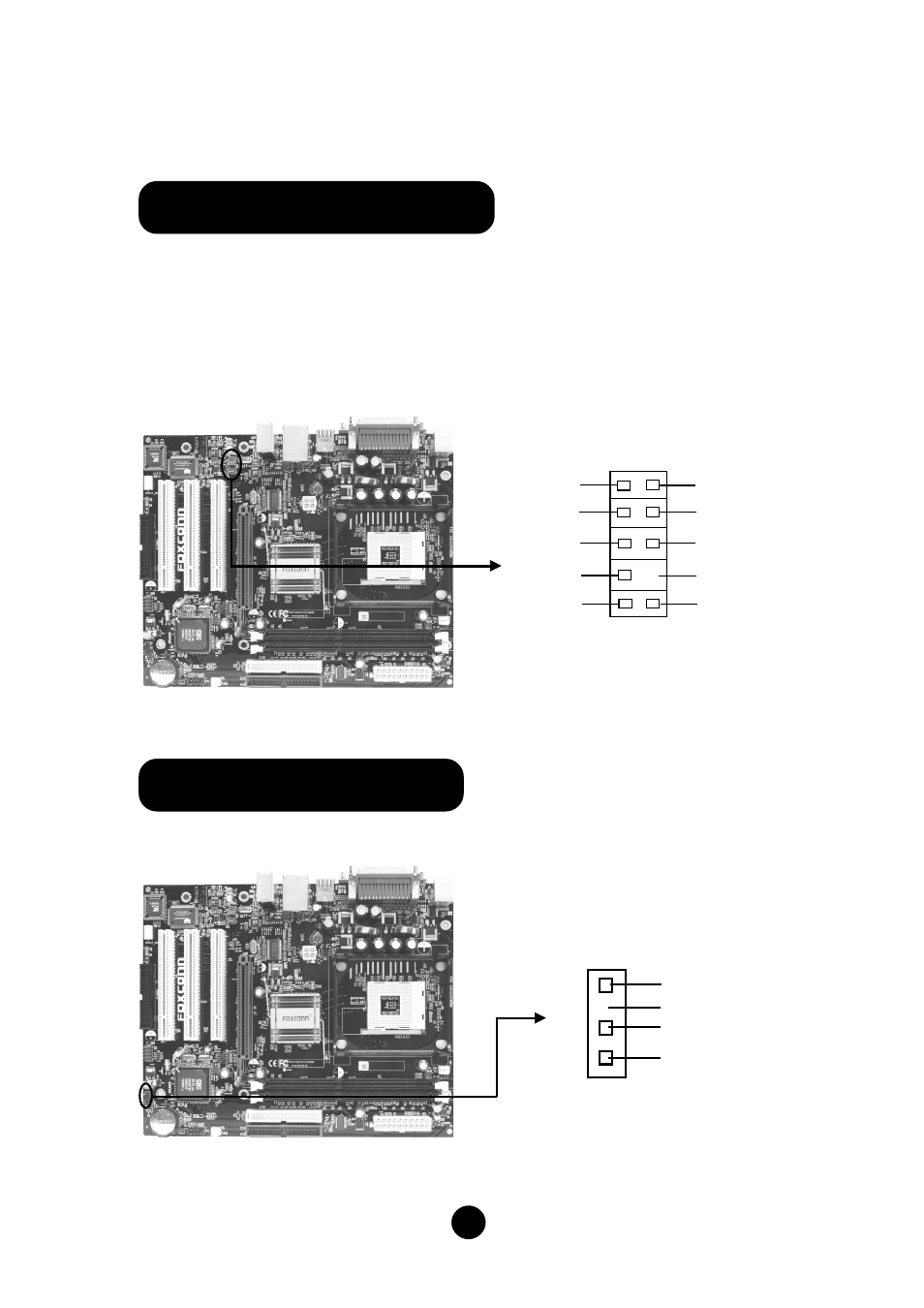

7. Front Audio Connector
The audio interface provides two kinds of audio output choices: the Front Audio,
the Rear Audio. Their priority is sequenced from high to low (Front Audio to Rear
Audio). If headphones are plugged into the front panel of the chassis (using the
Front Audio), then the Line-out (Rear Audio) on the rear panel will not work. If you
do not want to use the Front Audio, pin 5 and 6, pin 9 and 10 must be SHORT, and
then the signal will be sent to the rear audio port.
The speaker connector is used to connect speaker of the chassis.
8. Speaker Connector
F_ AUDIO
SPK+
NC
SPK-
Empty
SPEAKER
MIC AGND
MIC_VCC A5V
R_OUT FR_OUT
NC Empty
L_OUT FL_OUT
1 2
9 10
1
