Foxconn P55A Series User Manual
Page 24
17
2
17

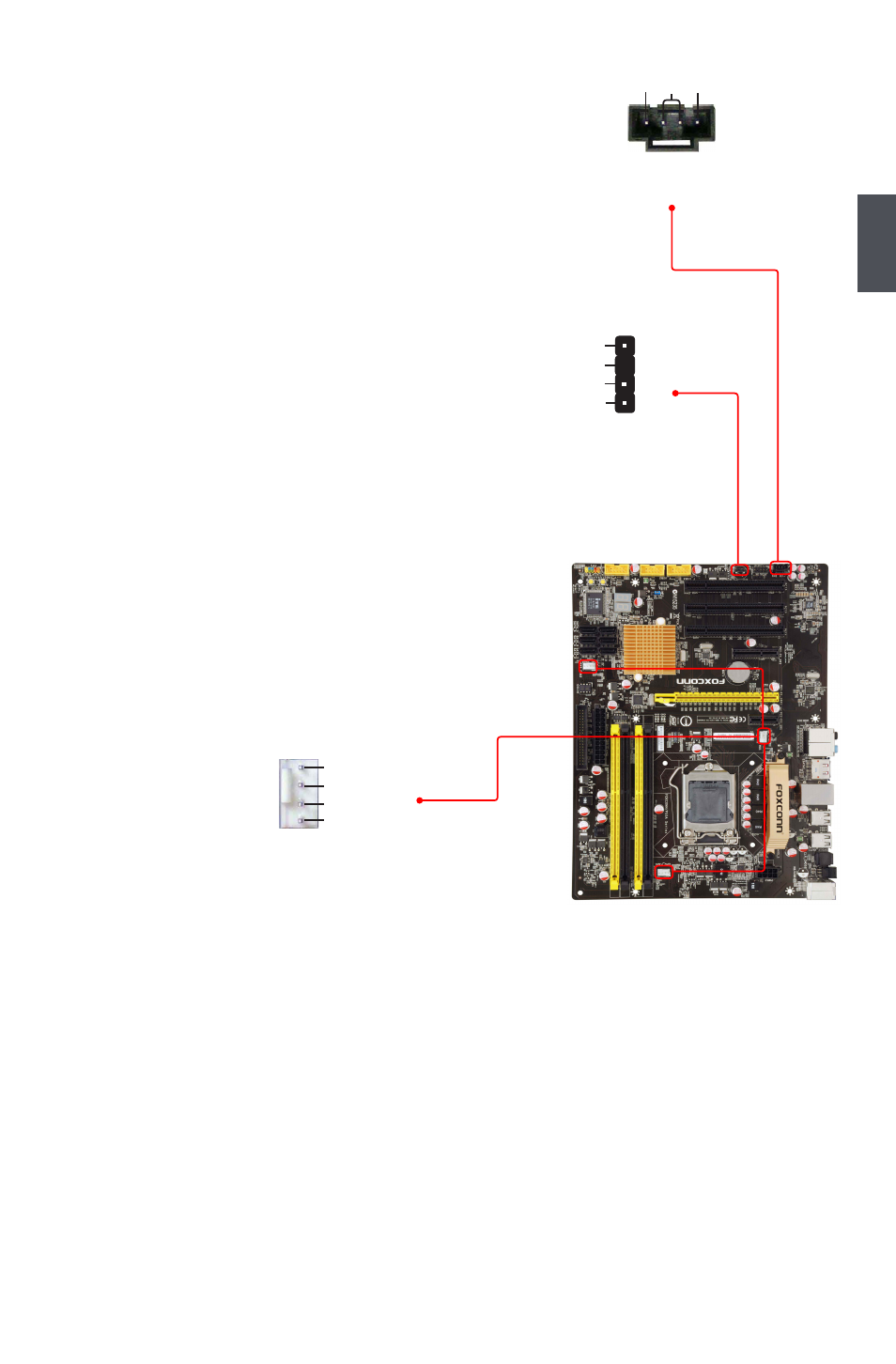

Audio Connector : CD_IN
CD_IN is a Sony standard audio connector, it can be
connected to a CD/DVD-ROM drive through a CD/DVD
audio cable.
Speaker Connector : SPeAKeR
The speaker connector is used to connect speaker of
the chassis.
fan Connectors : CPU_fAN1, SYS_fAN2/3
There are three main fan headers on this motherboard.
The fan speed can be controlled and monitored in “PC
Health Status” section of the BIOS Setup. These fans
can be automatically turned off after the system enters
3, S4 and S5 sleeping states.
NC
SPKJ
EMPTY
SPEAKER
SPKJ
1
2
3
4
CD_IN
CD_L GND CD_R
1
CPU_FAN1/SYS_FAN2/3
GND
POWER
SENSE
CONTROL
1
