3.

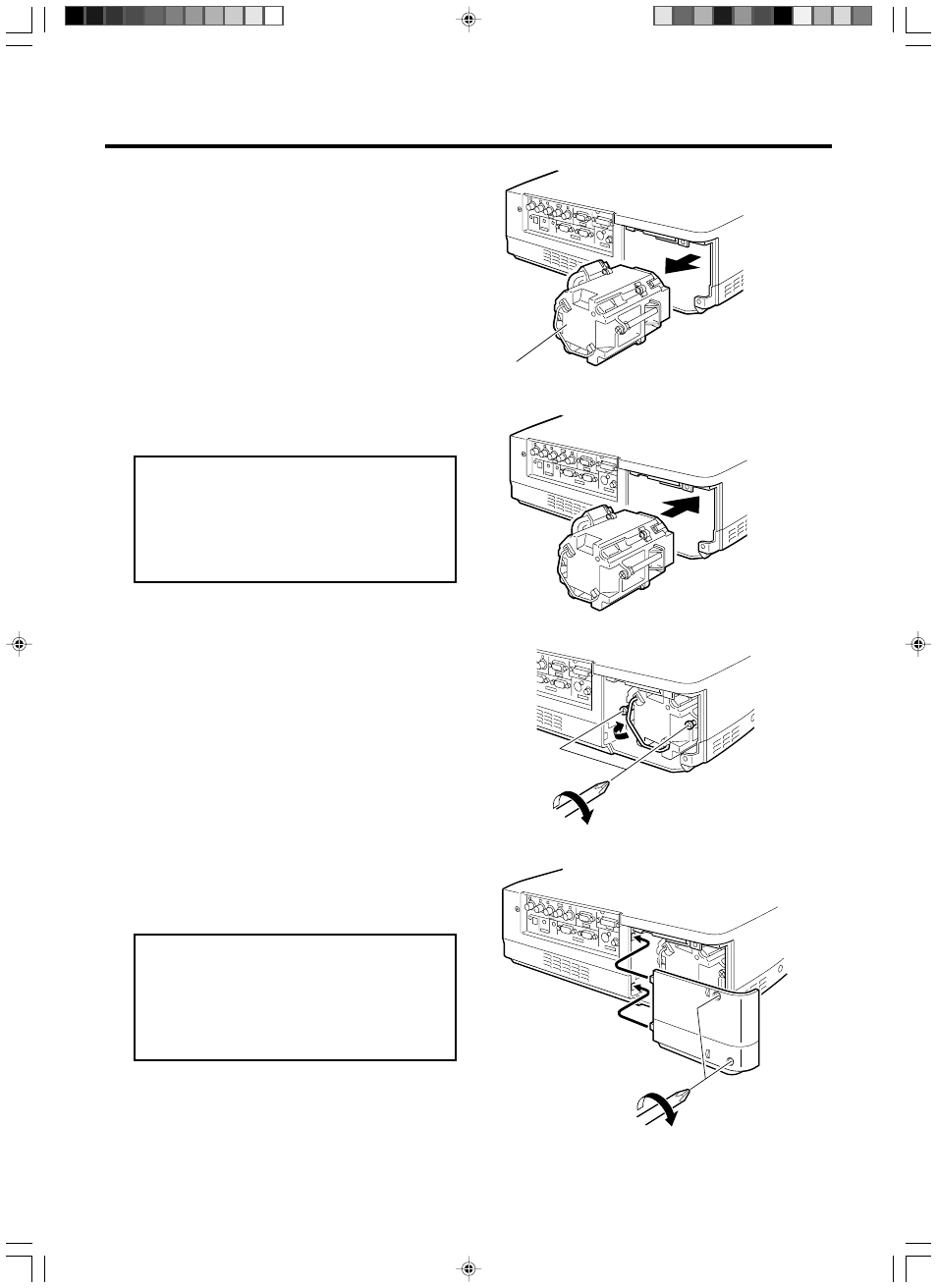

Remove the lamp unit.
Replacing the Lamp
4.
Insert the new lamp unit until it is fully in.
5.
Close the handle, and tighten the screw.
• Tighten the two screws with a ª screwdriver.
6.
Attach the light-source lamp cover and tighten
the screw.
• Tighten the two screws with a ª screwdriver.
Note
• When closing the lamp cover, please insert the left
side (with the two claws) in first and then ensure that
the protruding part found on the reverse side of the
cover fits snugly into the hole of the main unit. As
this protrusion acts as a switch, misfitting leads to
power not being able to flow in.
Caution
• Neither touches the glass surface of the lamp di-
rectly with your hand nor stains it. If you touch it with
a bare hand, oil or other substances on your hand
may adhere to the lamp, possibly preventing it from
performing as specified and therefore lead to a short-
ened lamp life, a darkened screen, etc.
Lamp unit
