28

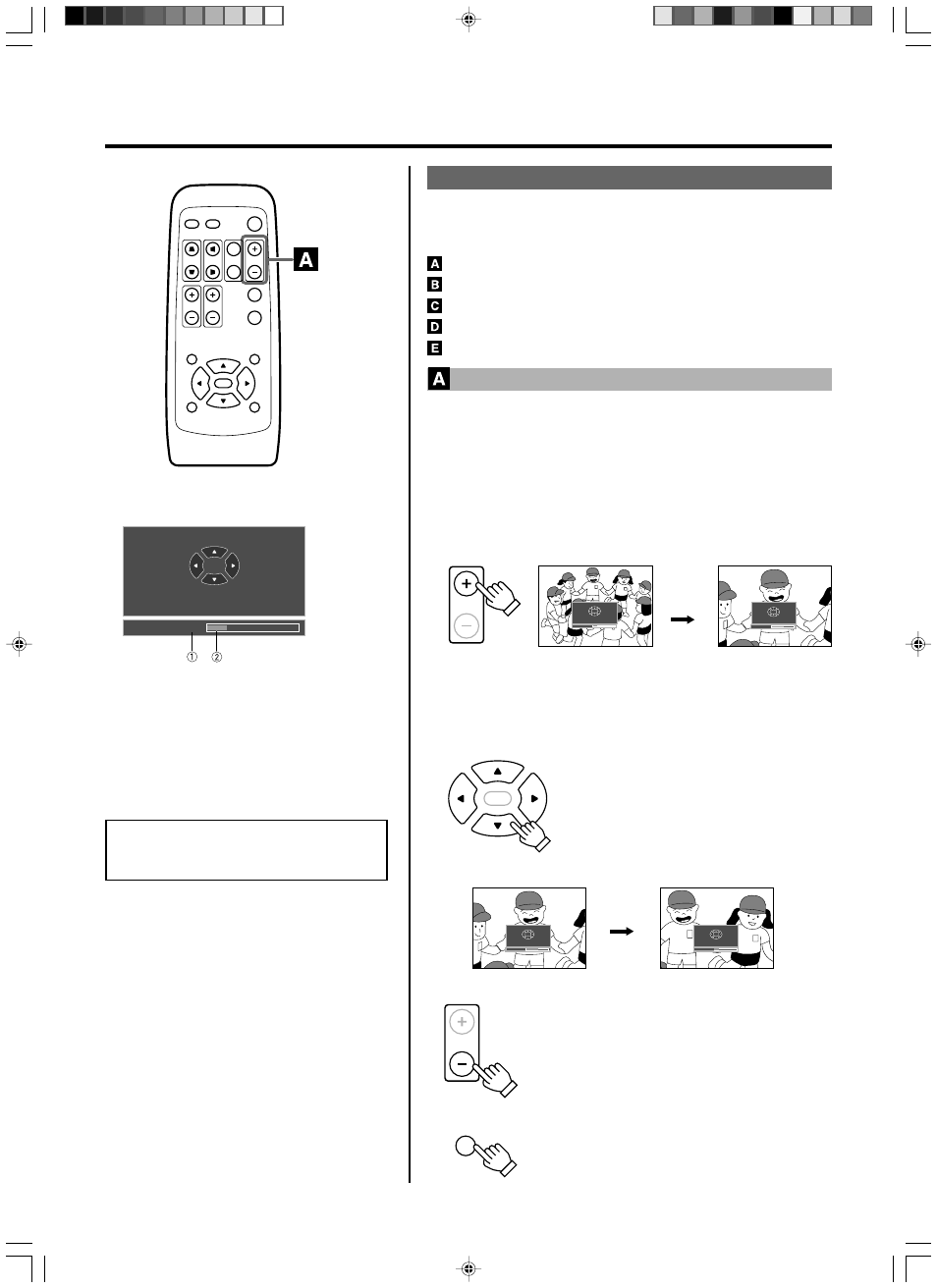

Frequently used Convenient Functions
When an image is projected onto the screen, the following operations
can be performed directly without going through the menu operation.
(
☞ page 27 for VOLUME operation.)
DIGITAL ZOOM
HIDE
FREEZE
KEYSTONE
QUICK ALIGN. (quick alignment)
Basic Operations
Note
• The quality of the zoomed image is reduced
in comparison with the original.
Ⅵ “Digital zoom” Display
1 Magnifying power display
“x1.0”: 1 time (standard) “x2.0”: 2 times
“x1.2”: 1.2 times “x2.5”: 2.5 times
“x1.4”: 1.4 times “x3.2”: 3.2 times
“x1.6”: 1.6 times “x4.0”: 4 times
2 Level Display
Level shown is based on selected magnification.
Enlarging the Image
We can zoom in while not changing the size of the projected image. After
zooming, the position of the image displayed can be moved.
• This cannot be done using the projector buttons. Please use the re-
mote control unit.
1.
Press [DIGITAL ZOOM]
ª
• The “Digital zoom” display appears on the screen and the projec-
tor changes to the Digital Zoom Mode.
• The image on the screen can be enlarged in 8 stages by pressing
this button (including the standard size).
To reduce the size of the image
2.
While “Digital zoom” display appears on the screen, you
can move the zoomed image with the cursor buttons on
the remote control
Ⅵ To see the upper part of zoomed image:
Press ᮡ
Ⅵ To see the lower part of zoomed image:
Press ᮢ
Ⅵ To see the right part of zoomed image:
Press ᮣ
Ⅵ To see the left part of zoomed image:
Press ᮤ
QUICK ALIGN.
PC VIDEO
VOLUME
PRESET HIDE
ENTER
MENU EXIT
FREEZE
OPERATE
V-KEYSTONE H-KEYSTONE SCREEN DIGITAL
ZOOM
FOCUS
W
S
Digital zoom X1.2
Direction buttons available DIGITAL
ZOOM
“x2.0”
Digital zoom X1.2
Direction buttons available
Digital zoom X2.0
Direction buttons available
Digital zoom X2.0
Direction buttons available
Digital zoom X2.0
Direction buttons available
ENTER
DIGITAL
ZOOM
PRESET
When the [DIGITAL ZOOM] · button is pressed, the pre-
viously enlarged image will be reduced progressively until
it returns to the original size.
To reduce the image to the original size
When the [PRESET] button is pressed, the image will re-
turn to its original size and position.
(Please operate while “Digital zoom” is displayed.)
Remote
control unit
Remote control unit
