Use multi-core flexible cable with min. conductor size 1.5 mm² for wiring.
1. Unscrew screws , remove housing cover Fig. 6
2. Unscrew union nuts of cable entry .
The electrode terminal can be turned through +/– 180°.
3. Loosen screw with 17 mm spanner but do not remove. Fig. 7
4. Turn electrode terminal into desired direction (+/– 180°).
5. Tighten screw slightly.
6. Remove terminal strip from board.
7. Connect terminal strip according to wiring diagram, connect PE connection .
8. Insert terminal strip.
9. Replace housing cover , fasten screws and install cable entry.
■
Fuse supply cables with T 250 mA.
■
The connection of the switchpoints 2 and 3 must be effected on
site (pump contactor, auxiliary relay)!

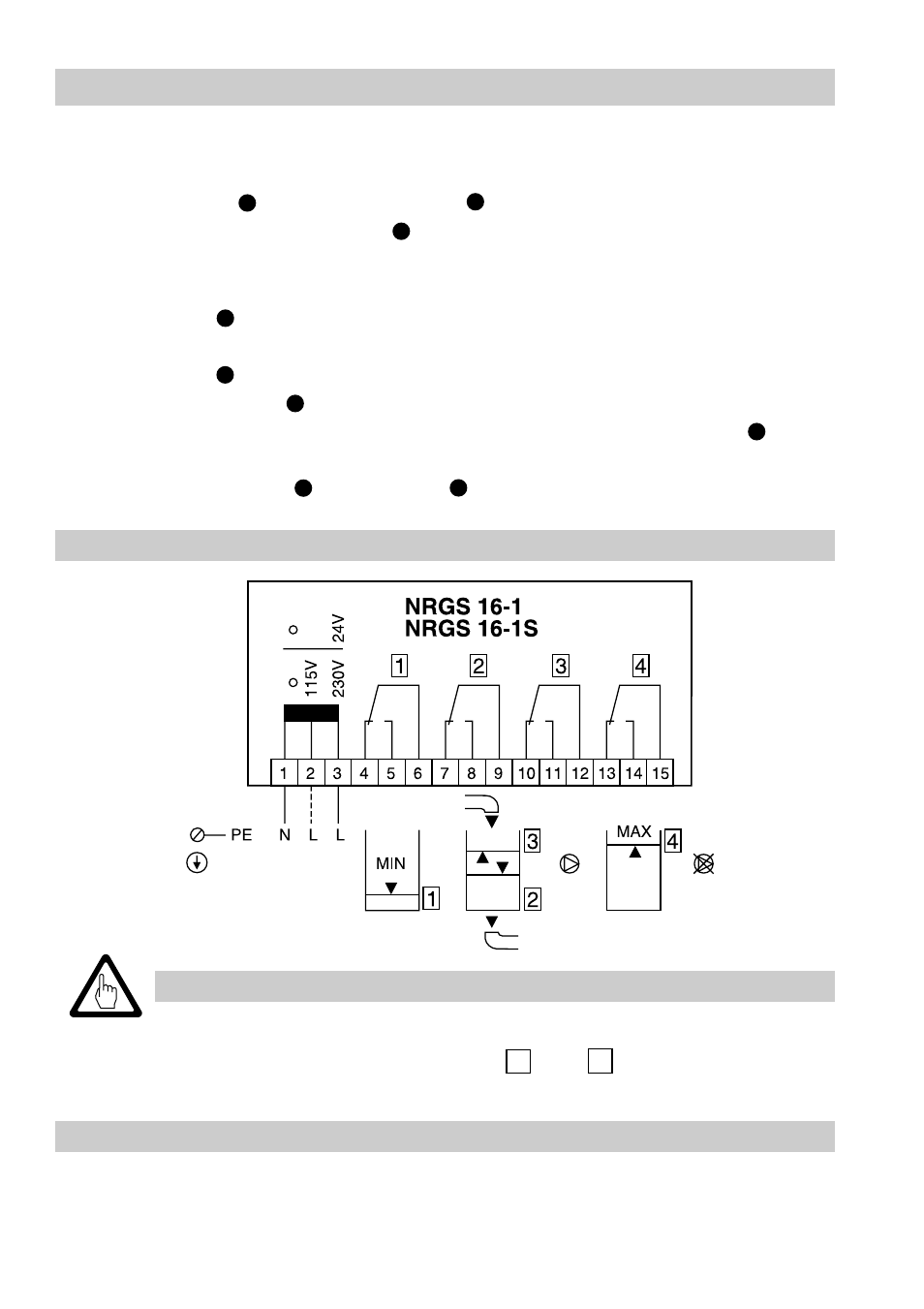

Wiring
Tools
Attention
Wiring diagram
■
Screwdriver for cross head (“Phillips”) screws, size 1
■
Screwdriver for slotted screws, size 2.5; completely insulated according to VDE 0680
■
Open-end spanner 17 mm A. F.
Fig. 8
E
E
E
E
E
G
G
G
G
G
F
F
F
F
F
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
M
M
M
M
M
N
N
N
N
N
G
G
G
G
G
E
E
E
E
E
Mains
