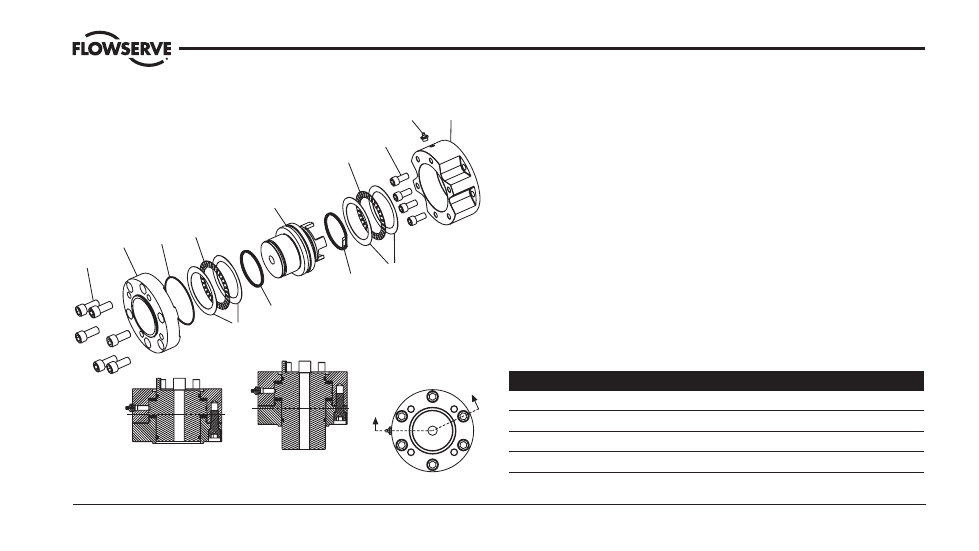

Exploded view of thrust base (MX-85 only) Reassembly – Unit MX-85
Refer to the figure at left.
1. Clean the stem nut, washers, and bearing(s) thoroughly.
2. Slide the second set of thrust washers and bearing in place if removed.
3. Install stem nut.
4. Install first set of thrust washers and bearing.
NOTE: Order of assembly for thrust washers and bearing must be as
follows: washer, thrust bearing, washer.
Thrust baseplate installation
Mount baseplate to thrust base housing and install the six socket head cap
screws to the proper torque per the table below.
Mechanical Installation of MX
Screw Size Torque (ft-lb)
M8 or 5 /
16
inch 12-14
M10 or 3 /
8
inch 25-30
M12 or 1 /
2
inch 40-50
M16 or 5 /
8
inch 90-100
M20 or 3 /
4
inch 180-200
Section A-A
View shown
with standard nut
Section A-A
View shown
with extended nut
