6 LMENIM2312 • Accutronix MX Quick Mounting Instructions
Flow Control
Limitorque Actuation Systems

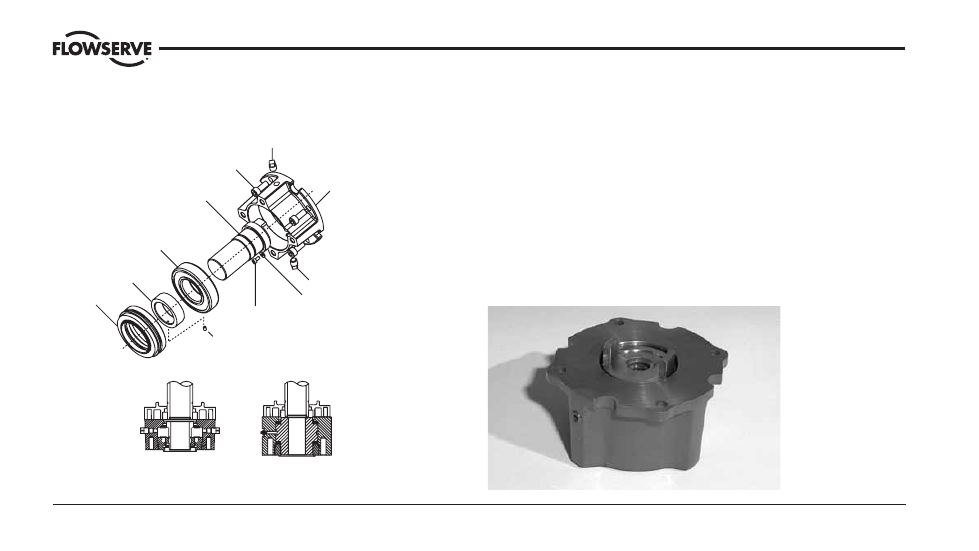

Exploded view of B1 base Type “A” Bases: Thrust-only Applications
Standard A1/A1E Base
The standard MX actuator thrust base is the A1 and may be bolted
directly to the actuator. The thrust base contains a bronze alloy thrust
nut that may be machined to suit the valve stem.
An A1E thrust nut can be provided and may be installed to reach
shorter stems.
A1 base
Housing,
torque/
thrust
Pipe plug
Washer (M4)
Socket head
cap screw (M4 x 8)
Socket head set screw
Retainer, bearing
Pilot, torque/thrust
Bearing
Torque nut,
(B1)
Socket head cap
screw (M8 x 20)
Pipe plug
MX-05 B1 MX-40 B1
