Flowserve WXCL UltraSwitch User Manual
Page 10
Max Safe Gaps:

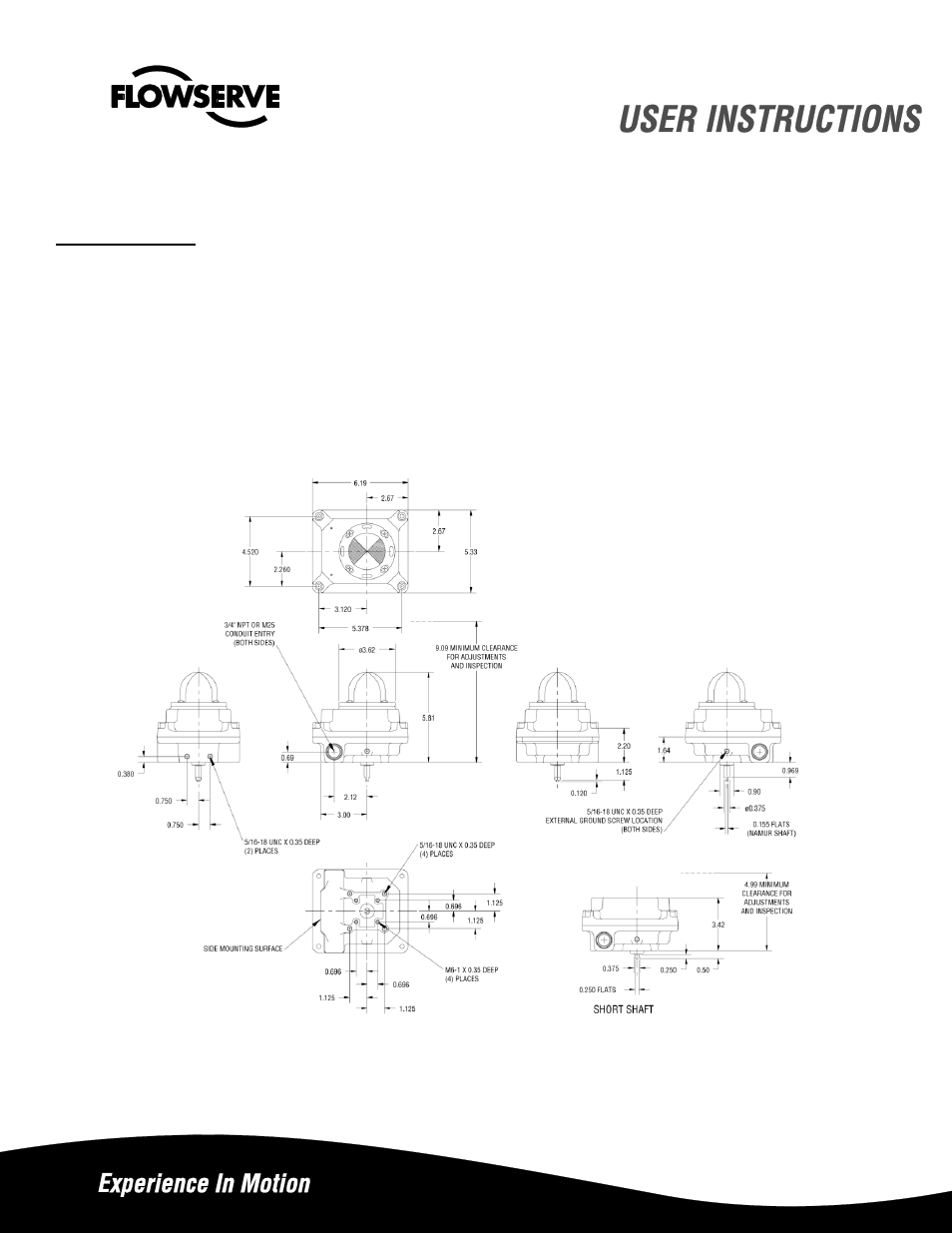

GA Drawings.
Flamepath
Maximum Gap (mm) Comment
Cover and base
0.038
Flanged joint
Operating rod and cover bushing
0.088
Cylinderical spigot joint
Cover and bushing
0.00
Interference fit
Operating rod and base bushing
0.088
Cylinderical spigot joint
Base and bushing
0.00
Interference fit
