Inspection, installation, and mounting procedures – Flowserve PT Series Limitorque User Manual
Page 5
5
Limitorque PT Series Worm Gear Operator FCD LMENIM2001-00 – 01/10
flowserve.com
2
Inspection,
Installation, and
Mounting Procedures

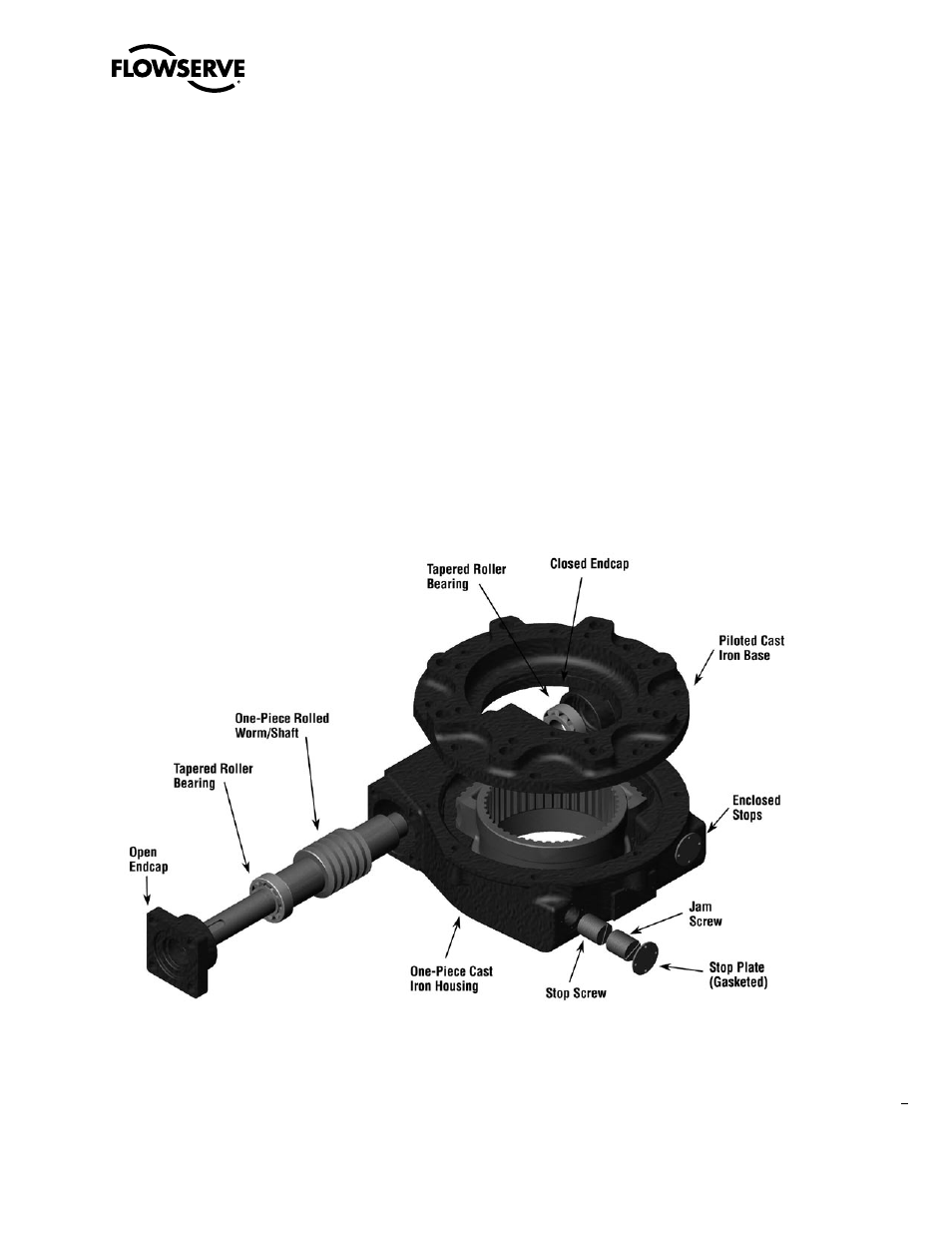

Figure 2.1 – Typical PT Exploded View
trical operation
c
WaRnIng: Do not manually operate the PT operator with devices other than the installed handwheel or wrench
nut. Using additive force devices (cheater bars, wheel wrenches, pipe wrenches, or other devices of this nature)
on the operator handwheel or wrench or wrench nut may cause serious personal injury and/or damage to the
operator or valve.
