Flowserve LPS Pneumatic Heavy-Duty Actuator Series User Manual
Page 7
7
LPS Series Heavy-Duty Actuators FCD LFENIM0001-02-AQ – 5/15
flowserve.com
a
WARNING: ONLY for LPS-30 model and larger sizes
Figure 4: Vent Valve Correct Position
c
DANGER: For lifting and handling, use the eyebolts on
the housing. The eyebolt on the spring can is only for the
mounting/dismounting steps or eventually for balancing
the actuator.
Figure 1: Lifting Lug for
Spring Can Lifting Only

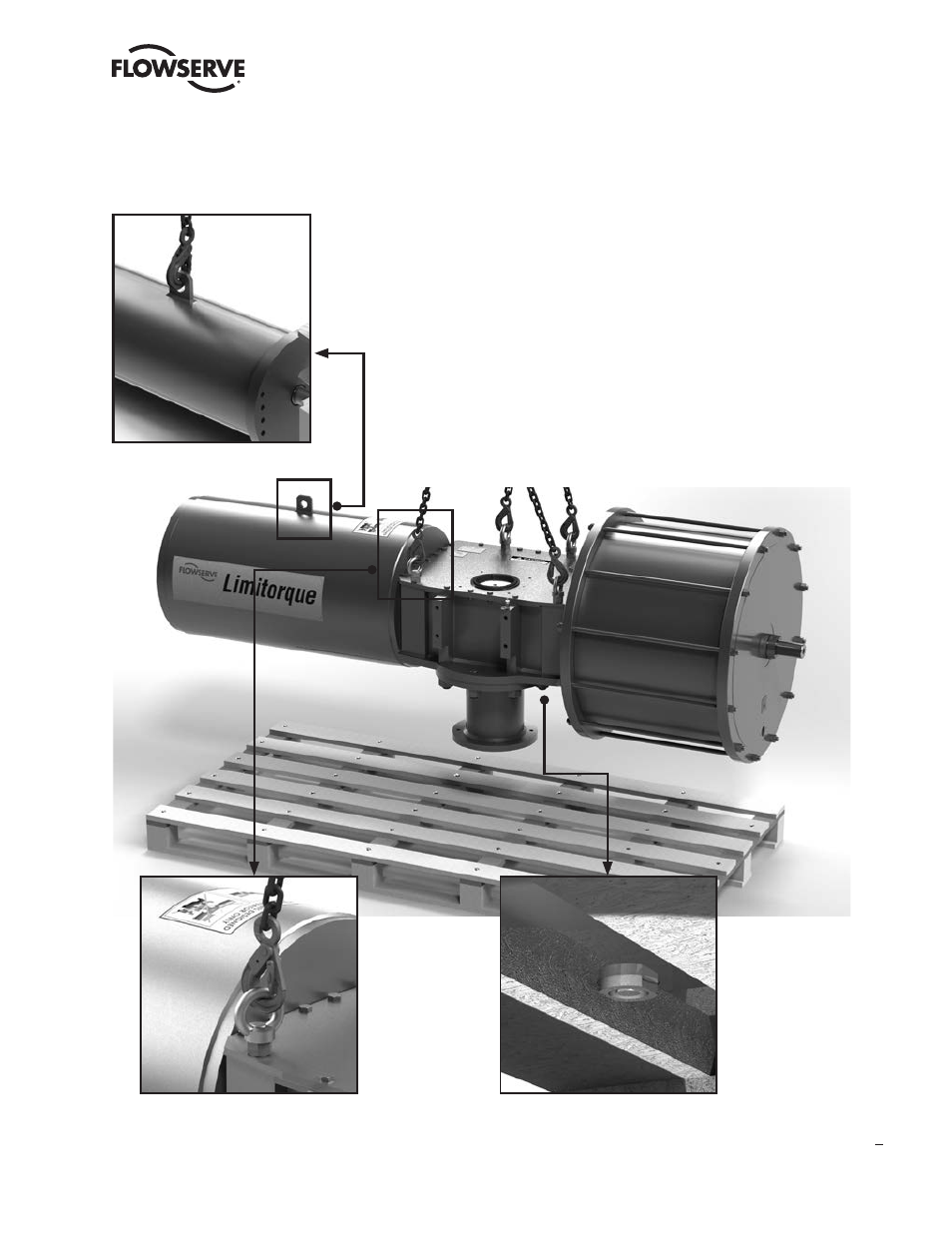

Figure 2: Correct Lifting of Pneumatic Single Acting Actuator
Figure 3: Use of Eyebolt for the Scotch Yoke
Housing Cover
