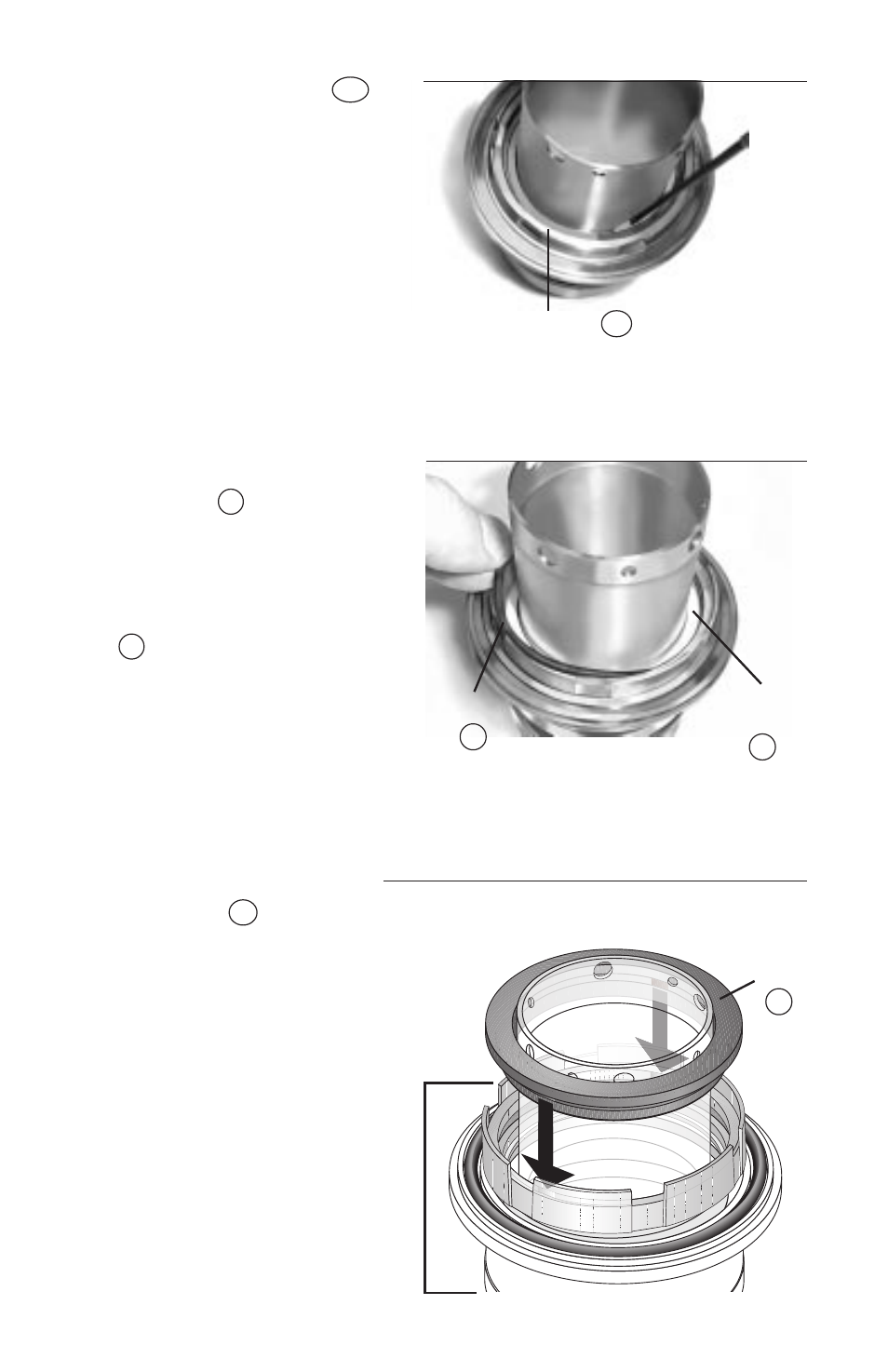

4.12 Insert the retaining ring RR
into the groove in the sleeve
assembly while pressing
down on the rotor carrier.
Make sure that the retaining
ring snaps completely into
the groove in the sleeve
assembly. (
Figure 14 )
4.13 Insert the outboard vibration
dampener M into the rotor
carrier. Make sure that the
vibration dampener is fully
seated at the bottom of the
rotor carrier. Place the
outboard mating ring O-ring
6 in the O-ring groove of
the rotor carrier, which is
behind the surface with two
drive flats. (
Figure 15 )
Figure 14
8
Retaining Ring RR
Figure 15
O-ring
6
Vibration
Dampener
M
4.14 Assemble the outboard
mating ring 3B into the
sleeve/rotor carrier
assembly, aligning
the drive flats on the
carrier and mating ring.
(
Figure 16 )
Figure 16
Mating
Ring
3B
Sleeve / Rotor
Carrier Assembly
