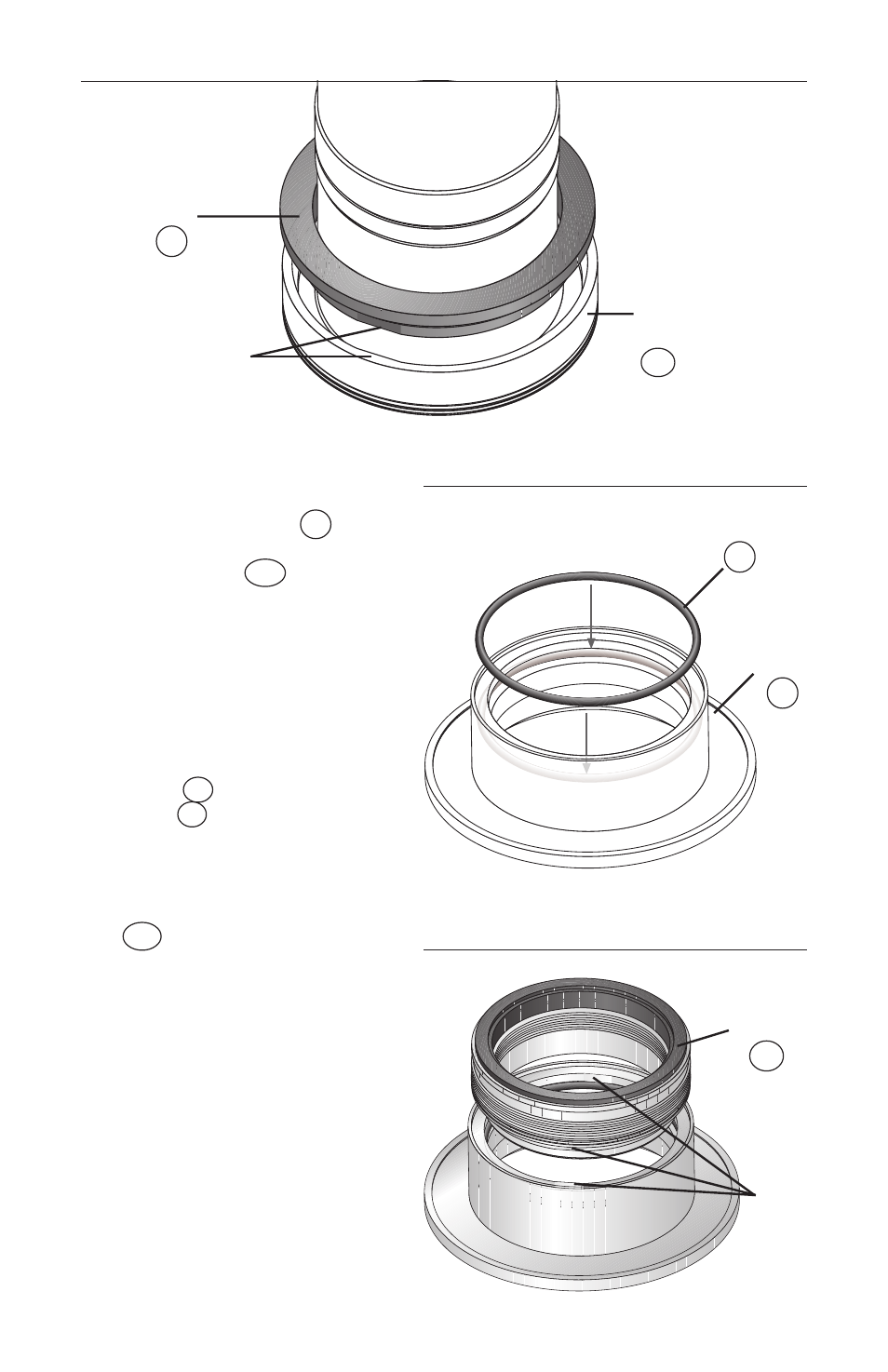

4.5 Align the two flats on the
inboard mating ring 3C with
the two flats on the inside of
the drive ring
10A in the
sleeve end housing, and
press the mating ring into
place using finger pressure
only. (
Figure 8 )
4.6 Place the inboard bellows
O-ring P1 into the inner
gland 1C . ( Figure 9 )
4.7 Align the two flats on the
inboard bellows assembly
34A with the two flats on the
inside of the inner gland, and
press the bellows in place
using finger pressure only.
Be careful not to over compress
the bellows assembly.
( Figure 10 )
6
Figure 9
Figure 8
Drive Flats
10A
Drive
Ring
Figure 10
34A
Inboard
Bellows
Assmbly
Drive
Flats
3C
Inboard
Mating
Ring
Inner
Gland
10A
O-ring
P1
