4.8 Place the inner gland/mating
ring assembly face down
onto the sleeve/bellows
assembly. (

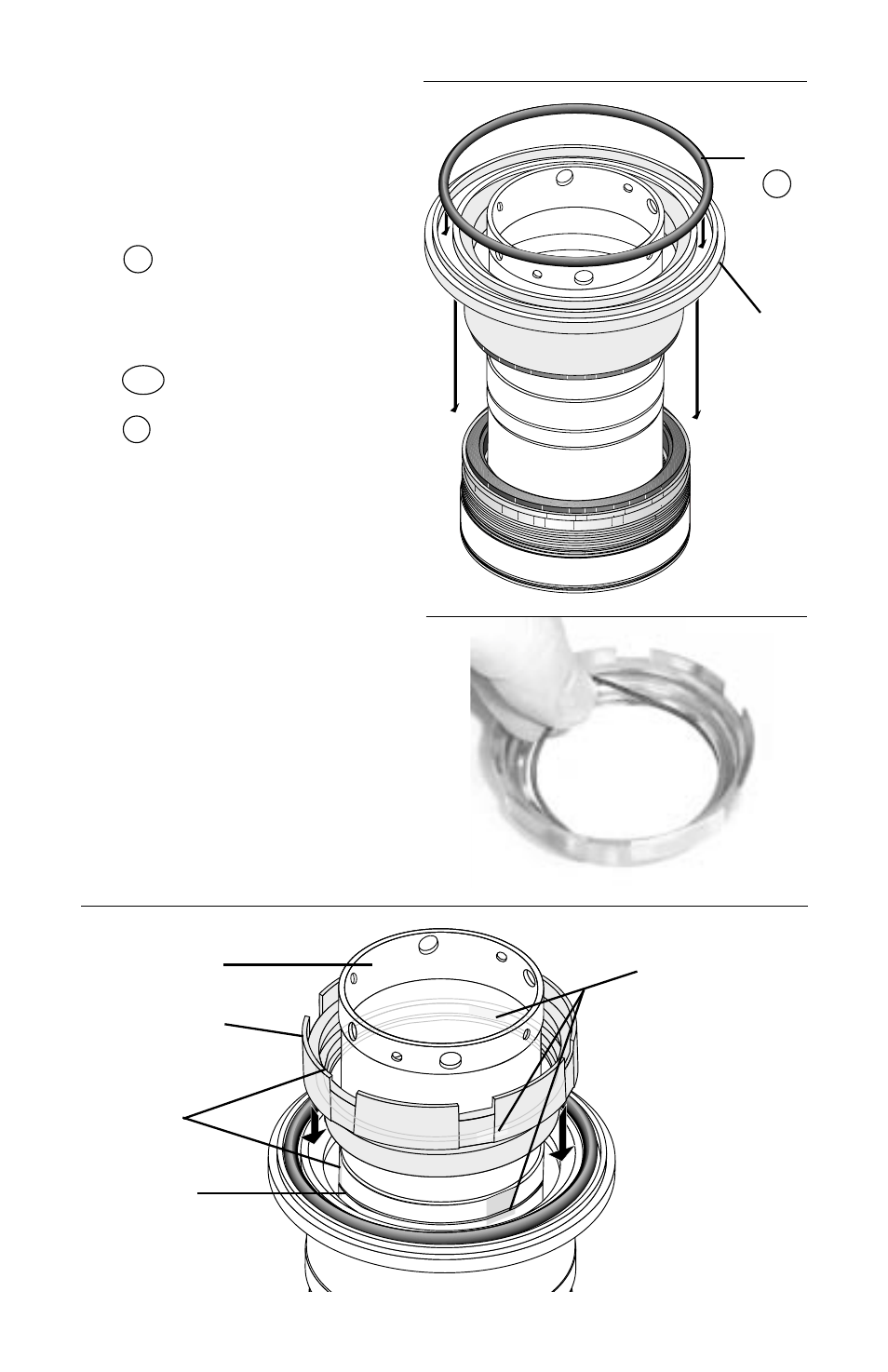

Figure 11 )
4.9 Install the inner gland O-ring
G1 into the face groove in
the inner gland. ( Figure 11 )
4.10 Place the rotor carrier O-ring
11A in the smallest diameter
groove of the rotor carrier
14 . (Figure 12)
4.11 Align the three drive flats on
the rotor carrier with the drive
flats on the sleeve and press
the rotor carrier on the sleeve
with the pumping vanes face
up. (
Figure 13 )
Figure 11
G1
O-Ring
Figure 13
Drive Flats
Drive Flats
Rotor Carrier
Sleeve
Retaining
Ring
Groove
Figure 12
Inner
Gland
&
Mating
Ring
Assembly
