Directed Audio model 1200/5 - Manual (Page 11)

11
© 2003 Directed Electronics, Inc
FREQ FREQ FREQ
50Hz50Hz30Hz 500Hz500Hz250Hz
LPF LPF HPF HPF
FLAT FLAT
PHASE SUBSONIC BASS EQ
OFF OFF 0 ON ON 180
GAIN
INPUT INPUT
3+4 SUB
GAIN GAIN
MIN MIN MIN MAX MAX MAX
OFF OFF ON ON
1+2 3+4 SUB

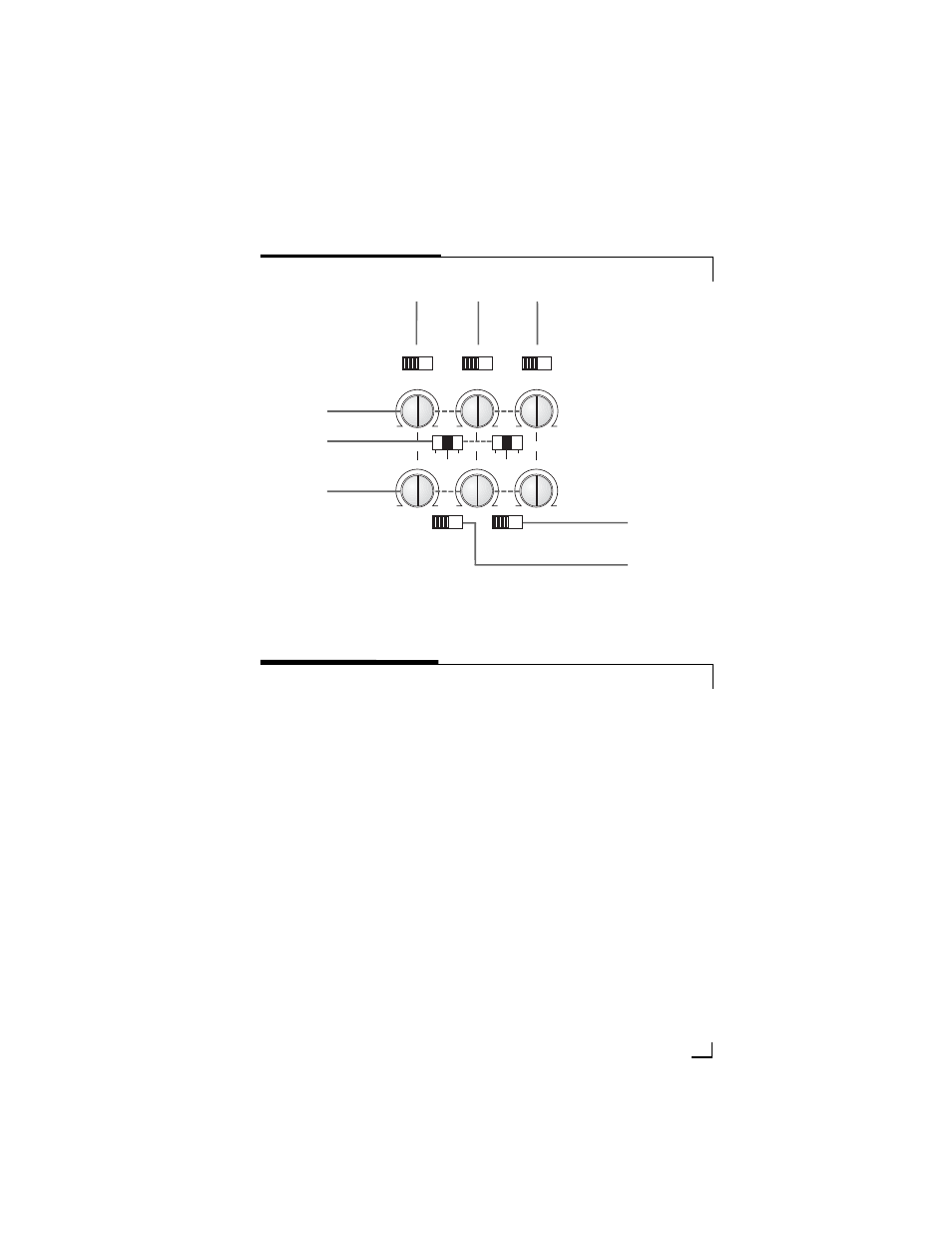

FIGURE 3—AMPLIFIER CONTROLS 1200/5 TOP
2
1
6
3
5
7
8
4
Control Panel Cover
The gain and filter controls are located
under a control panel cover on top of
the amplifier. The control panel cover
must be removed to gain access to the
gain and filter controls.
Remove/Install
Four Allen-head screws hold the control
panel cover to the amplifier top panel,
one at each corner. They can be
removed with the wrench supplied in
the hardware pack.
TOP PANEL FEATURES
