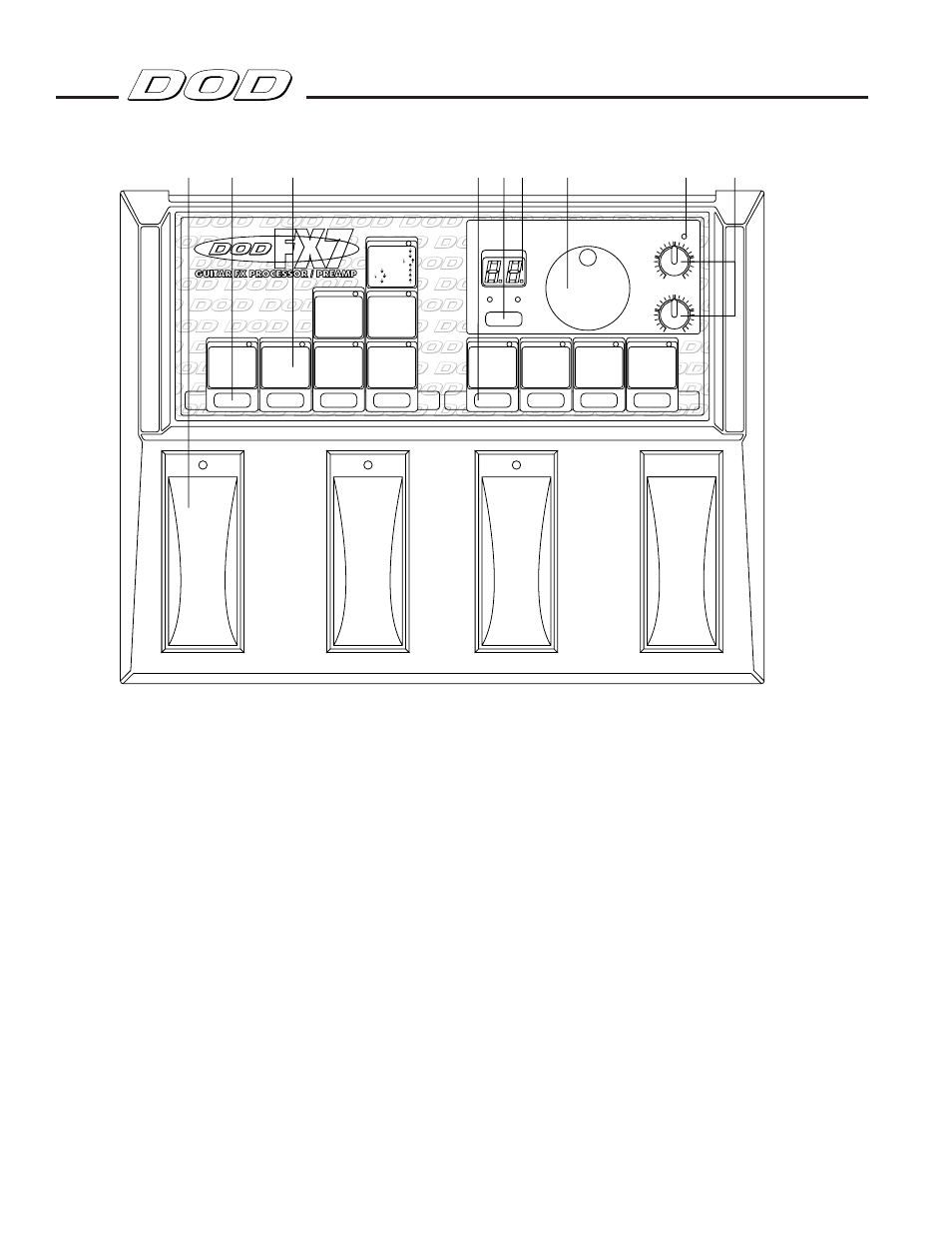

Front Panel Controls
The front panel of the FX7 is laid out in a simple and straightforward
way to make programming as easy as possible. Functions of each sec-
tion are:
1) PROGRAM AND BANK SELECTOR FOOTSWITCHES- These
footswitches give you access to the User Programs in the FX7
and allow you to change User Banks.
2) EFFECT SELECTOR BUTTONS (DIGITAL FX)- This row of but-
tons lets you select an effect group for editing, or to bypass
the group completely. This group includes Master Level,
Reverb, Delay, Detune, Pitch Shift, Phase, Tremolo, Wah,
Chorus, and Flange.
3) EFFECT GROUPS - The FX7's effects are divided into 11
groups and labeled on the front panel. When lit, the LED in
each group indicates that an effect in the group is active.
\ 4) EFFECT SELECTOR BUTTONS (PREAMP) - This row of four
buttons lets you change your basic preamp section settings.
The preamp section consists of the Gate, EQ, Distortion, and
Compressor groups.
5) STORE BUTTON - Stores your custom Programs in the User
memory location you select.
