2
Primeros pasos
Conecte el cable de la
antena
Puede configurar el sistema de varias maneras, según los componentes
adicionales (VCR, reproductor de DVD o receptor A/V) que elija. Por ahora,
use la configuración más simple para comprobar la antena y los cables.
• Asegúrese de que el Receptor Digital de DIRECTV no esté conectado a la
corriente eléctrica.
• Conecte el cable coaxial de la antena al conector
SATELLITE IN
de la parte
posterior del Receptor Digital de DIRECTV. Consulte la figura
correspondiente que hay más abajo y en la página siguiente.

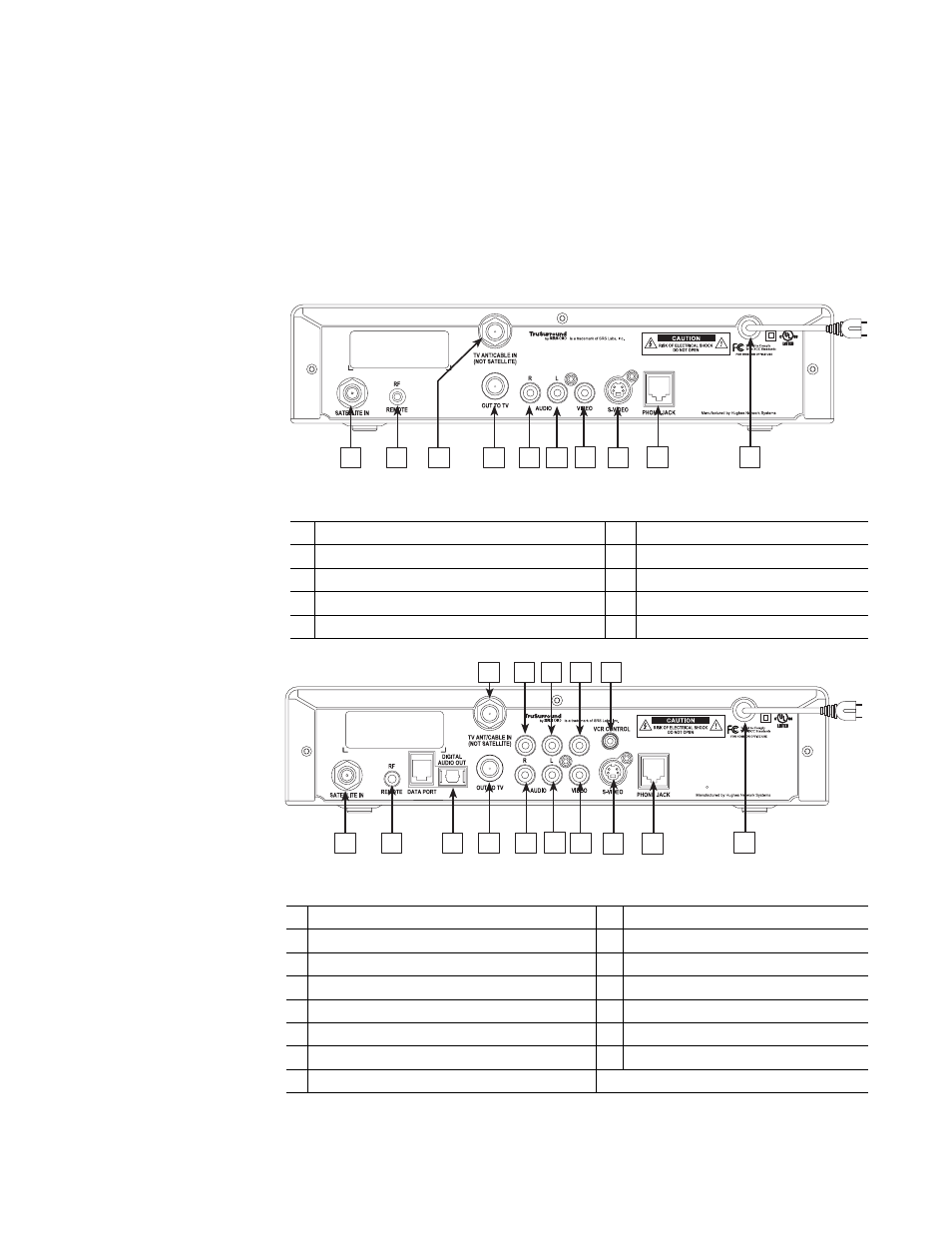

Tabla 1: Conexiones del panel posterior - modelo GAEB0 de Receptor Digital de DIRECTV
1
Conector SATELLITE IN
6
Conector AUDIO OUTPUT (L)
2
Conector de antena RF REMOTE
7
Conector de VIDEO OUTPUT
3
Conector de TV ANTENNA/CABLE IN
8
Conector S-VIDEO
4
Conector OUT TO TV
9
TELEPHONE JACK
5
Conector AUDIO OUTPUT (R)
10
CABLE DE CORRIENTE AC
Tabla 2: Conexiones del panel posterior - modelo GCEB0 de Receptor Digital de DIRECTV
1
Conector SATELLITE IN
9
Conector AUDIO OUTPUT (L)
2
Conector de antena RF REMOTE
10
Conector de VIDEO OUTPUT
3
Conector óptico DIGITAL AUDIO OUTPUT
11
Conector de VIDEO OUTPUT
4
Conector OUT TO TV
12
Conector S-VIDEO
5
Conector de TV ANTENNA/CABLE IN
13
Conector del cable VCR CONTROL
6
Conector AUDIO OUTPUT (R)
14
TELEPHONE JACK
7
Conector AUDIO OUTPUT (R)
15
CABLE DE CORRIENTE AC
8
Conector AUDIO OUTPUT (L)
GAEB0
AUDIO/VIDEO
APPARATUS
52BN
E212442
This product and service are covered by one or more U.S. patents.
Other U.S. and foreign patents pending. See Users Manual for details.
2
1
3
4
5
6
7
8
9
10
Complies with part 68, FCC rules. FCC registration #: 5L4MUL-36248-
DT-E; REN=0.2B
This device complies with Part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
2
1
3
4
6
8 10
GCEB0
AUDIO/VIDEO
APPARATUS
52BN
E212442
This product and service are covered by one or more U.S. patents.
Other U.S. and foreign patents pending. See Users Manual for details.
14
15
7
9
11
12
13
5
Complies with part 68, FCC rules. FCC registration #: 5L4MUL-36248-
DT-E; REN=0.2B
This device complies with Part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
Manufactured under license from Dolby Laboratories. Dolby and the
double-D symbol are trademarks of Dolby Laboratories. Confidential
unpublished works. 1992-1997 Dolby Laboratories. All rights reserved.
