Getting started
Attach the antenna cable You can configure your system several ways, depending on what additional
components (such as a VCR, DVD player, or A/V receiver) you select. For now,
however, use the simplest configuration to check your antenna and cabling.
• Ensure that the DIRECTV Receiver is not plugged into an electrical outlet.
• Attach the RG-6 coaxial antenna cable to the
SATELLITE IN connector on
the back of the DIRECTV Receiver. Refer to the appropriate figure below
and on the next page.
GAEB0
AUDIO/VIDEO APPARATUS 52BN E212442
This product and service are covered by one or more U.S. patents.
Other U.S. and foreign patents pending. See User’s Manual for details.
2 1 3 4 5 6 7 8 9 10
Complies with part 68, FCC rules. FCC registration #: 5L4MUL-36248-
DT-E; REN=0.2B
This device complies with Part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.

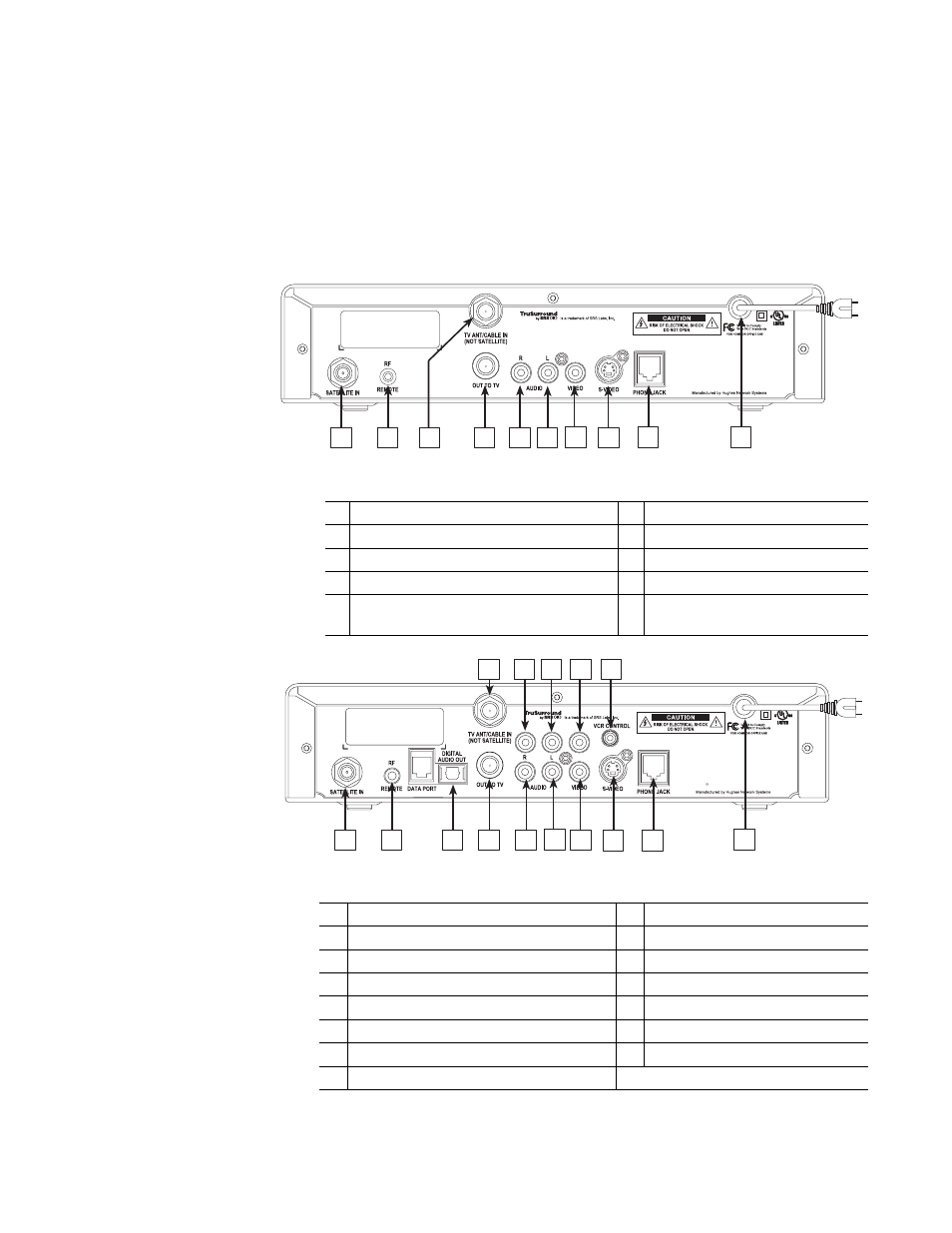

Table 1: Rear panel connections - DIRECTV Receiver model GAEB0
1 SATELLITE IN connector 6 AUDIO OUTPUT (L) jack
2 RF REMOTE antenna jack 7 VIDEO OUTPUT jack
3 TV ANTENNA/CABLE IN connector 8 S-VIDEO jack
4 OUT TO TV connector 9 TELEPHONE JACK
5 AUDIO OUTPUT (R) jack 1
0 AC POWER CORD
2 1 3 4 6 8 10
GCEB0
AUDIO/VIDEO APPARATUS 52BN E212442
This product and service are covered by one or more U.S. patents.
Other U.S. and foreign patents pending. See User’s Manual for details.
14 15
7 9 11
12
13 5
Complies with part 68, FCC rules. FCC registration #: 5L4MUL-36248-
DT-E; REN=0.2B
This device complies with Part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
Manufactured under license from Dolby Laboratories. “Dolby” and the
double-D symbol are trademarks of Dolby Laboratories. Confidential
unpublished works. 1992-1997 Dolby Laboratories. All rights reserved. C
Table 2: Rear panel connections - DIRECTV Receiver model GCEB0
1 SATELLITE IN connector 9 AUDIO OUTPUT (L) jack
2 RF REMOTE antenna jack 10 VIDEO OUTPUT jack
3 DIGITAL AUDIO OUTPUT optical jack 11 VIDEO OUTPUT jack
4 OUT TO TV connector 12 S-VIDEO jack
5 TV ANTENNA/CABLE IN connector 13 VCR CONTROL cable jack
6 AUDIO OUTPUT (R) jack 14 TELEPHONE JACK
7 AUDIO OUTPUT (R) jack 15 AC POWER CORD
8 AUDIO OUTPUT (L) jack
