FIREPLACE INSTALLATION
Continued
FIREPLACE INSTALLATION
Optional Remote Control Installation
WIRING DIAGRAM
OPTIONAL REMOTE CONTROL
INSTALLATION (Model WRC)
Note: If using optional wireless hand-held remote control, the
wall switch must be in the ON position to be operational. The
remote control then becomes the switching mechanism for fire-
place operation.
1.
Open lower louver panel.
2. The WRC model receiver does not require a battery. The re-
ceiver can be installed by first plugging the short extension
cord into the fireplace receptacle. Then plug the receiver unit
into the extension cord. Finally plug the ignition module plug
into the receiver unit (see Figure 45).
3. Activate the remote handset battery by removing the insulat-
ing tab on the back of the handset (see Figure 46). The battery
is included pre-installed.
4. Once the battery is activated the unit is ready to use.
5. Close lower louver panel.
Figure 45 - Installing the WRC Remote Receiver
Fireplace
Receptacle
Remote Control
Receiver
Extension Cord
Ignition
Module Plug
Figure 46 - Installing Battery into Back of Handset
Pull to Remove
Insulation Tab
Battery Cover
12 Volt Battery
Back of
Handset
STEP DOWN
TRANSFORMER
PV
GND
PV/MV
TR
MV
TH
IGN
EV2
INCOMING MAIN
GAS SUPPLY
EV1
GAS LINE TO
BURNER
24V AC
120V AC
INCOMING
120V AC
(FUSE BOX
OR BREAKER)
OFF ON
(SUPPLIED)
WALL SWITCH
GREEN BLACK WHITE
120v, 60Hz, 0.7A
ELECTRICAL RATING:
BLACK
WHITE
GREEN
OPTIONAL
REMOTE
CONTROL

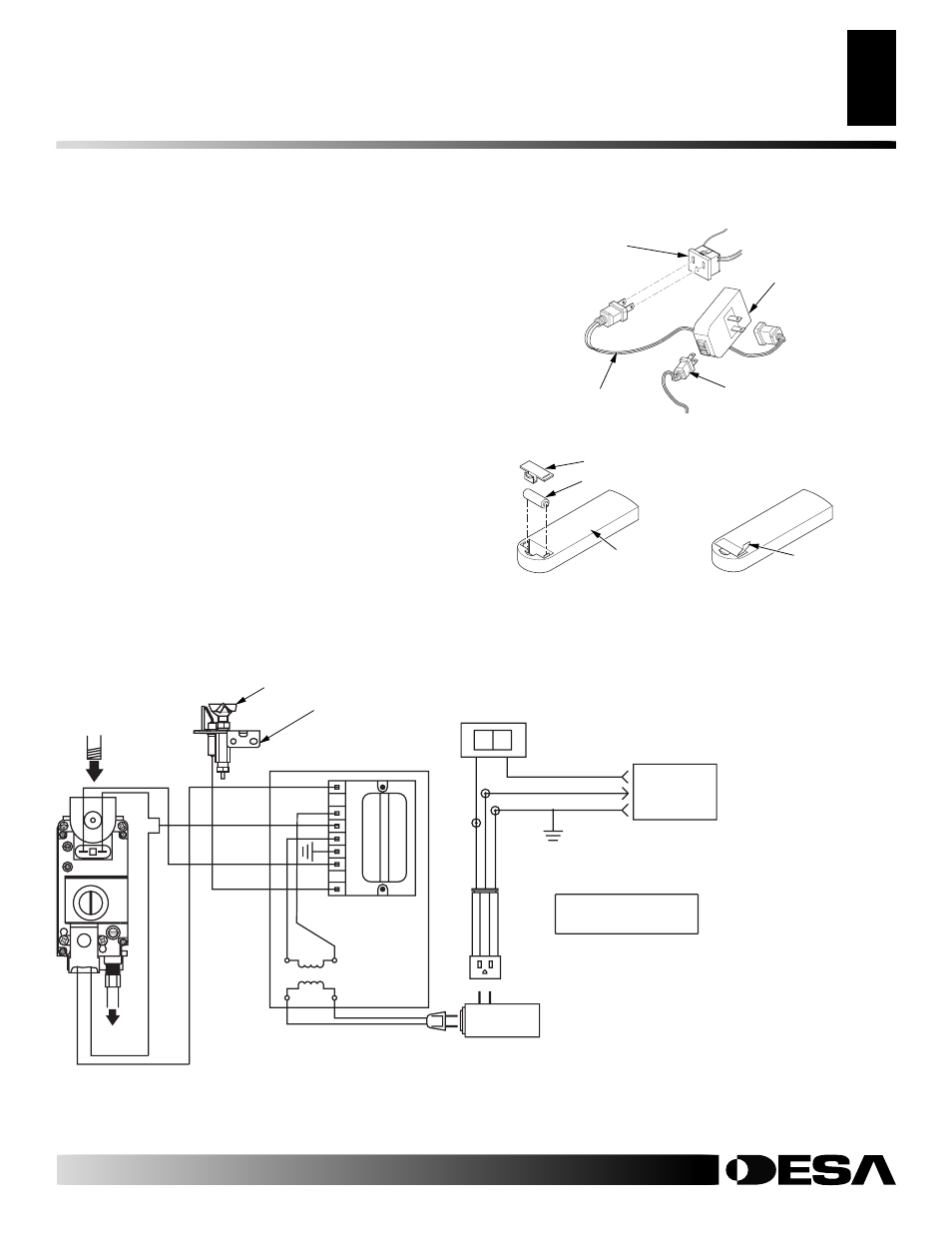

WIRING DIAGRAM
Pilot
Burner
Pilot Gas
Line
(NOT SUPPLIED)
