111924-01C

For more information, visit www.desatech.com

For more information, visit www.desatech.com

16

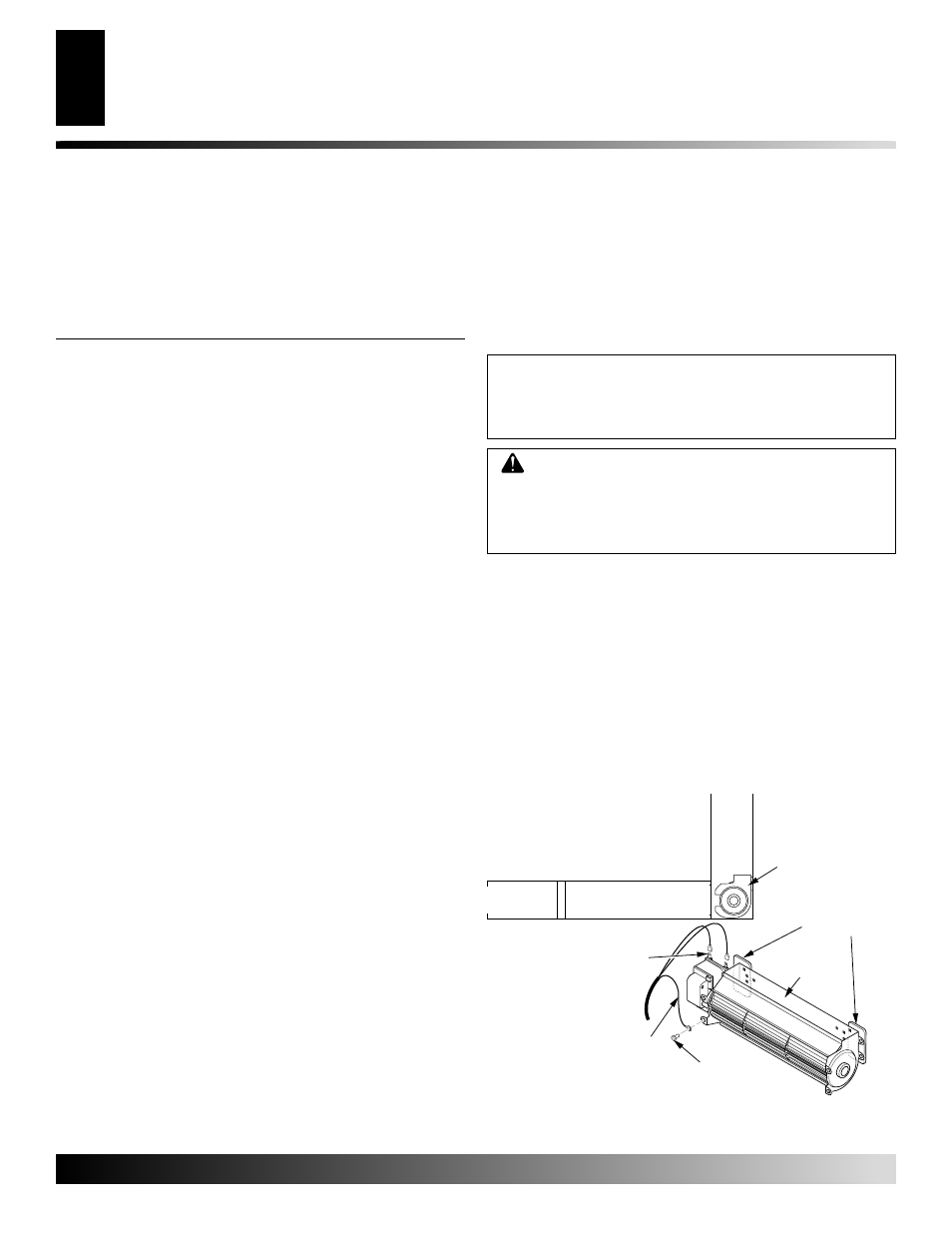

Figure 25 - Blower Model BK

Magnetic Strips

Exhaust
Port

Screw

Green
Ground Wire

Spade Terminals

Side View

Lower Firebox
Cavity

Blower
Location

VENTING INSTALLATION
INSTRUCTIONS

Continued

FIREPLACE INSTALLATION

VENTING INSTALLATION INSTRUCTIONS

Parts Lists for Venting Kits and Components

FIREPLACE INSTALLATION

Check Gas Type
Installing Optional Blower Accessory

Model BK Installation

Follow all instructions provided in the blower accessory kit.
1.

Attach the power cord to the blower motor by firmly pushing the
two female terminals at the end of the power cord onto the two
spade terminals on the blower motor (see Figure 25).

2.

Attach green ground wire from power cord to blower housing
using screw provided (see Figure 25). Tighten screws securely.

3.

Place the blower against the lower rear wall of the firebox outer
wrapper with the exhaust port directed upward. The blower
will fit inside the back opening and be held in position against
the back wall by the magnets (see Figure 25).

INSTALLING OPTIONAL BLOWER
ACCESSORY

NOTICE: If installing blower in an existing fireplace
with gas connections, shut off gas supply and dis-
connect heater from gas supply. Contact a qualified
service person to do this.

WARNING: If there is a duplex electrical outlet

installed in the right side of the bottom of the fireplace
base area, be sure that the electrical power to the outlet
is turned off before proceeding with blower installation.
Failure to do this may result in serious injury.

CHECK GAS TYPE

Use proper gas type for the fireplace unit you are installing. If your
gas supply is not correct, do not install fireplace. See retailer where
you purchased the fireplace for proper fireplace according to your
gas type or to purchase gas conversion kit (see Accessories, page 34).

PARTS LISTS FOR VENTING KITS AND
COMPONENTS
DESA (5/8") Pipe & Vent Kits

Number Description

P58-6

6" Section Double Wall Pipe, Galvanized

P58-12

12" Section Double Wall Pipe, Galvanized

P58-24

24" Section Double Wall Pipe, Galvanized

P58-36

36" Section Double Wall Pipe, Galvanized

P58-48

48" Section Double Wall Pipe, Galvanized

PA58-712 Adjustable 7"-12" Section Double Wall Pipe, Galva-

nized

FPA58-6 6" Duravent Collar to FMI Pipe Adaptor (6" Collar/Pipe

Section)

DPA58-6 6" FMI Collar to Pipe Duravent Adaptor (6" Collar/Pipe

Section)

E58-45

45° Elbow, Galvanized

E58-90

90° Elbow, Galvanized

FSE58-45 45° Starter Elbow, Galvanized (Duravent Collar to

FMI Pipe)

DSE58-45 45° Starter Elbow, Galvanized (FMI Collar to Duravent

Pipe)

VKG-58

Ground Floor Vent Kit

VKB-58

Basement Vent Kit

VKS-58

Snorkel Vent Kit

VKR-58

Roof Vent Kit

VKC-58

Corner Vent Kit

HTK

Horizontal Round Termination Kit

HT-58

Horizontal Round Termination, Galvanized

HTKS-58 Horizontal Square Termination, Kit
HTS-58

Horizontal Square Termination, Galvanized

VT-58

Vertical Round Termination, Galvanized

ST-58-14 14" Snorkel Termination, Galvanized
ST-58-36 36" Snorkel Termination, Galvanized
SC-58

Storm Collar, Galvanized

WF-58

Wall Firestop, Galvanized

RF-58-6

Roof Flashing - 0 to 6/12 Pitch, Galvanized

RF-58-12 Roof Flashing - 6/12 to 12/12 Pitch, Galvanized
VR-58

Vertical Restrictor, Galvanized

S-58

Vinyl Siding Standoff, Galvanized

WS-58

Wall Strap

CS-58

Cathedral Ceiling Support

FP-58

Firestop Plate

SF-58

Stucco Flashing - For use with HTS-5
