Soffit for DCS-IVH-48 Island Vent Hood
Soffit Installation
28
7/8
"
10
7/8
"

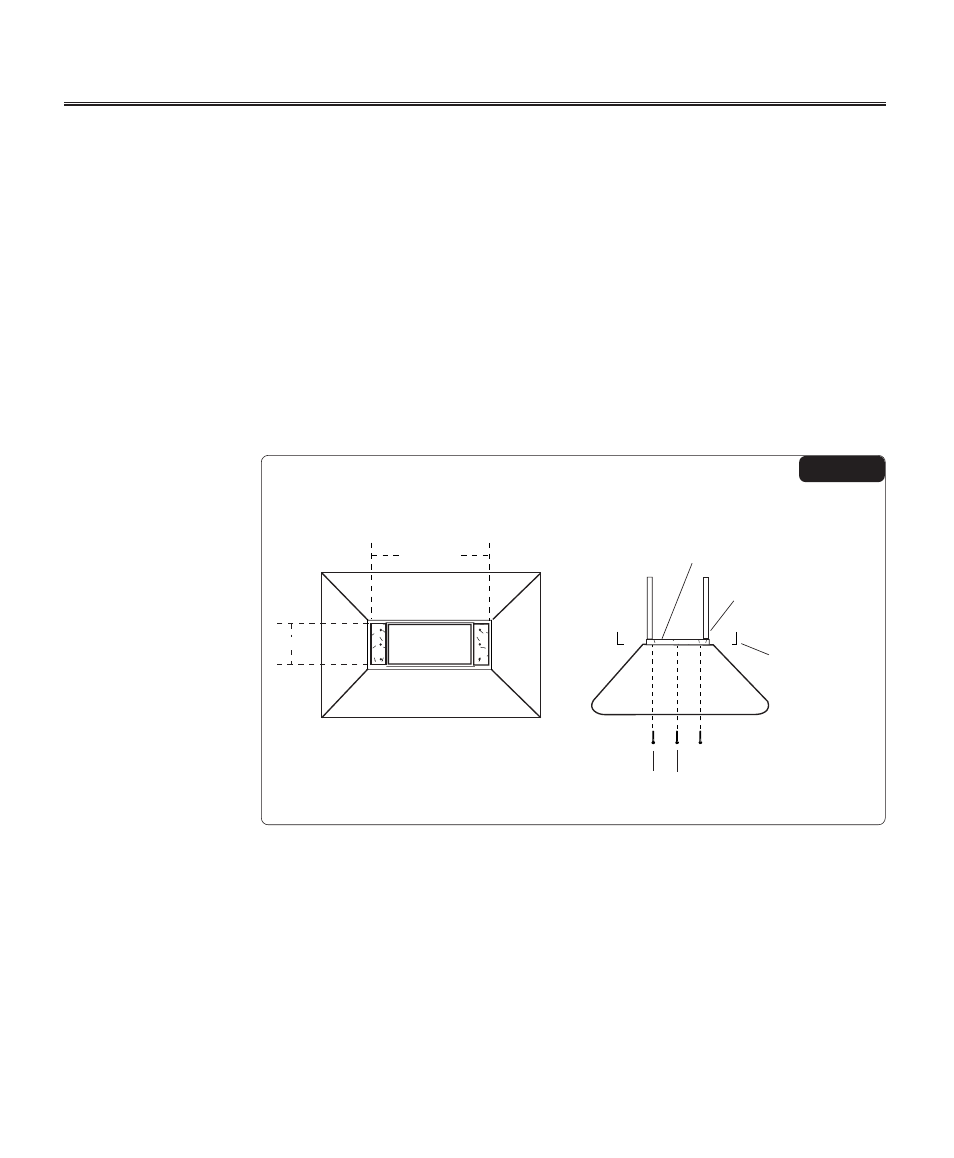

TOP VIEW of DCS-IVH 48
SIDE VIEW for DCS-IVH 48 SOFFIT STRUCTU
1
1/2
" x 3
1/2
" Soffit
3
1/2
"centerline
to centerline measurement
from screw to screw
Wood Structure
1
1/2
" x 3
1/2
" Sof
(4) soffit
brackets
The dimensions given are for a 1/2 " drywa
THE DIMENSIONS GIVEN ARE FOR A 1/2 INCH DRYWALL DUCT COVER.
3) After adequately securing the soffit structure to the ceiling joist,
attach the Island Vent Hood with the 6 mounting screws provided,
figure 2B and 3B shows the location of the mounting screws.
Figure 2B gives soffit dimensions allowing for a 1/2 inch duct cover.
9
FIG.2B
