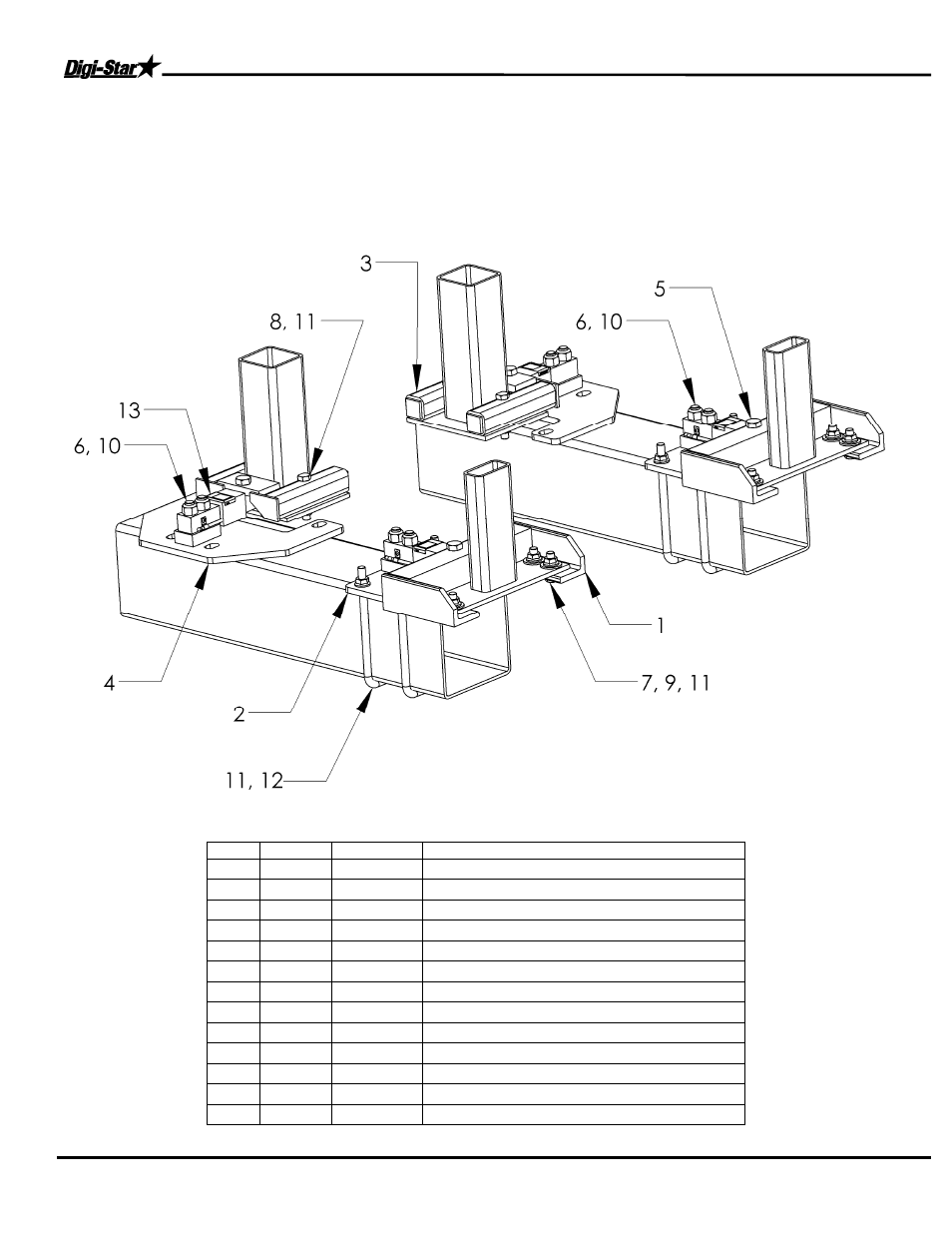

Repair Parts
D3864-US-Rev A
John Deere Planter Scale
7
REPAIR PARTS
406142 Kit – Scale JD1990 CCS Single Rank 30’
406143 Kit – Scale JD1990 CCS Single Rank 30’ (Indicator in cab)
KEY QTY. PART
NO.
DESCRIPTION
1
2
406031
Weld-Top Rear Brkt (JD1990-03)
2
2
406024
Weld-Base Rear Plate (JD1990-07)
3
2
406051
Weld-Top Frt Brkt (JD1990-05)
4
2
406014
Weld-30’ Frt Brkt (JD1990-02)
5
4
406067
Scr – 3/4-16 x 2.0 HHCS ZP Grd 5
6
8
406068
Scr – 3/4-10 x 3.5 HHCS Grd 8 ZP
7
8
405896
Scr – 5/8-11 x 2.0 HHCS Zp Grd 5
8
4
406071
Scr – 5/8-11 x 3.5 HHCS Zp Special
9
8
405858
Wash – 5/8 Flat Wide ZP
10
8
405921
Nut – 3/4-10 Top Lock ZP
11
20
406070
Nut – 5/8-11 Top-Lock Flange ZP
12
4
406025
Bolt-U 5/8-11 x 8.75W x 10.0L Grd 8 ZP
13
4
404284
Cell-1.5 Sq DB-21 Ft
