Digi-Star John Deere JD1790 New Style (2004) - Manual (Page 12)

Repair Parts
10 John Deere Planter Scale D3861-US – Rev A

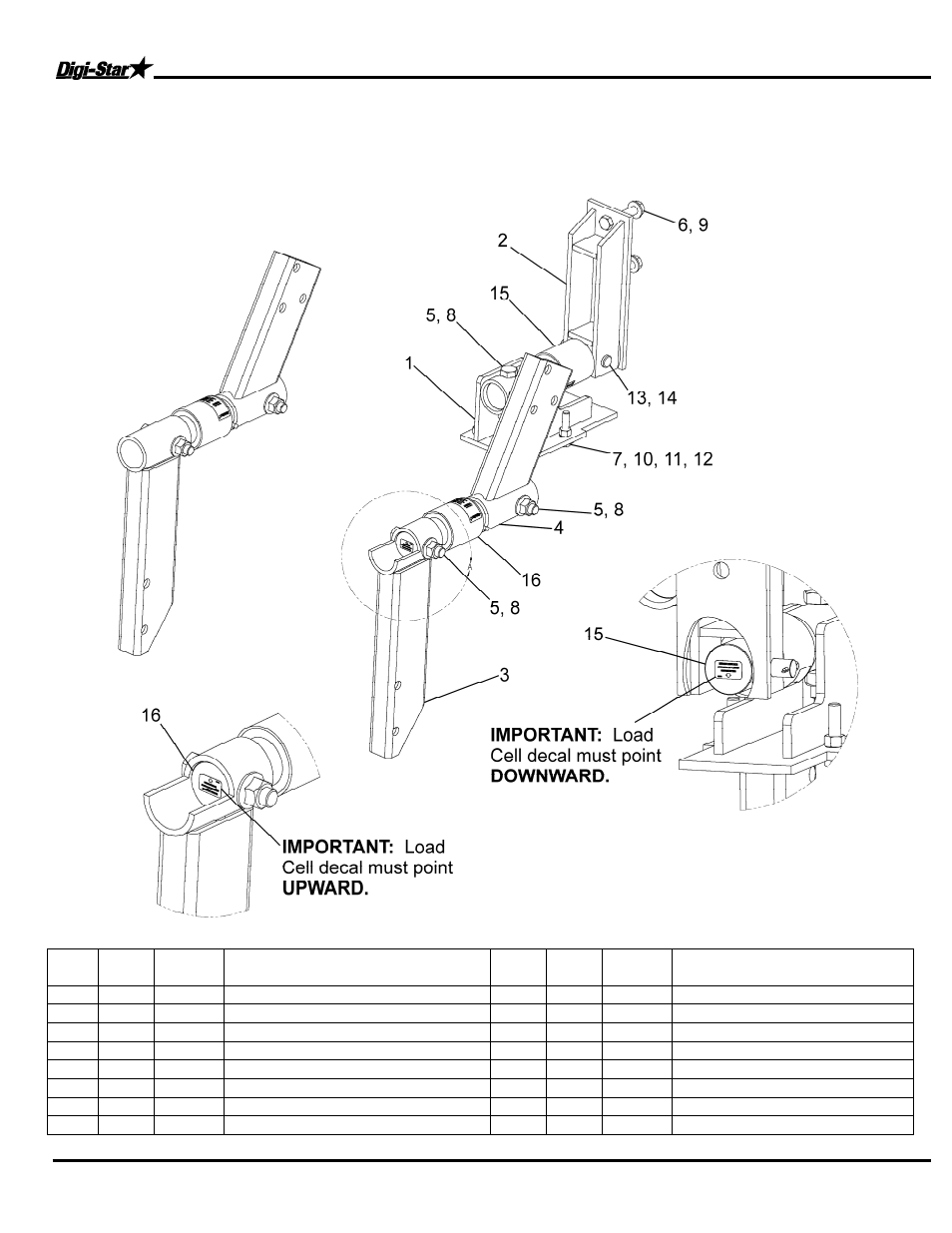

REPAIR PARTS
406133 Kit – Scale JD1790 (2004-present)
406134 Kit – Scale JD1790 (2004-present), Indicator in Tractor Cab
KEY QTY. PART
NO.
DESCRIPTION KEY QTY.
PART
NO.
DESCRIPTION
1 1 406046 Weld-Mid Bottom Brkt (JD1790-04) 9 2 406070 Nut-5/8-11 Top-Lock Flange ZP
2 1 406047 Weld-Mid Top Brkt (JD1790-03) 10 4 405856 Nut-1/2-13 Hex ZP
3 2 405998 Weld-Rear Bottom (JD1790-01) 11 4 405053 Wash-1/2 Flat Wide ZP
4 2 406000 Weld-Top Rear Leg (JD1790-02) 12 4 405855 Wash-1/2 Lock ZP
5 5 405895 SCR-3/4-10 x 4.0 HHCS ZP Grd 5 13 1 406148 Pin-Clevis 3/4 x 4.0 ZP
6 2 406129 SCR-5/8-11 x 3.5 HHCS ZP Grd 5 14 1 405897 Pin-Cotter 5/32 x 1.0 ZP
7 4 405854 SCR-1/2-13 x 2-1/4 HHCS ZP Grd 5 15 1 400061 Cell – 2-1/8 DB Pin H – 4140
8 5 405988 Nut-3/4-10 Top-Lock Flange ZP 16 2 400525 Cell – 2.125 DB
