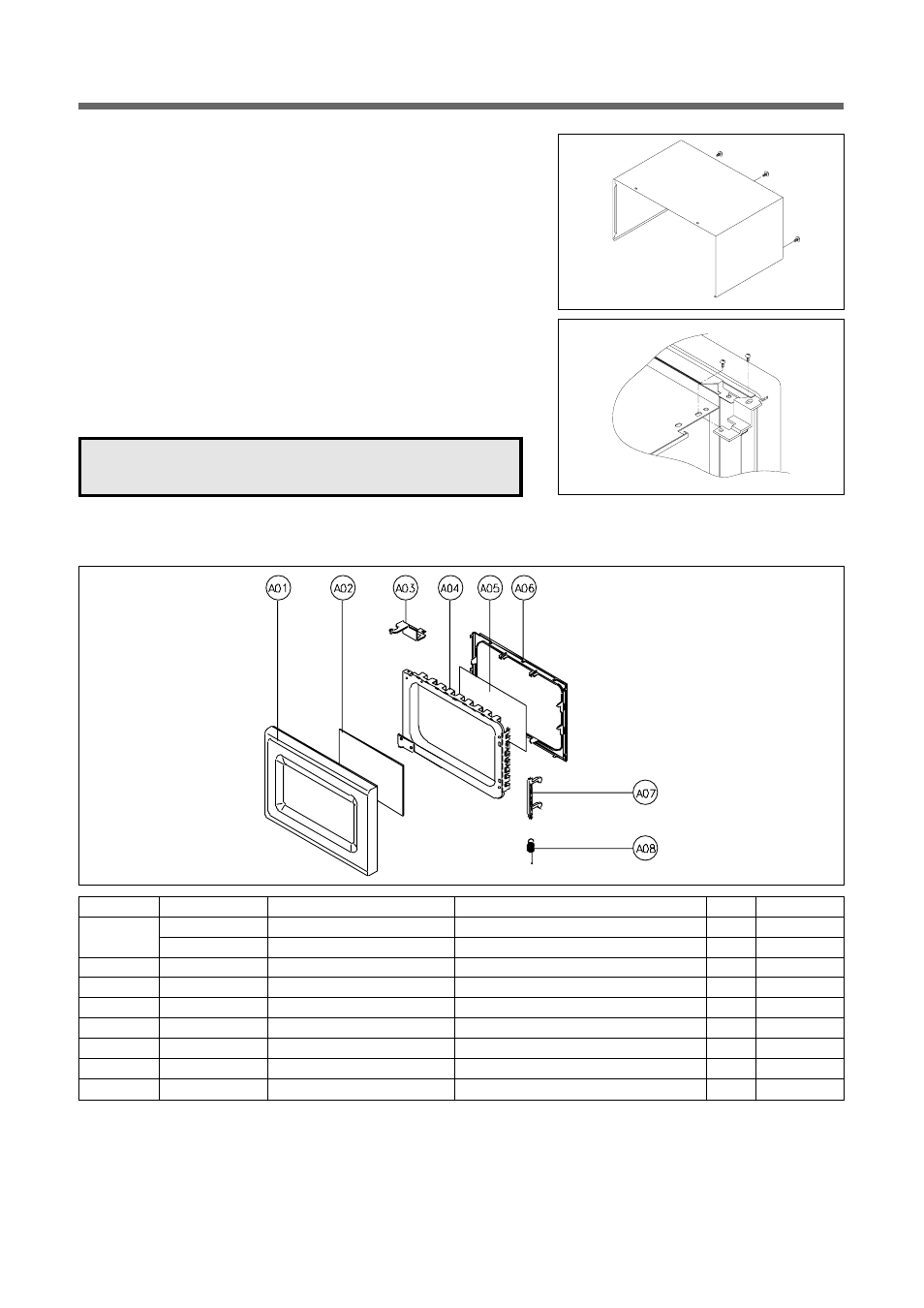

1. To remove cabinet
1) Remove three screws on cabinet back.
2) Push the cabinet backward.
2. To remove door assembly
1) Remove two screws which secure the stopper hinge top.
2) Remove the door assembly from top plate of cavity.
3) Reverse the above for reassembly.
NOTE : After replacing the door assembly, perform a check of
correct alignment with the hinge and cavity front plate.
3. To remove door parts.
REF NO. PART CODE PART NAME DESCRIPTION Q’TY REMARK
A01 3512203880 FRAME DOOR PP SI83C 1 KOR-63D7
3512205200 FRAME DOOR PP SI83C 1 KOR-63F7
A02 3517007300 BARRIER-SCREEN *O PET T0.125 1
A03 3515204100 STOPPER HINGE *T AS KOR-63150S 1
A04 3511705500 DOOR WELD ASSY KOR-61150S 1
A05 3517002800 BARRIER SCREEN *I PE T0.1 1
A06 3512300200 GASKET DOOR PP 1
A07 3513100700 HOOK POM 1
A08 351501300 SPRING HOOK PW-1 1
✔ Caution:
In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the
latest parts information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr)
