10

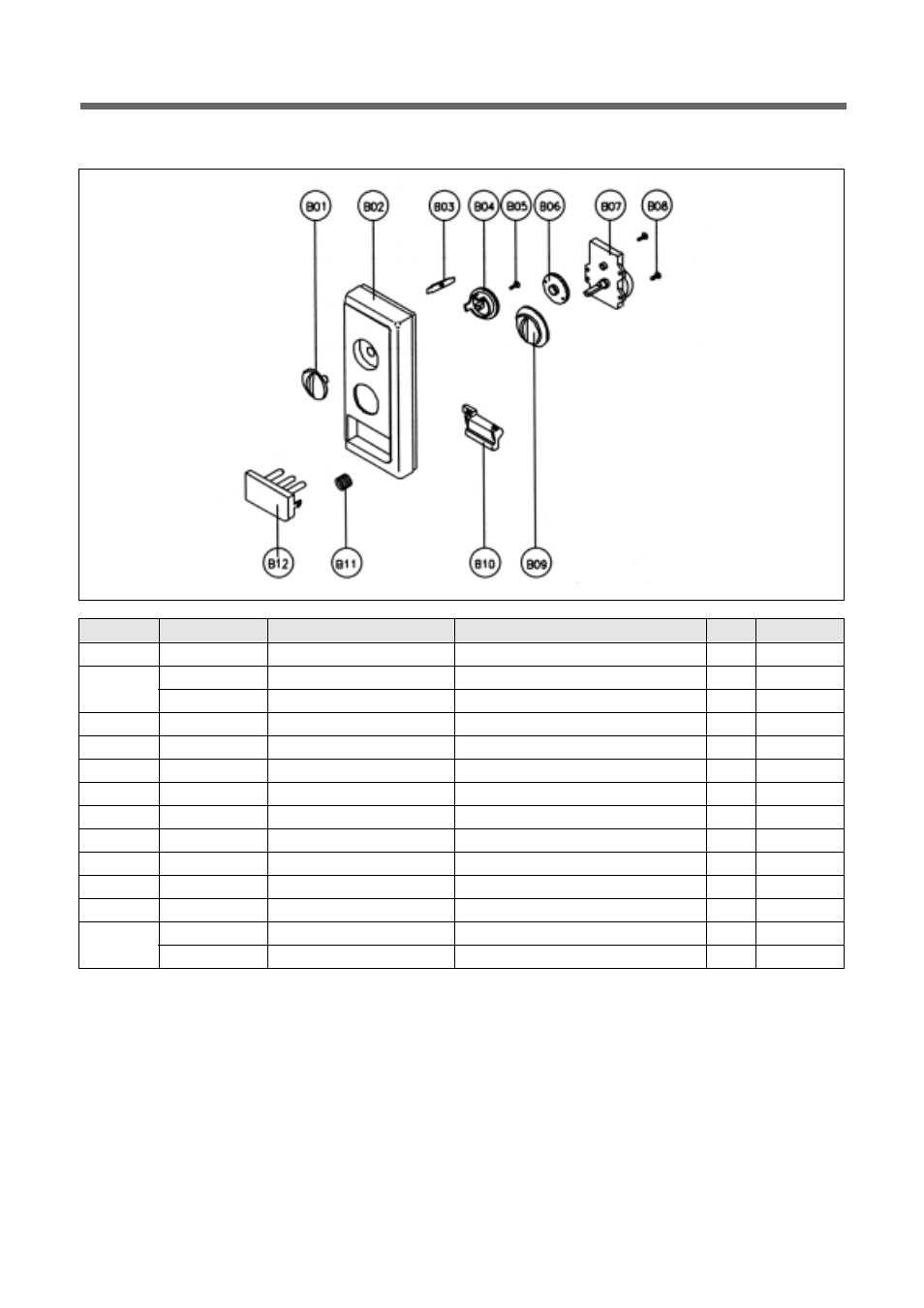

5. To remove control panel parts.
1) Remove the screw which secure the control panel, push up two snap fits and draw forward the control panel assembly.
2) Remove the door open lever from the control panel.
3) Remove four screws which secure the timer assembly.
4) Remove the timer assembly.
5) Pull out the timer knob from the timer.
6) Pull out the timer coupler from the timer.
7) Remove the screw which secure the V.P.C coupler.
8) Pull out the V.P.C. coupler, V.P.C knob and flat spring from the control panel.
9) Remove door open button and button spring from the control panel.
10) Reverse the above steps for reassembly.
REF NO. PART CODE PART NAME DESCRIPTION Q’TY REMARK
B01 3513405510 KNOB VPC ABS XR-401 H-2938 1
B02 3516725300 CONTROL-PANEL ABS SG-0760D SG-175 1 (KOR-63D7)
3516725350 CONTROL-PANEL ABS SG-0760D SG-175 1 (KOR-63F7)
B03 3515101600 SPRING FLAT SUS 301 T0.5 1
B04 3517400510 COUPLER VPC KNOB POM 1
B05 7122401211 SCREW TAPPING T2S TRS 4*12 MFZN 1
B06 3517400400 COUPLER TIMER POM 1
B07 3518204300 TIMER KN35MKD 15U-P 1
B08 7122401211 SCREW TAPPING T2S TRS 4*12 MFZN 2
B09 3513405410 KNOB ABS XR-401 H-2938 1
B10 3513702710 LEVER DOOR OPEN PP 1
B11 441G430171 SPRING BUTTON SWP DIA. 0.7 1
B12 3516906940 BUTTON DOOR OPEN ABS SG-0760D SG-175 1 (KOR-63D7)
3516906950 BUTTON DOOR OPEN ABS SG-0760D SG-175 1 (KOR-63F7)
✔ Caution:
In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the
latest parts information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr)
