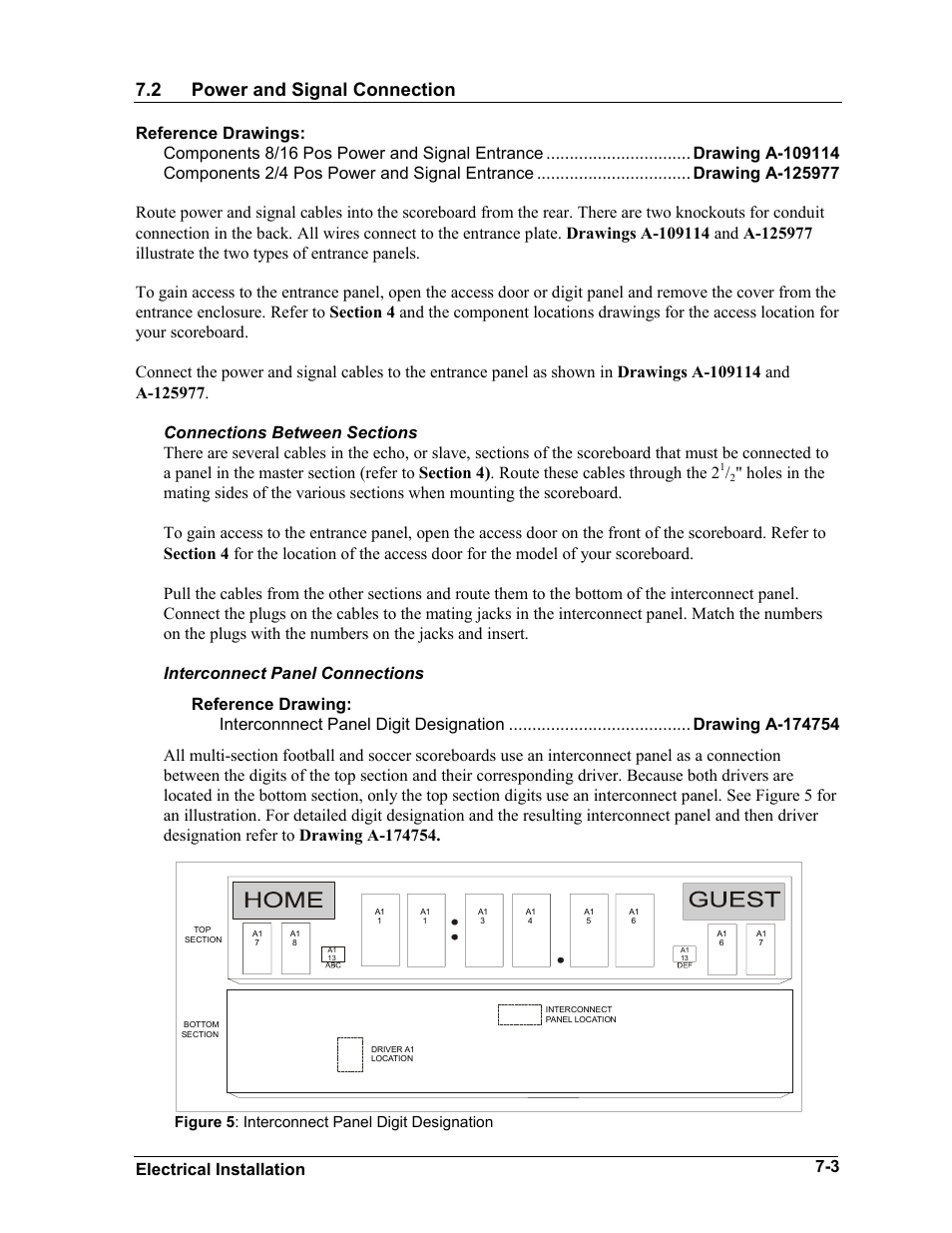

2 power and signal connection, Electrical installation 7-3 – Daktronics BA-1518 User Manual
Page 34
Text mode
Original mode
2 power and signal connection, Electrical installation 7-3 | Daktronics BA-1518 User Manual | Page 34 / 152
